8
3

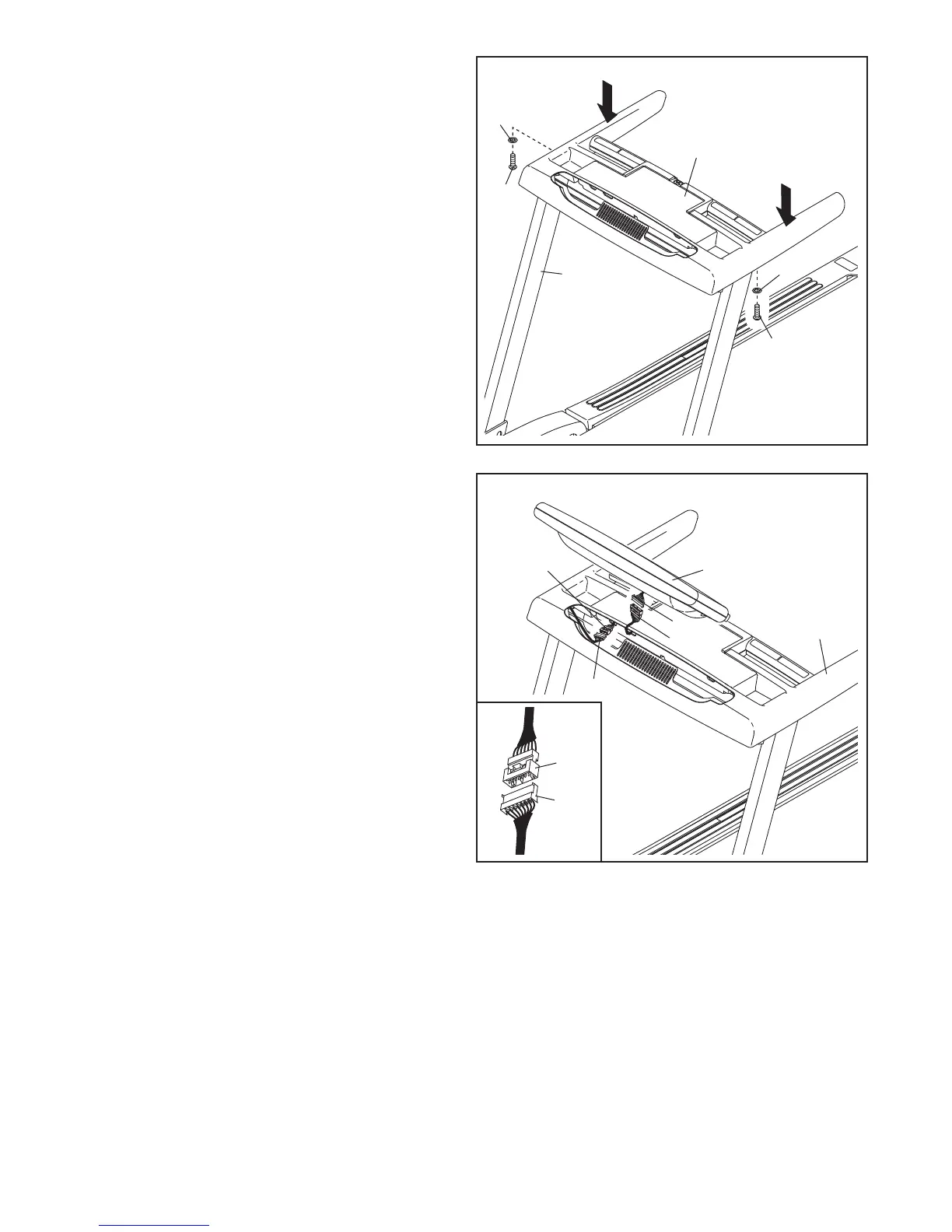

. Make sure the handrail assembly is resting on
the Uprights (86). If necessary, press down gen-
t
ly on the handrail assembly in the locations
shown.
Attach the handrail assembly to the Uprights
(
86) with two 3/8" x 1 1/4" Patch Bolts (2) and
two 3/8" Star Washers (4). Start both Patch
Bolts before tightening either of them.
2
3
2
4. Have a second person hold the Console (103)
near the handrail assembly. Connect the Upright
Wire (87) to the handrail assembly wire (A). See
the inset drawing. The connectors should
slide together easily and snap into place. If
they do not, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN YOU TURN ON THE POWER.
Make sure that the Upright Wire and the
handrail assembly wire have connectors that are
the same size.
Connect the other handrail assembly wire (B) to
the console wire (C). Insert the connectors and
the excess wire into the handrail assembly.
4
86
Handrail
Assembly
4
4
Handrail
Assembly
A
C
B
87
103
87
A
To Next Page
