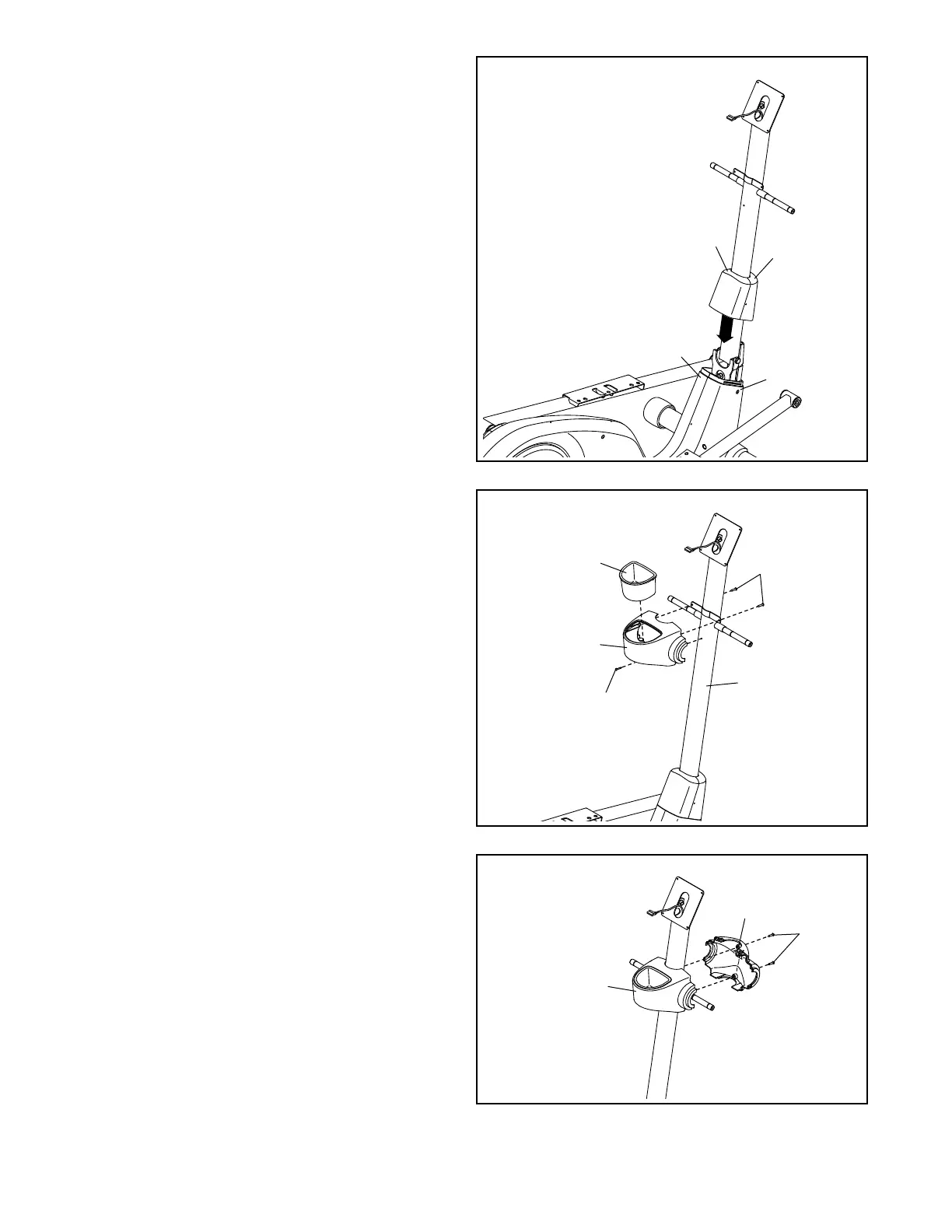

5. Identify the Rear Shield Cover (27) and the Front
Shield Cover (28), and orient them as shown.
Slide the Rear and Front Shield Covers (27, 28)
downward, but do not press them onto the
Left and Right Shields (30, 31) yet.
5
2
25
25
26
78
78
78
24
27
28
6
6. Attach the Rear Upright Cover (25) to the Upright
(2) with three M4 x 16mm Screws (78); start all
the Screws, and then tighten them.
Then, insert the Accessory Tray (24) into the
Rear Upright Cover (25).
30
31
7
7. Orient the Front Upright Cover (26) so that the
word “UP” is at the top.
Attach the Front Upright Cover (26) to the
Rear Upright Cover (25) with two M4 x 16mm
Screws (78).
