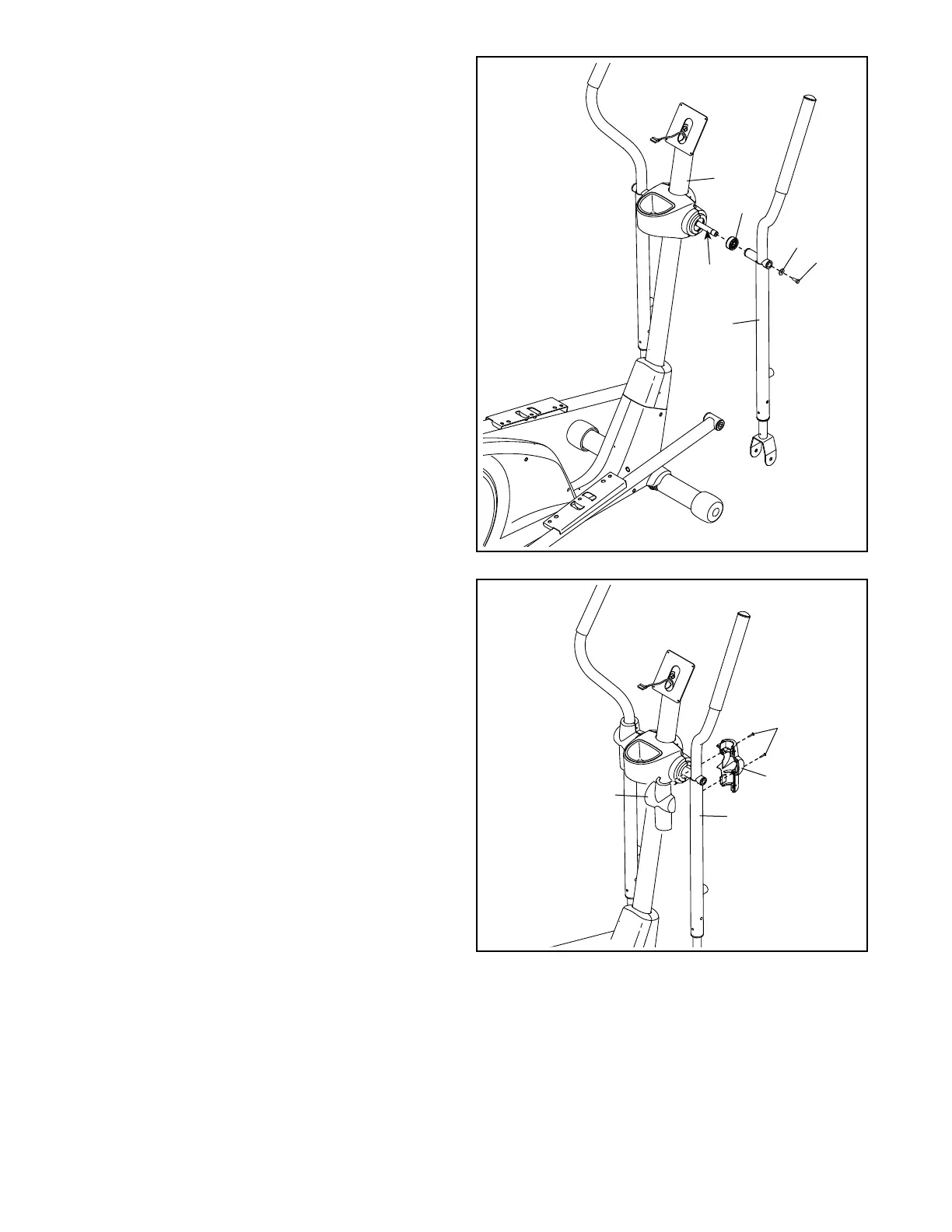

8. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the axles on the Upright (2).
Next, slide a Pivot Spacer (55) onto the right
axle on the Upright (2).
Then, identify the Right Upper Body Arm (10),
orient it as shown, and slide it onto the right axle
on the Upright (2).
Attach the Right Upper Body Arm (10) with an
M8 x 20mm Screw (84) and an M8 Washer (83).
Repeat this step on the other side of the
elliptical.
9
9. Identify the Right Rear Arm Cover (20) and the
Right Front Arm Cover (21), and orient them as
shown.
Press the Right Rear and Front Arm Covers
(20, 21) together around the Right Upper Body
Arm (10), and attach them with two M4 x 16mm
Screws (78). Tip: Attach the lower Screw first,
and then attach the upper Screw.
Repeat this step on the other side of the
elliptical.
