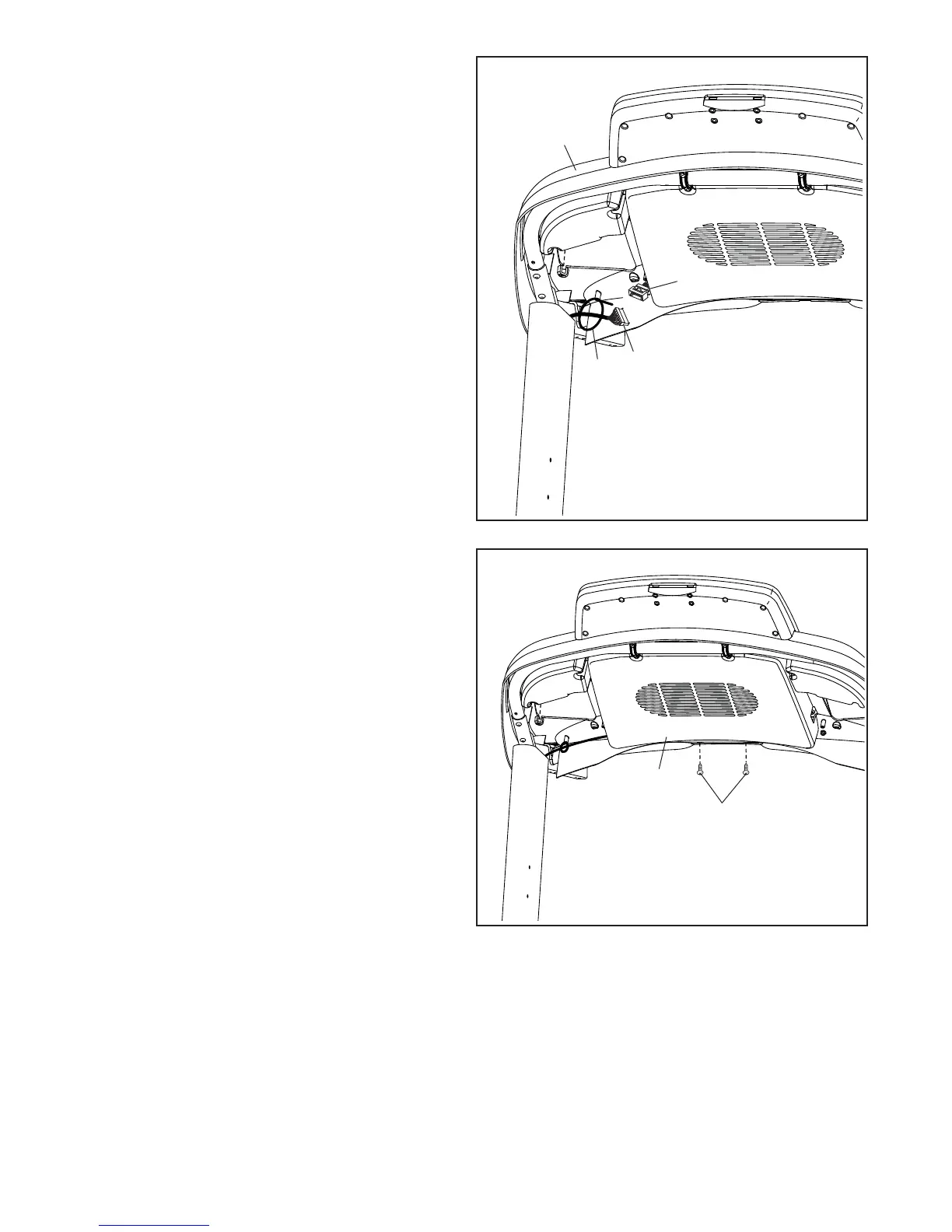

10. Insert the Upright Wire (81) through the indicated
looped tie (I) on the console assembly (F).
See the inset drawing. Connect the Upright
Wire (81) to the console wire (J). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
Pull the tie (I) tight around the Upright Wire (81)
and cut off the end of the tie.
10
I
J
F
81
11. Tighten two #8 x 1" Screws (50) into the bot-
tom of the console assembly (F) in the location
shown.
11
50
F
To Next Page
