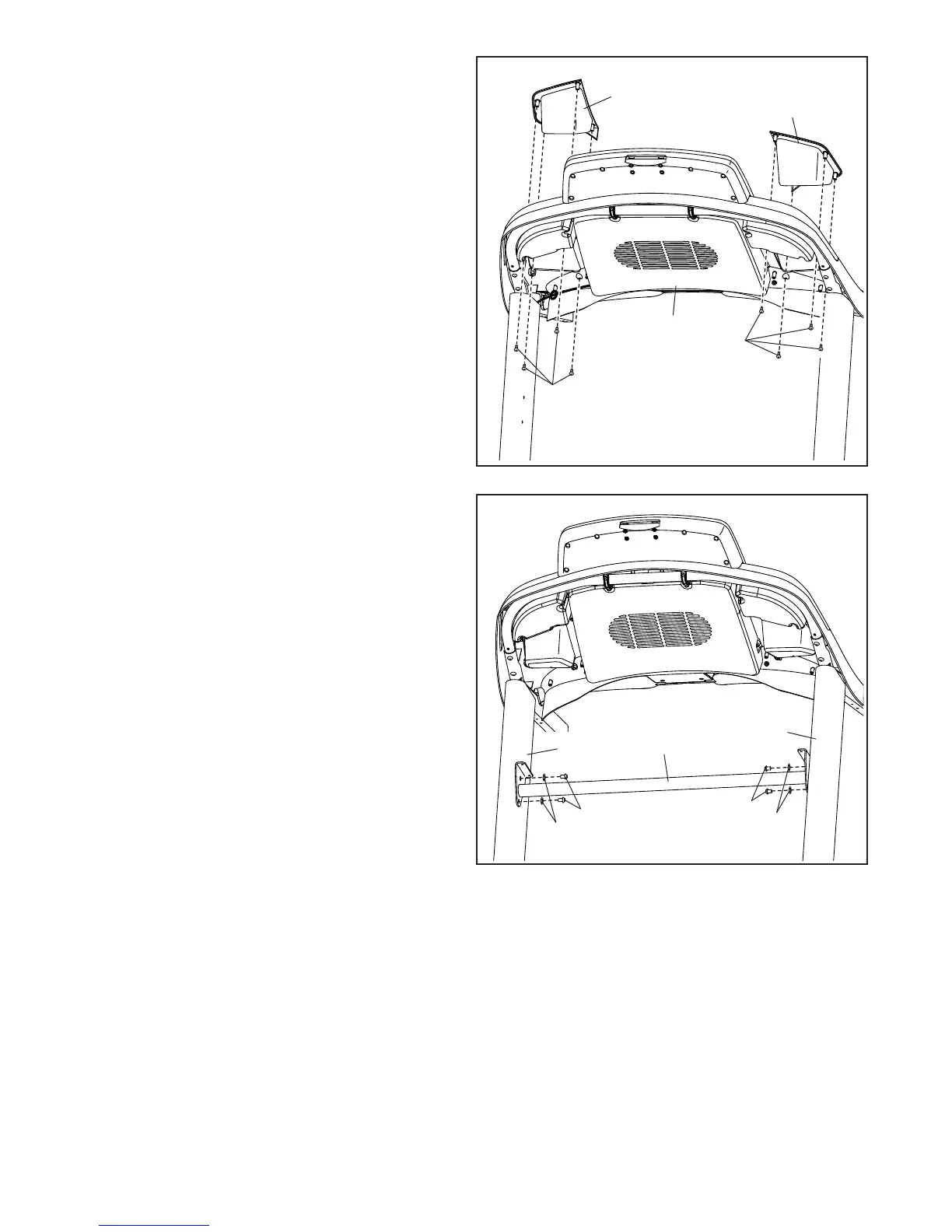

12. Identify the Right and Left Trays (34, 36).
Attach the Trays (34, 36) to the Console Base
(64) with eight #8 x 1/2" Screws (1); do not
overtighten the Screws.
13. Carefully slide the Upright Crossbar (58)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (31) that you removed in step 5,
and four 5/16" Star Washers (11); start all four
Screws, and then tighten them.
13
89
58
11
11
31
31
90
To Next Page
