Pro-Form XP 115 User Manual

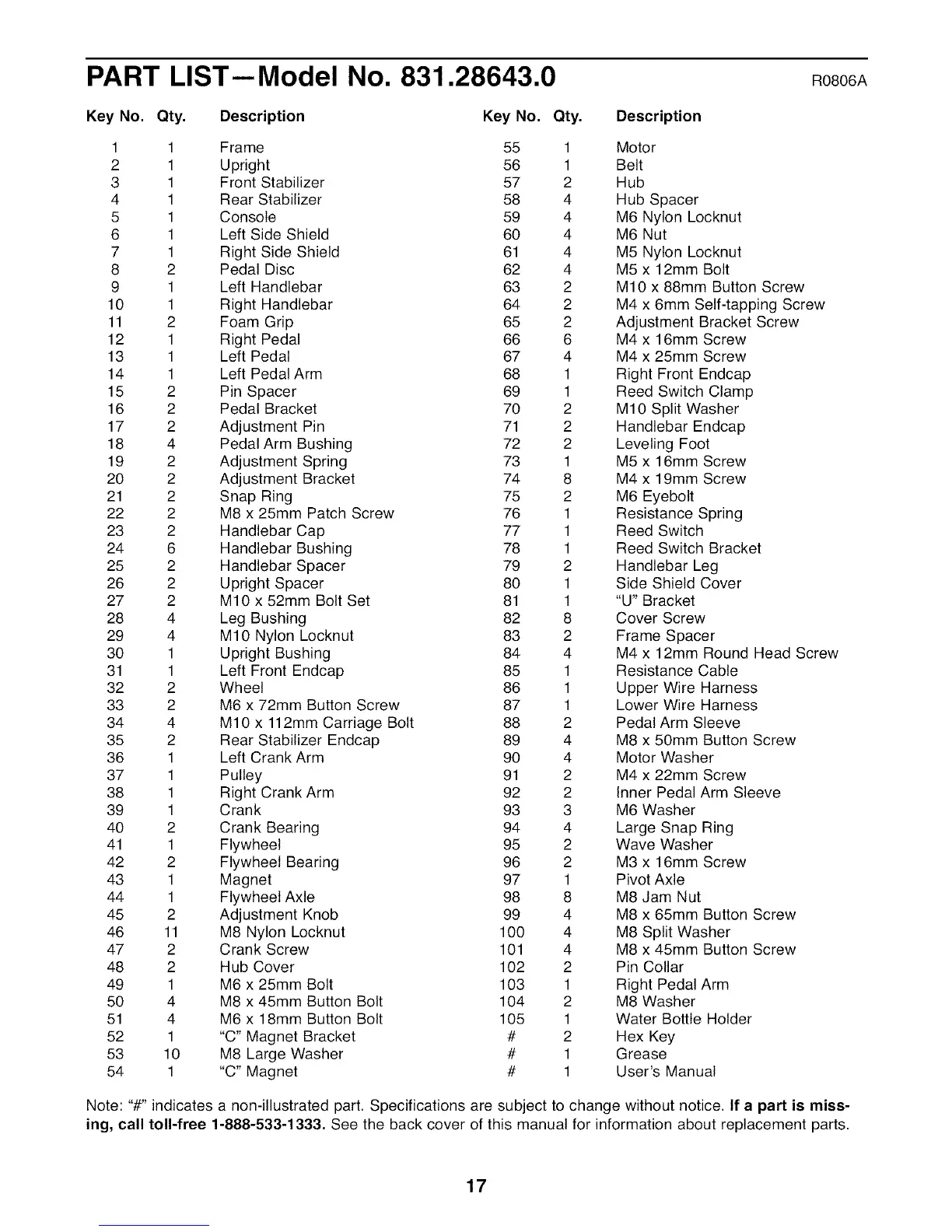

PART LIST--Model No. 831.28643.0 ROBO6A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 55 1 Motor
2 1 Upright 56 1 Belt
3 1 Front Stabilizer 57 2 Hub
4 1 Rear Stabilizer 58 4 Hub Spacer
5 1 Console 59 4 M6 Nylon Locknut
6 1 Left Side Shield 60 4 M6 Nut
7 1 Right Side Shield 61 4 M5 Nylon Locknut
8 2 Pedal Disc 62 4 M5 x 12mm Bolt
9 1 Left Handlebar 63 2 MIO x 88mm Button Screw
10 1 Right Handlebar 64 2 M4 x 6mm Self-tapping Screw
11 2 Foam Grip 65 2 Adjustment Bracket Screw
12 1 Right Pedal 66 6 M4 x 16mm Screw
13 1 Left Pedal 67 4 M4 x 25mm Screw
14 1 Left Pedal Arm 68 1 Right Front Endcap
15 2 Pin Spacer 69 1 Reed Switch Clamp
16 2 Pedal Bracket 70 2 M10 Split Washer
17 2 Adjustment Pin 71 2 Handlebar Endcap
18 4 Pedal Arm Bushing 72 2 Leveling Foot
19 2 Adjustment Spring 73 1 M5 x 16mm Screw
20 2 Adjustment Bracket 74 8 M4 x 19mm Screw
21 2 Snap Ring 75 2 M6 Eyebolt
22 2 M8 x 25mm Patch Screw 76 1 Resistance Spring
23 2 Handlebar Cap 77 1 Reed Switch
24 6 Handlebar Bushing 78 1 Reed Switch Bracket
25 2 Handlebar Spacer 79 2 Handlebar Leg
26 2 Upright Spacer 80 1 Side Shield Cover
27 2 MIO x 52mm Bolt Set 81 1 "U" Bracket
28 4 Leg Bushing 82 8 Cover Screw
29 4 MIO Nylon Locknut 83 2 Frame Spacer
30 1 Upright Bushing 84 4 M4 x 12mm Round Head Screw
31 1 Left Front Endcap 85 1 Resistance Cable
32 2 Wheel 86 1 Upper Wire Harness
33 2 M6 x 72mm Button Screw 87 1 Lower Wire Harness
34 4 M10 x 112mm Carriage Bolt 88 2 Pedal Arm Sleeve
35 2 Rear Stabilizer Endcap 89 4 M8 x 50mm Button Screw
36 1 Left Crank Arm 90 4 Motor Washer
37 1 Pulley 91 2 M4 x 22mm Screw
38 1 Right Crank Arm 92 2 Inner Pedal Arm Sleeve
39 1 Crank 93 3 M6 Washer
40 2 Crank Bearing 94 4 Large Snap Ring
41 1 Flywheel 95 2 Wave Washer
42 2 Flywheel Bearing 96 2 M3 x 16mm Screw
43 1 Magnet 97 1 Pivot Axle
44 1 Flywheel Axle 98 8 M8 Jam Nut
45 2 Adjustment Knob 99 4 M8 x 65mm Button Screw
46 11 M8 Nylon Locknut 100 4 M8 Split Washer
47 2 Crank Screw 101 4 M8 x 45mm Button Screw
48 2 Hub Cover 102 2 Pin Collar
49 1 M6 x 25mm Bolt 103 1 Right Pedal Arm
50 4 M8 x 45mm Button Bolt 104 2 M8 Washer
51 4 M6 x 18mm Button Bolt 105 1 Water Bottle Holder
52 1 "C" Magnet Bracket # 2 Hex Key
53 10 M8 Large Washer # 1 Grease
54 1 "C" Magnet # 1 User's Manual
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. If a part is miss-
ing, call toll-free 1-888-533-1333. See the back cover of this manual for information about replacement parts.
17

Pro-Form XP 115 Specifications

General

Brand	Pro-Form
Model	XP 115
Category	Elliptical Trainer
Language	English
