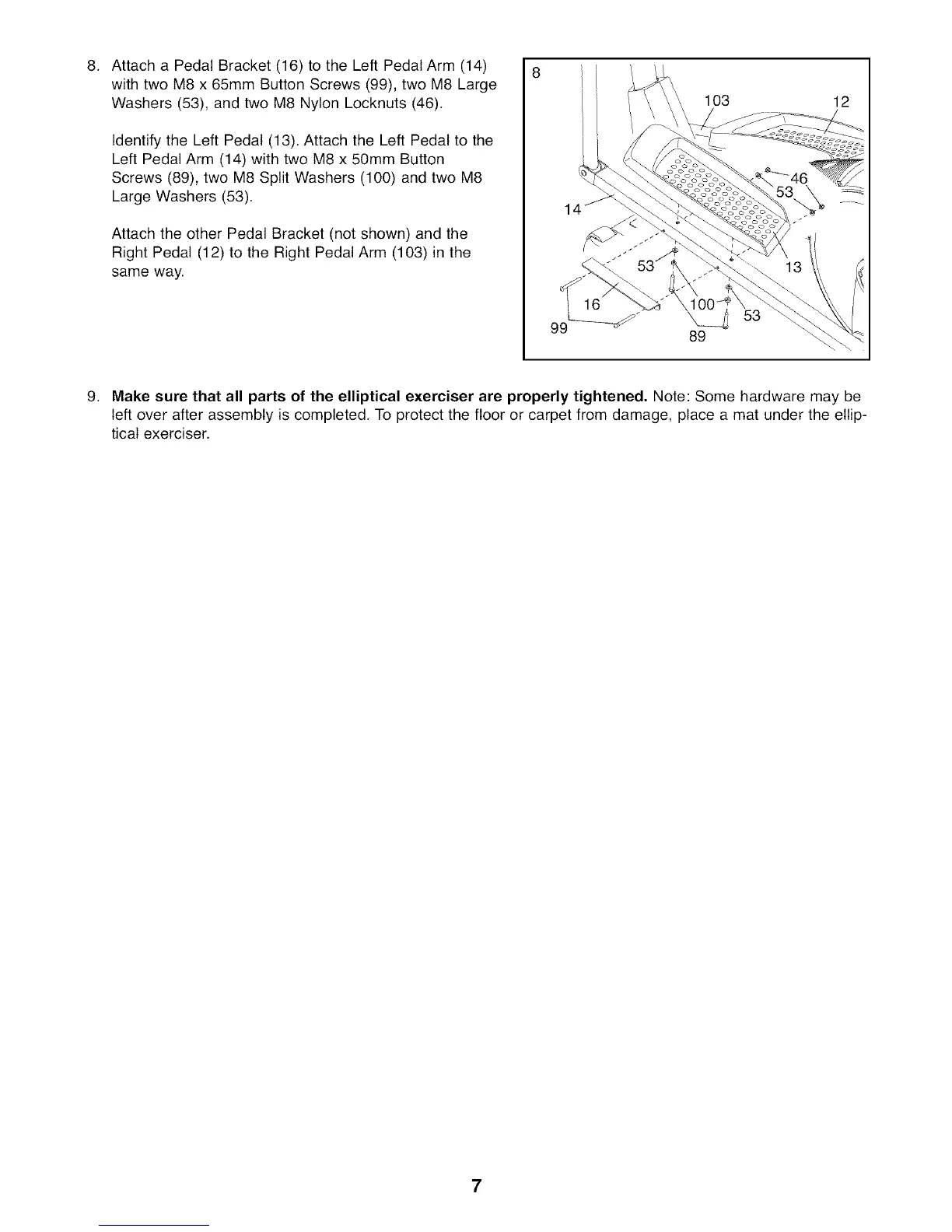

8. 8
Attach a Pedal Bracket (16) to the Left Pedal Arm (14)
with two M8 x 65mm Button Screws (99), two M8 Large
Washers (53), and two M8 Nylon Locknuts (46).
Identify the Left Pedal (13). Attach the Left Pedal to the
Left Pedal Arm (14) with two M8 x 50mm Button
Screws (89), two M8 Split Washers (100) and two M8
Large Washers (53).
Attach the other Pedal Bracket (not shown) and the
Right Pedal (12) to the Right Pedal Arm (103) in the
same way.
99
103
89
12
9. Make sure that all parts of the elliptical exerciser are properly tightened, Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip-
tical exerciser.
7
