Pro-Form XP 400 R User Manual

11

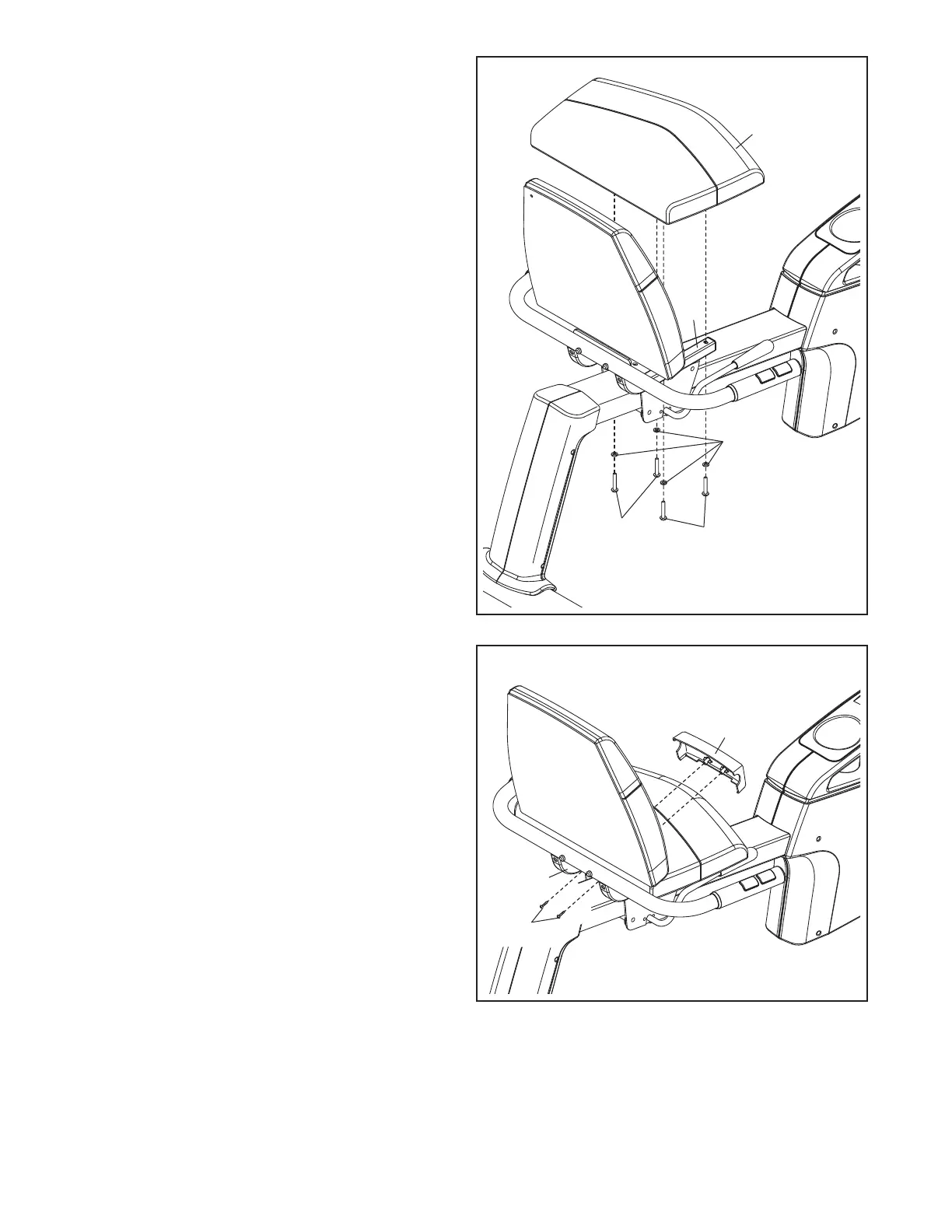

11. Orient the Seat (9) as shown. Attach the Seat to
t
he Seat Carriage (6) with four 1/4" x 38mm
Patch Screws (61) and four M6 Washers (63).
Note: The Patch Screws and the Washers
may be preattached to the underside of the
Seat.
11
9
6
63
61
61
12. Attach the Pulse Bar Cover (15) to the Seat
Carriage (6) with two M4 x 16mm Screws (62).
12
15
62
6

Pro-Form XP 400 R Specifications

General

Brand	Pro-Form
Model	XP 400 R
Category	Fitness Equipment
Language	English
