pro.point 145A - Identification key; Assembly & Installation; INPUT Voltage

8619470 145A MULTI-PROCESS MIG-ARC-TIG WELDER V1.0
12 For technical questions call 1-800-665-8685

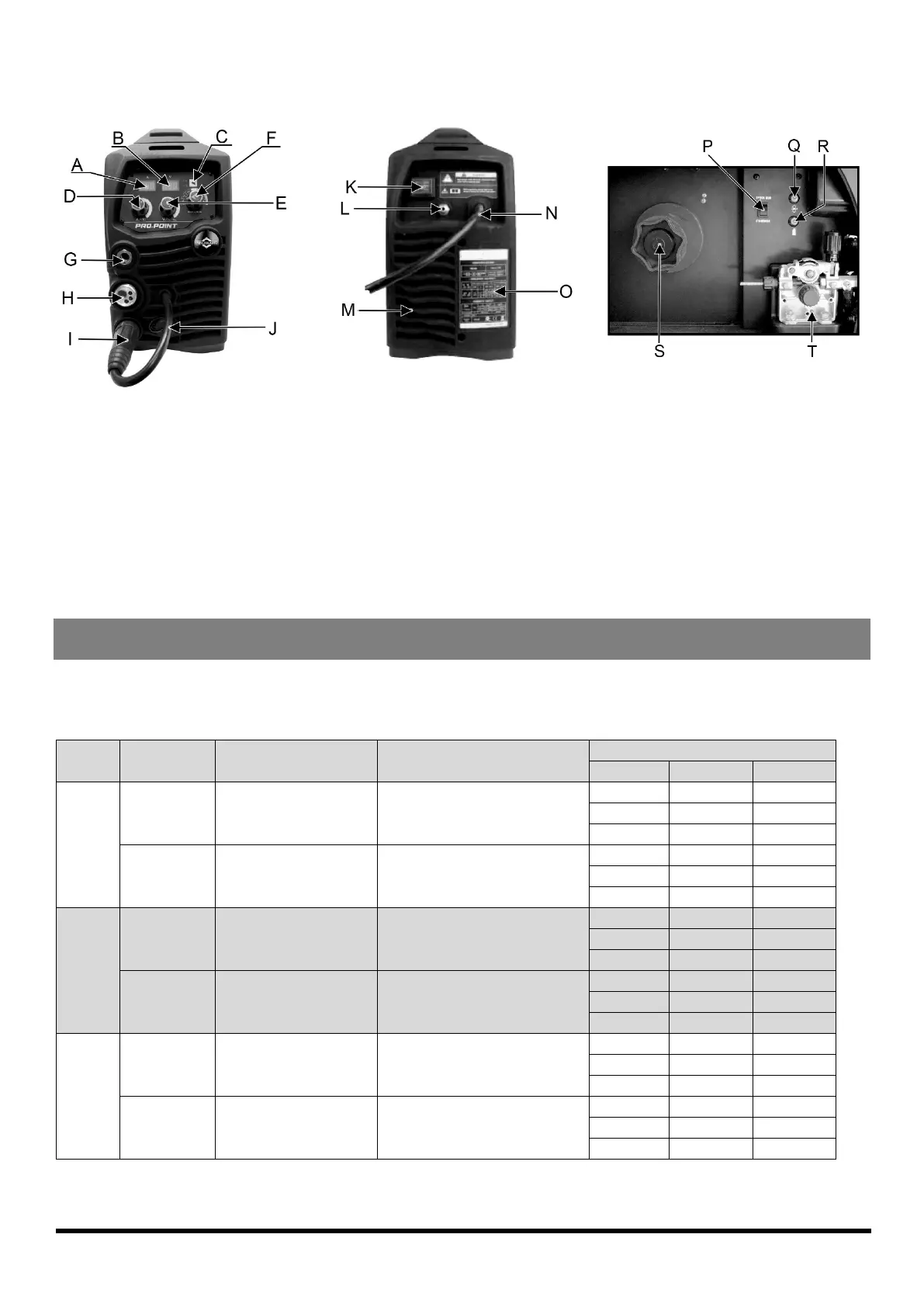

IDENTIFICATION KEY
A Digital Volts Meter
B Digital Amps Meter
C 2T/4T Selector Button
D Wire Speed / Amps Adjustment Knob
E Voltage / Downslope /ARC Force
Adjustment Knob
F Welding Mode / Smart-Set Selector Knob
G Negative Output Terminal (-)
H Euro MIG / TIG Torch Connector
(MIG/MAG)
I Positive Output Terminal (+)
J Dinse Connector
K Power Switch
L Gas Inlet
M Fan
N Input Power Cable
O Data Plate
P Spool Gun/Standard Selector Switch
Q Inch Wire Feed Button
R Gas Check Button
S Spool Holder Assembly
T Wire Feed Assembly
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included Identification Key. Dashed numbers in
parenthesis (Fig. 1-1) refer to specific point of an illustration or image
INPUT VOLTAGE
TYPE
INPUT
RATED CURRENT
OUTPUT
DUTY CYCLE
X
I2
U2
ARC
115V-20A 21.4A
10A/20.4V～80A/23.2V
25%
80A
23.2V
60%
52A
22.1.V
100%
40A
21.6
230V 27A
10A/20.4V～145A/25.8V
25%
145A
25.8V
60%
93.6A
23.7V
100%
72.5A
22.9V
MIG
115V-15A 21.4A
30A/15.5V～80A/18V
25%
80A
18V
60%
52A
16.6V
100%
40A
16V
230V 22.4A
30A/15.5V～145A/21.2V
25%
145A
21.2V
60%
93.6A
18.7V
100%
72.5A
17.6V
TIG
115V 16.5A
10A/10.4V～80A/13.2V
25%
80A
13.2V
60%
52A
12.1V
100%
40A
11.6V
230V 16.5A
10A/10.4V～145A/15.8V
25%
145A
15.8V
60%
93.6A
13.7V
100%
72.5A
12.9V
X = Duty cycle Percentage
I2 = Welding Current
U2 = Secondary Voltage with Welding Current I2
Fig. 1
Fig. 2
Fig. 3
Tabl e 1
