PART III
OPERATING INSTRUCTIONS
WARNING
AFTER TURNING OFF YOUR ICE MAKER YOU
MUST WAIT AT LEAST 3 MINUTES BEFORE
RESTARTING TO AVOID DAMAGE TO THE
COMPRESSOR
YOUR ICE MAKER FEATURES A TOUCH CONTROL
DISPLAY. TO OPERATE THE CONTROLS LIGHTLY
TOUCH THE PANEL WITH YOUR FINGER TIP. THE
CONTROL PANEL ALSO FEATURES AN EASY TO
READ DISPLAY WHICH INFORMS YOU OF THE
STATUS OF THE MACHINE AT ALL TIMES.
DO NOT USE A POINTED OR SHARP OBJECT SUCH
AS A PEN TO OPERATE THE TOUCH PANEL AS THIS
CAN RESULT IN DAMAGE TO THE CONTROLS WHICH
WOULD NOT BE COVERED UNDER WARRANTY.

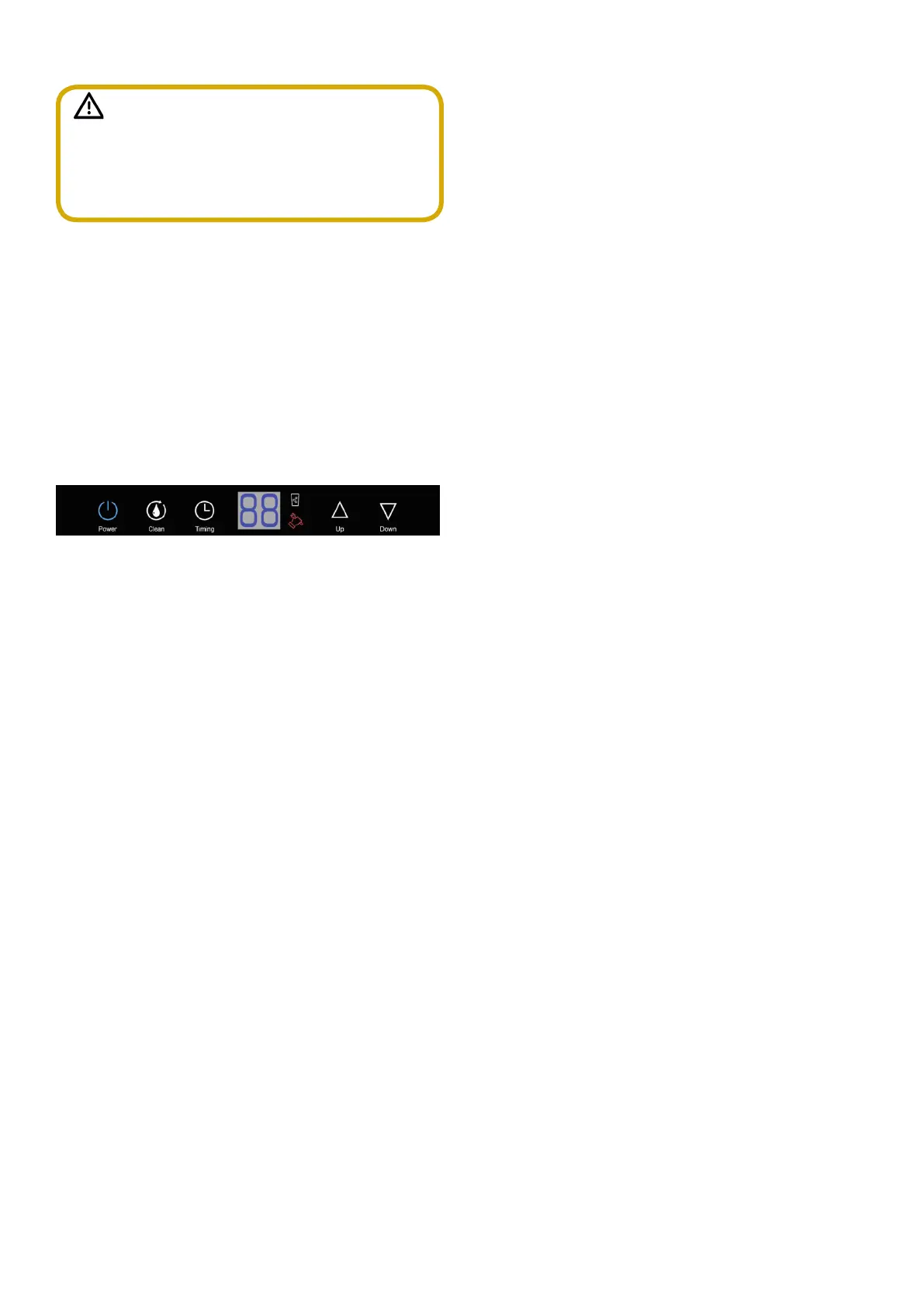

DIGITAL DISPLAY
THE DIGITAL DISPLAY SHOWS THE AMBIENT
TEMPERATURE, ICE MAKING TIME, CLEANING
CYCLE COUNTDOWN TIMER AND DELAY ON-
TIMER FOR THE ICE MAKER DEPENDING ON THE
MODE SELECTED.
THERE ARE 5 ILLUMINATED LED INDICATORS
WHICH SHOW THE ICE MAKER STATUS
RUNNING
ICE FULL
ERROR
TIMER
CLEANING
THERE ARE 5 CONTROL BUTTONS
POWER
CLEANING
TIMING
UP
DOWN
PLEASE REFER TO TABLE 1 FOR A FULL LIST OF
ERROR CODES AND MEANINGS.
ICE PRODUCTION
TO START ICE PRODUCTION PRESS THE ON/
OFF POWER BUTTON. THE POWER LED WILL
ILLUMINATE GREEN AND THE AMBIENT ROOM
TEMPERATURE (°C) WILL BE DISPLAYED IN THE
DIGITAL DISPLAY.
THE COMPRESSOR AND FAN MOTOR WILL THEN
START, AFTER 30 SECONDS THE PUMP WILL BEGIN
TO DISTRIBUTE WATER ACROSS THE EVAPORATOR
AND “00” WILL BE DISPLAYED ON THE DIGITAL
DISPLAY. WHEN THE EVAPORATOR REACHES -5°C
THE ICE MAKER PRODUCTION TIMER WILL START,
THE DIGITAL DISPLAY WILL INCREASE IN 1 MINUTE
INTERVALS UNTIL THE DESIGNATED ICE CYCLE
TIME IS REACHED.
ONCE THE ICE PRODUCTION CYCLE TIME HAS
COMPLETED THE MACHINE WILL SWITCH INTO
HARVEST MODE, THE WATER PUMP WILL STOP
AND THE HOT GAS BYPASS VALVE WILL ENERGISE
TO RELEASE THE ICE FROM THE EVAPORATOR. THE
DIGITAL DISPLAY WILL RETURN TO “00” AND WILL
INCREASE IN 1 MINUTE INTERVALS UNTIL THE
HARVEST CYCLE IS COMPLETE.
AFTER COMPLETING THE HARVEST CYCLE THE
HOT GAS BYPASS VALVE WILL TURN OFF. IF THE
ICE STORAGE BIN IS NOT FULL THE NEXT ICE
PRODUCTION CYCLE WILL BEGIN AFTER A 6
SECOND DELAY.
NOTE: DURING THE FIRST ICE PRODUCTION CYCLE
AFTER INITIAL POWER ON OR ICE BIN FULL THE
WATER PUMP WILL WORK FOR 3 MINUTES AND
THEN SWITCH OFF FOR 6 SECONDS BEFORE
RESTARTING.
TO STOP ICE PRODUCTION PRESS THE ON/OFF
POWER BUTTON AGAIN, THE POWER LED WILL
FLASH AND THE DIGITAL DISPLAY WILL REVERT TO
DISPLAYING THE ROOM AMBIENT TEMPERATURE.
IMPORTANT: PRESSING THE ON/OFF BUTTON
DOES NOT TURN OFF POWER TO THE MACHINE.
THE MACHINE MUST BE ISOLATED FROM THE
MAINS ELECTRICITY BEFORE ANY SERVICE OR
CLEANING IS UNDERTAKEN.
CL200718UM Rev 1.3
5
