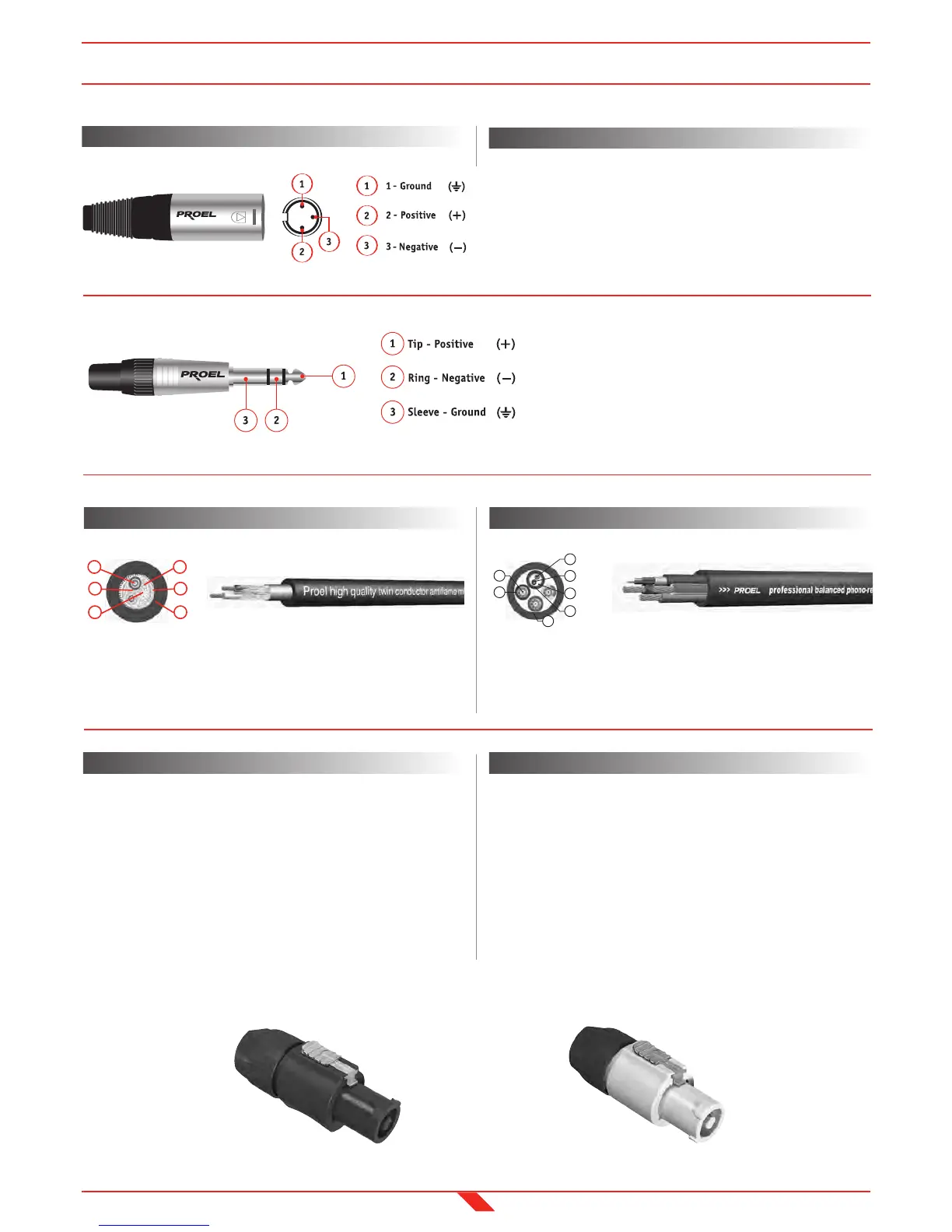

CONNETTORI - ESEMPI DI CONNESSIONE
CONNECTORS - CONNECTION EXAMPLES
CONNETTORI DI SEGNALE AUDIO Italiano
AUDIO SIGNAL CONNECTORS English
CAVI CONSIGLIATI Italiano SUGGESTED CABLES English
NEOS
XLR balanced
2-positive / 3-negative / 1-ground
XLR unbalanced
2-positive / 3-negative connected to 1-ground
JACK balanced
Tip-positive / Ring-negative / Sleeve-ground
JACK unbalanced
Tip-positive / Ring-negative connected
to Sleeve-ground
CONNETTORI DI ALIMENTAZIONE Italiano
PowerCon® NAC3FCA (BLU)
Connettore AC con bloccaggio a 3 conduttori, neutro fase e ter-
ra, tipo A per ingresso alimentazione (MAINS
~ / IN).
PowerCon® NAC3FCB (GRIGIO)
Connettore AC con bloccaggio a 3 conduttori, neutro fase e ter-
ra, tipo B per uscita alimentazione (POWER OUT)
.
Per ulteriori informazioni, relative alla manutenzione e di sicu-
rezza, fare riferimento al capitolo “AVVERTENZE”.
POWER SUPPLY CONNECTORS English
PowerCon® NAC3FCA (BLUE)
AC connector, with 3 conductors, neutral, phase and ground.
Type A for power input (MAINS ~ /IN).
PowerCon® NAC3FCB (GREY)
AC connector, with 3 conductors, neutral, phase and ground.
Type B of power output (POWER OUT).
For more information regarding maintenance and security, plea-
se refer to the SAFETY AND PRECAUTIONS section of this manual.
PowerCon® NAC3FCB (grigio/grey)
PowerCon® NAC3FCA (blu/blue)
1) 3) Bare copper
Power: 16 AWG = 3x29x0.25 mm (1.5 mm
2
)
Signal: 22 AWG = 2x11x0.20 mm (0.35 mm
2
)
2)Power: PVC 60 shore ø 3.0 mm
4)Signal: PVC HT105 ø 1.50 mm
5)Spiral red copper 4x16x0.12 90%
6)CONDUCTORS - PVC 60 shore ø 4.00 mm
7)CABLE - Flexible PVC 60 shore ø 10.80 mm
Com-
plying with CEI 20-20 regulations
3
4
5
6
7
2
1
Proelcode: HPC501
4
5
6
1
2
3
Proelcode: HPC250
1)Tinned copper 22 AWG = 7 x 0,20mm (0,22mm
2
)
2)PE ø 1.36mm
3)Tinned copper 24 AWG = 7 x 0,20mm (0,22mm
2
)
4)Conductors: Spiral cotton filter
5)Cable: Tinned copper braid 6x16x0,10 mm > 95%
6)FLEXIBLE PVC 60 shore ø 6.50 mm
