TYPICAL CONFIGURATIONS

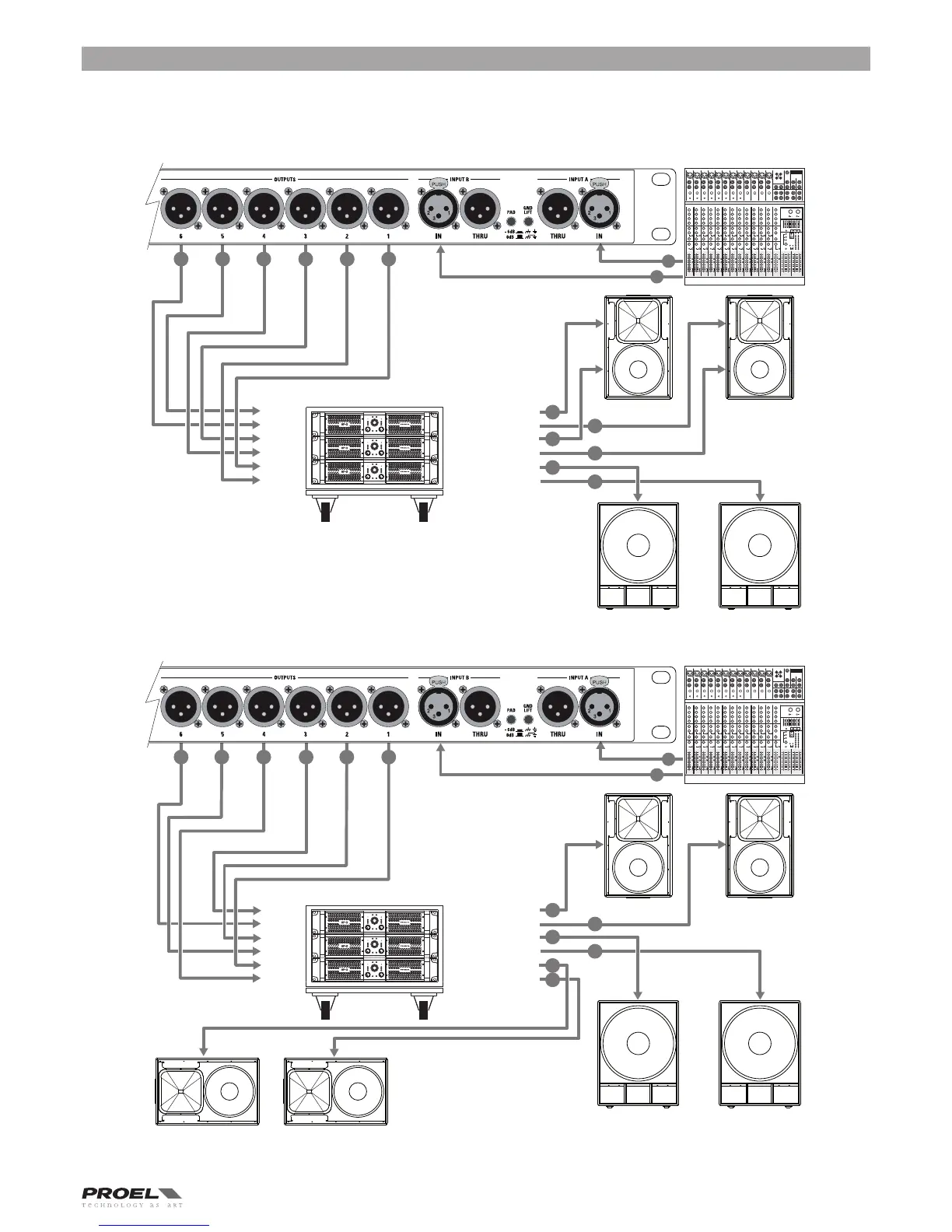

As explained in the ROUTING section, the signal routing from input channels A & B is completely free and and can be assigned to any
output channel. The following figures show some configuration example:
PC260 2 x 3 xover (advanced live or disco system)
PC260 2 x 2 xover + 1 zone (advanced live or disco pub system)
L
R
L
LLL
high mid low
RRR
high mid low
amp1
1
2
1
2
amp2
1
2
1
2
1
2
1
2
amp3
LOW sub out
MID sat out
HIGH sat out
amplifier rack
input output
L
L
L
R
R
R
L
R
L
LLL
high low full
RRR
high low full
amp1
1
2
1
2
amp2
1
2
1
2
1
2
1
2
amp3
FULL aux out
LOW sub out
HIGH sat out
DANCE FLOOR MAIN SYSTEM
LOUNGE BAR SYSTEM
amplifier rack
input output
L
L
L
R
R
R
