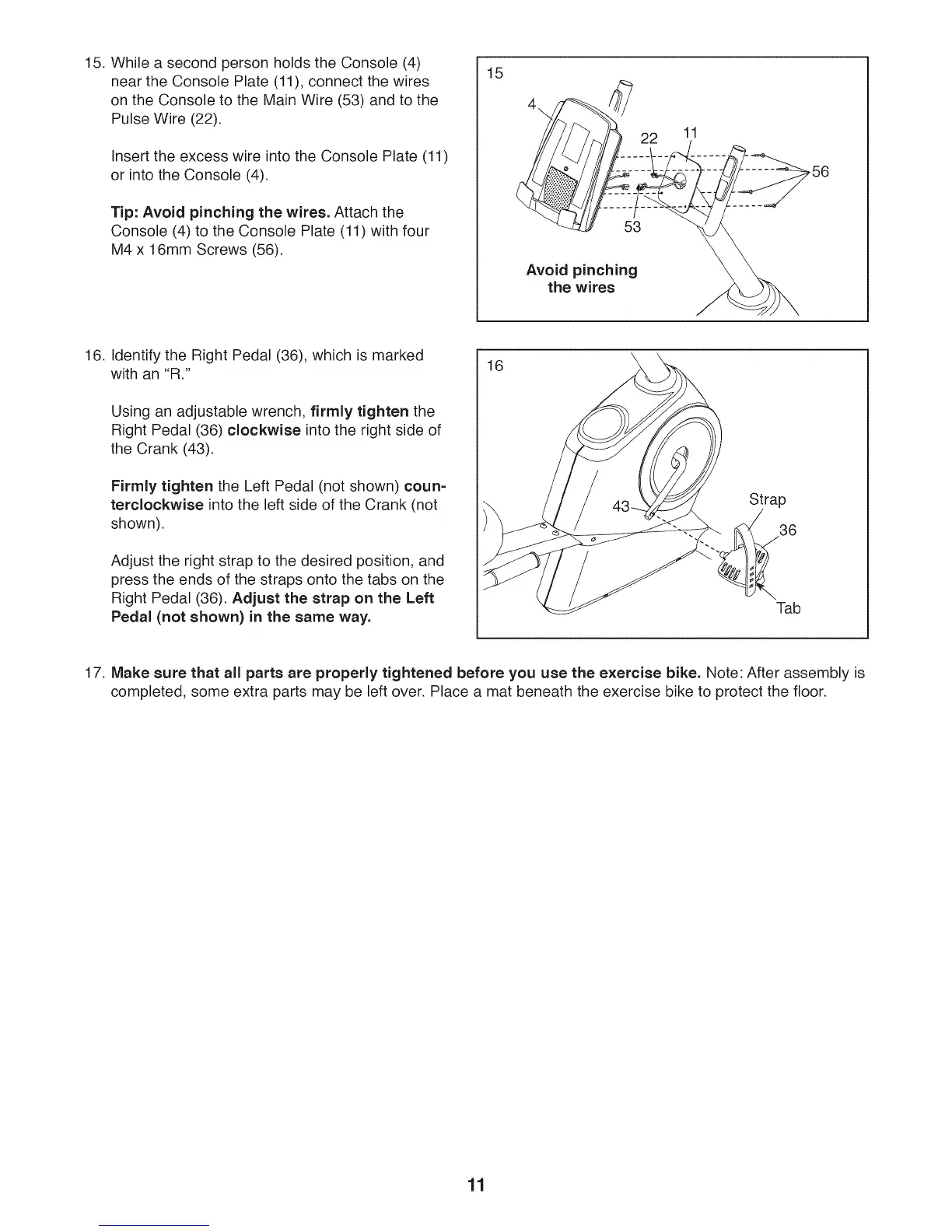

15. While a second person holds the Console (4)
near the Console Plate (11), connect the wires
on the Console to the Main Wire (53) and to the
Pulse Wire (22).
Insert the excess wire into the Console Plate (11)
or into the Console (4).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Console Plate (11) with four
M4 x 16mm Screws (56).
15
22
53
Avoid pinching
the wires
11
16. Identify the Right Pedal (36), which is marked
with an "R."
Using an adjustable wrench, firmly tighten the
Right Pedal (36) clockwise into the right side of
the Crank (43).
Firmly tighten the Left Pedal (not shown) coun-
terclockwise into the left side of the Crank (not
shown).
Adjust the right strap to the desired position, and
press the ends of the straps onto the tabs on the
Right Pedal (36). Adjust the strap on the Left
Pedal (not shown) in the same way.
16
Strap
36
Tab
17. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.
11
