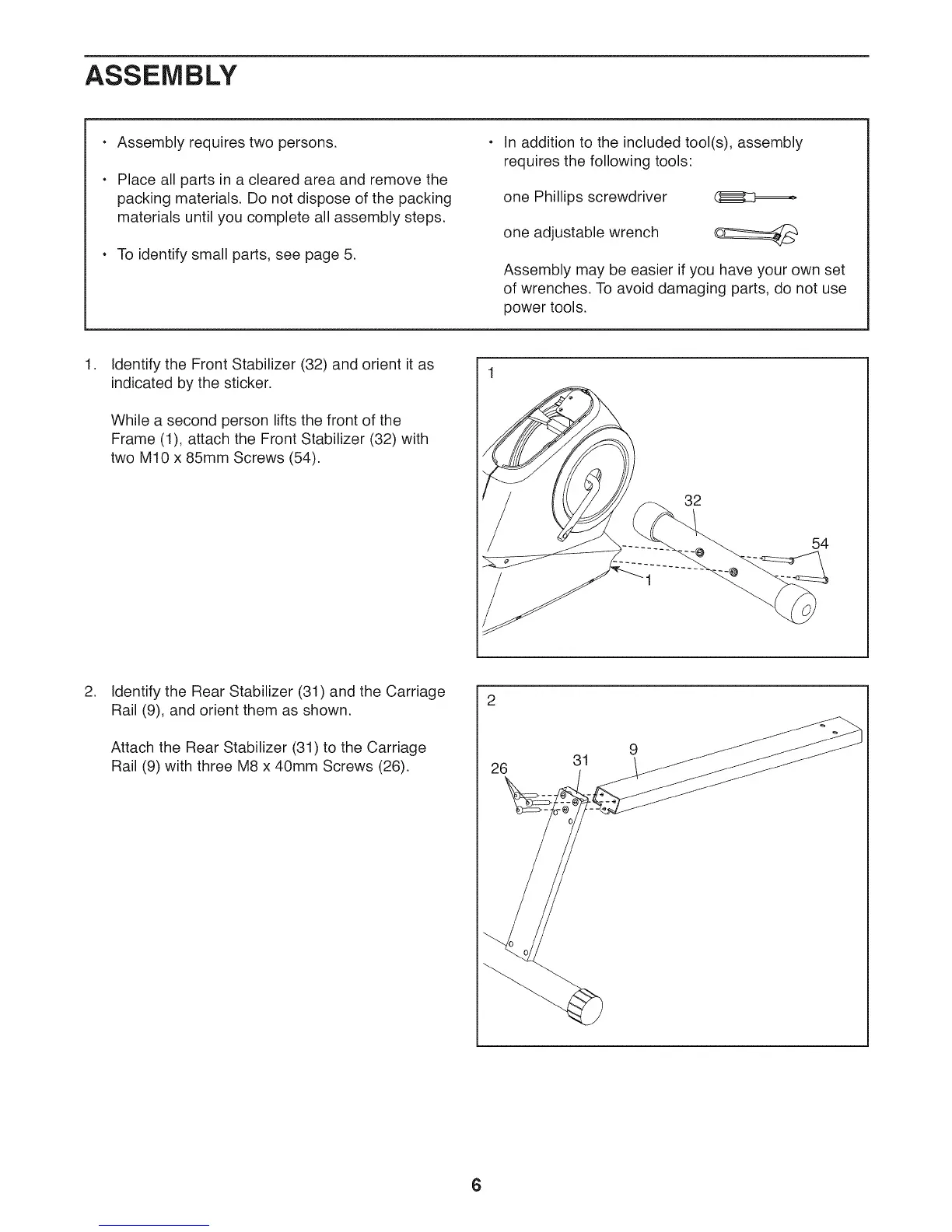

ASSEMBLY
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
.
Identify the Front Stabilizer (32) and orient it as
indicated by the sticker.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (32) with
two M10 x 85mm Screws (54).
32
54
.
Identify the Rear Stabilizer (31) and the Carriage
Rail (9), and orient them as shown.
Attach the Rear Stabilizer (31) to the Carriage
Rail (9) with three M8 x 40mm Screws (26). 26
31
9
6
To Next Page
