ProForm 110 R - Seat Carriage and Frame Assembly

3. 3

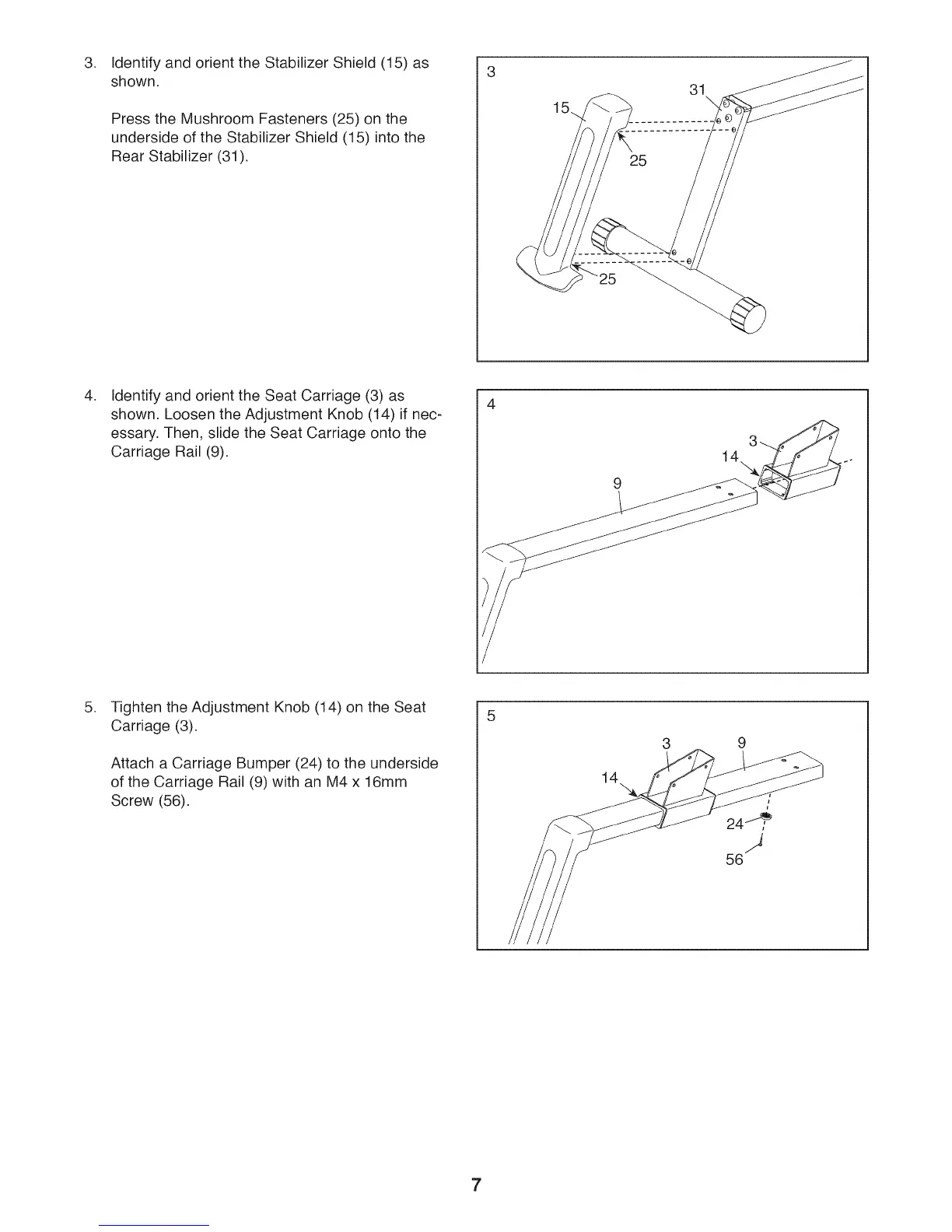

Identify and orient the Stabilizer Shield (15) as
shown.
Press the Mushroom Fasteners (25) on the
underside of the Stabilizer Shield (15) into the
Rear Stabilizer (31).
31
\
.
Identify and orient the Seat Carriage (3) as
shown. Loosen the Adjustment Knob (14) if nec-
essary. Then, slide the Seat Carriage onto the
Carriage Rail (9).
.
Tighten the Adjustment Knob (14) on the Seat
Carriage (3).
Attach a Carriage Bumper (24) to the underside
of the Carriage Rail (9) with an M4 x 16mm
Screw (56).
14
3
9
7
