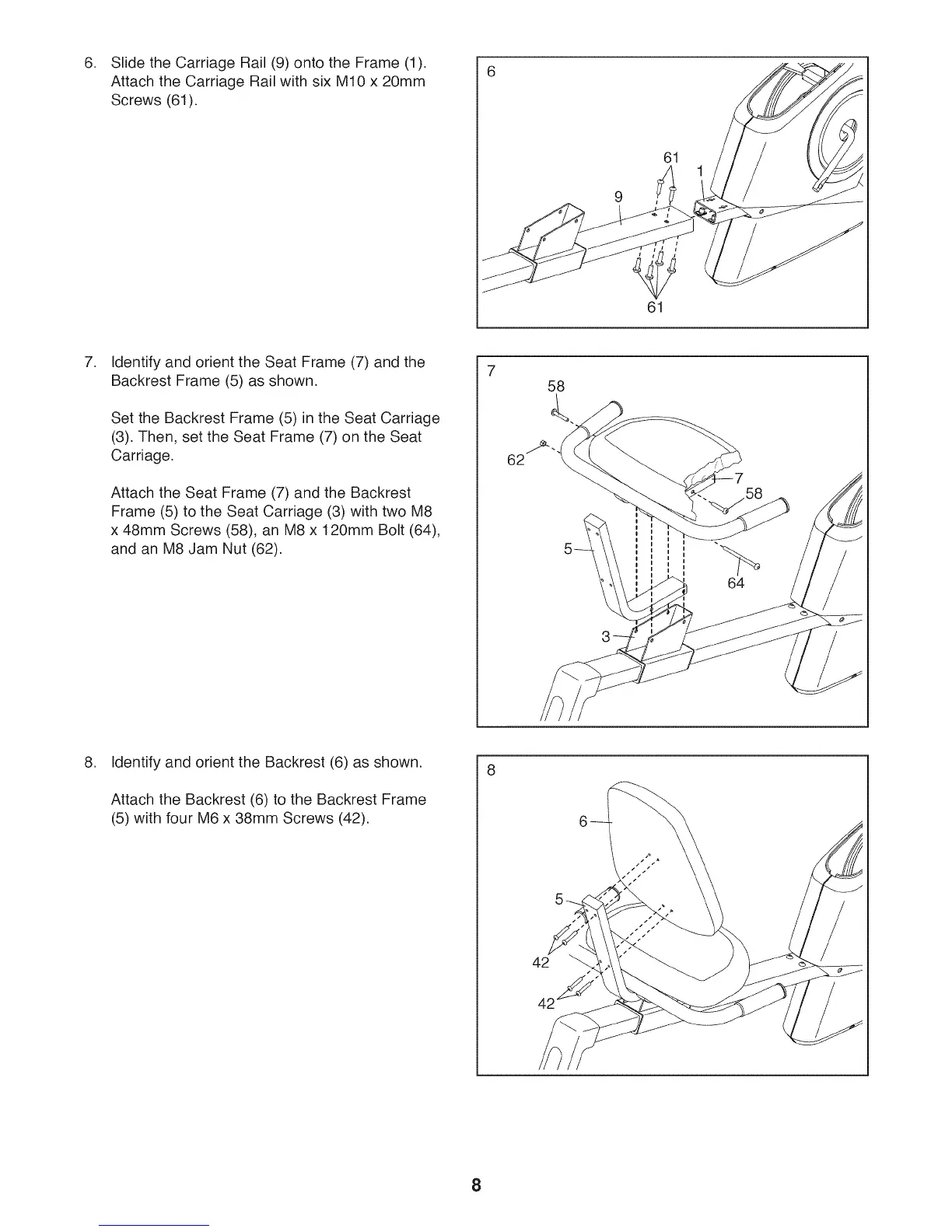

Slide the Carriage Rail (9) onto the Frame (1).
Attach the Carriage Rail with six M10 x 20mm
Screws (61).
9
61
61
.
Identify and orient the Seat Frame (7) and the
Backrest Frame (5) as shown.
Set the Backrest Frame (5) in the Seat Carriage
(3). Then, set the Seat Frame (7) on the Seat
Carriage.
Attach the Seat Frame (7) and the Backrest
Frame (5) to the Seat Carriage (3) with two M8
x 48mm Screws (58), an M8 x 120mm Bolt (64),
and an M8 Jam Nut (62).
58
62
.
Identify and orient the Backrest (6) as shown.
Attach the Backrest (6) to the Backrest Frame
(5) with four M6 x 38mm Screws (42).
42
8
