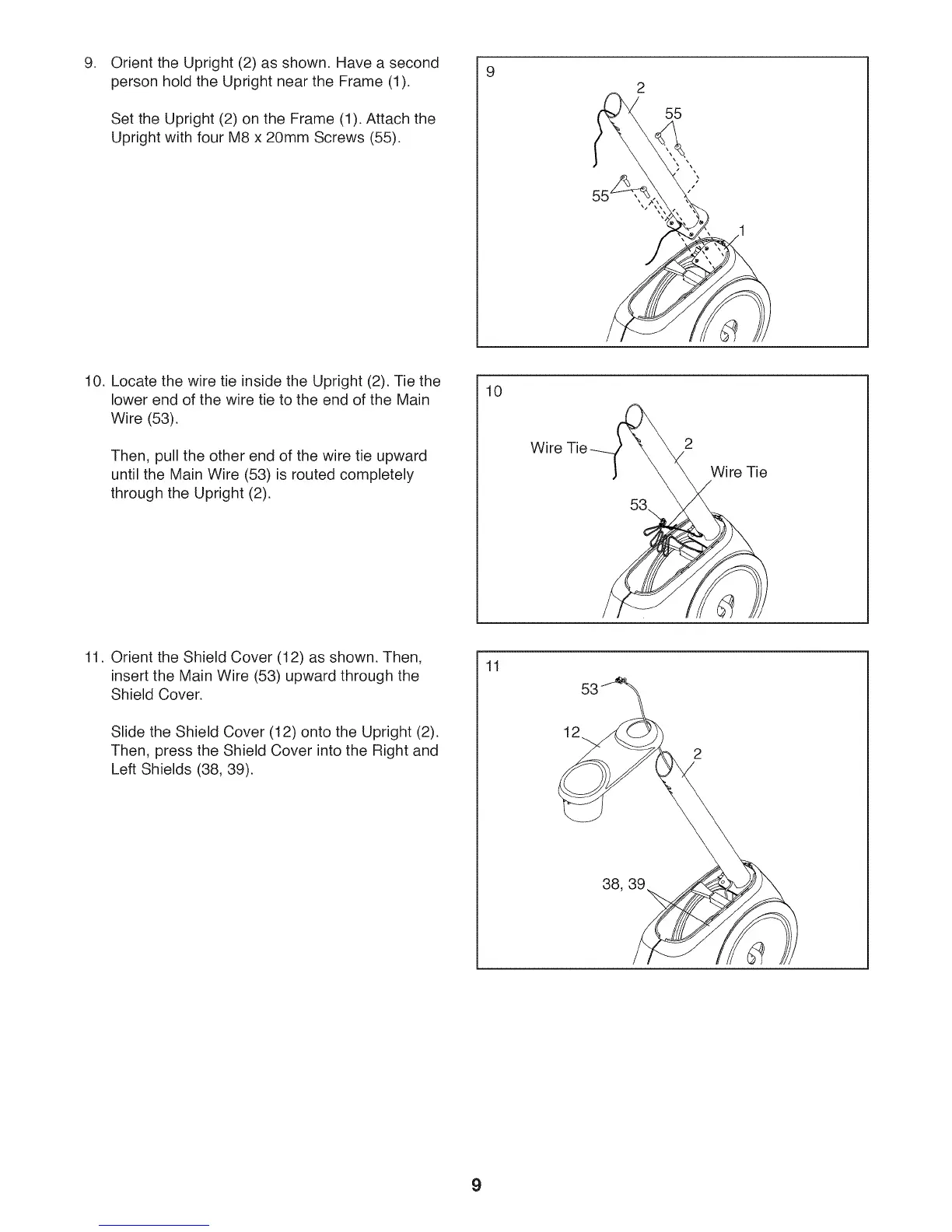

Orient the Upright (2) as shown. Have a second
person hold the Upright near the Frame (1).
Set the Upright (2) on the Frame (1). Attach the
Upright with four M8 x 20mm Screws (55).
9
2
55
10. Locate the wire tie inside the Upright (2). Tie the
lower end of the wire tie to the end of the Main
Wire (53).
Then, pull the other end of the wire tie upward
until the Main Wire (53) is routed completely
through the Upright (2).
10
Wire
2
Wire Tie
11. Orient the Shield Cover (12) as shown. Then,
insert the Main Wire (53) upward through the
Shield Cover.
Slide the Shield Cover (12) onto the Upright (2).
Then, press the Shield Cover into the Right and
Left Shields (38, 39).
11
53
12
9
To Next Page
