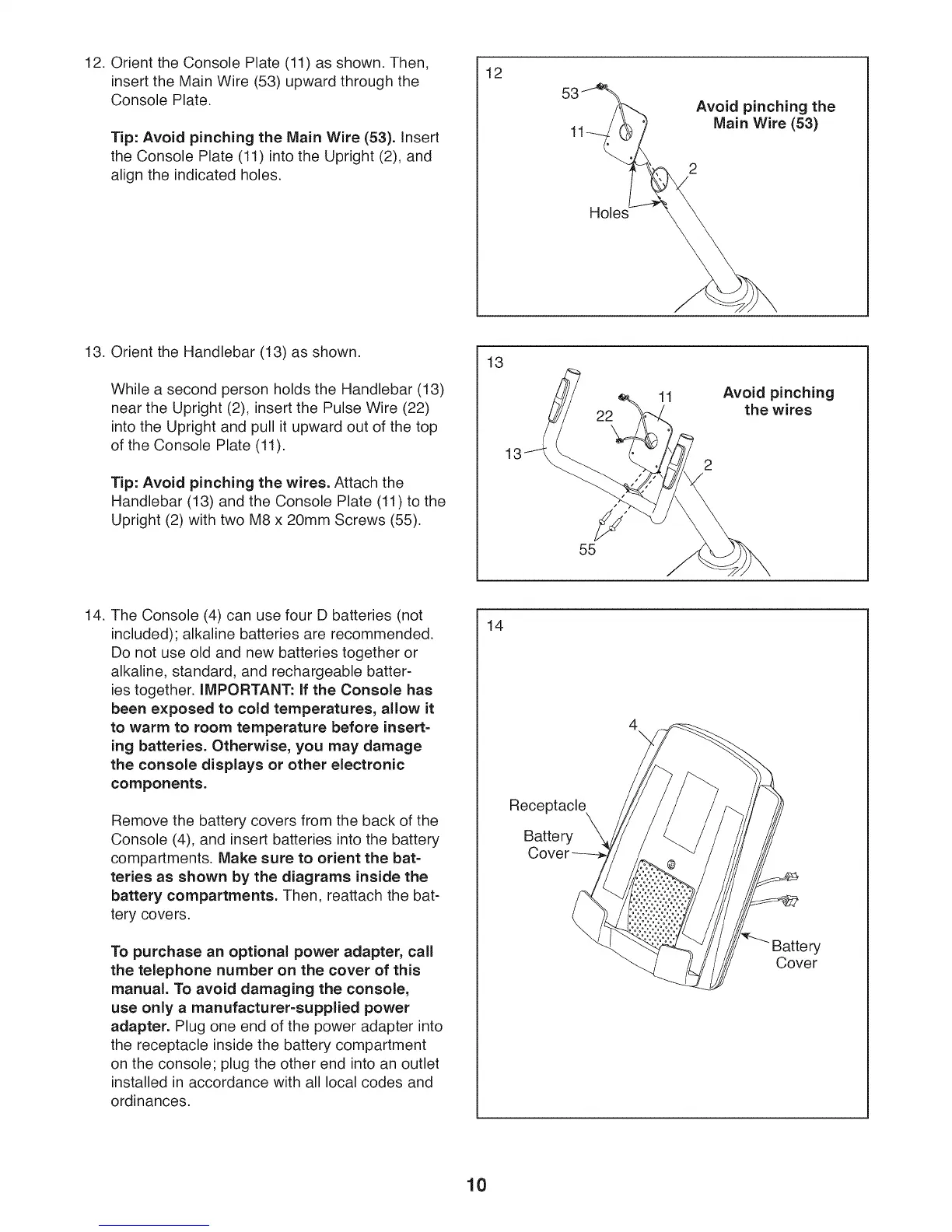

12. Orient the Console Plate (11) as shown. Then,
insert the Main Wire (53) upward through the
Console Plate.
Tip: Avoid pinching the Main Wire (53). Insert
the Console Plate (11) into the Upright (2), and
align the indicated holes.
12
53_ Avoid pinching the
11__._',,_ o Main Wire (53)
T2I
Holes- _
13. Orient the Handlebar (13) as shown.
While a second person holds the Handlebar (13)
near the Upright (2), insert the Pulse Wire (22)
into the Upright and pull it upward out of the top
of the Console Plate (11).
Tip: Avoid pinching the wires. Attach the
Handlebar (13) and the Console Plate (11) to the
Upright (2) with two M8 x 20mm Screws (55).
13
_ 11 Avoid pinching
14. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together, iMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert=
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the battery covers from the back of the
Console (4), and insert batteries into the battery
compartments. Make sure to orient the bat=
teries as shown by the diagrams inside the
battery compartments. Then, reattach the bat-
tery covers.
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the console,
use only a manufacturer-supplied power
adapter. Plug one end of the power adapter into
the receptacle inside the battery compartment
on the console; plug the other end into an outlet
installed in accordance with all local codes and
ordinances.
14
Receptacle
Battery
4
Y
Cover
10
