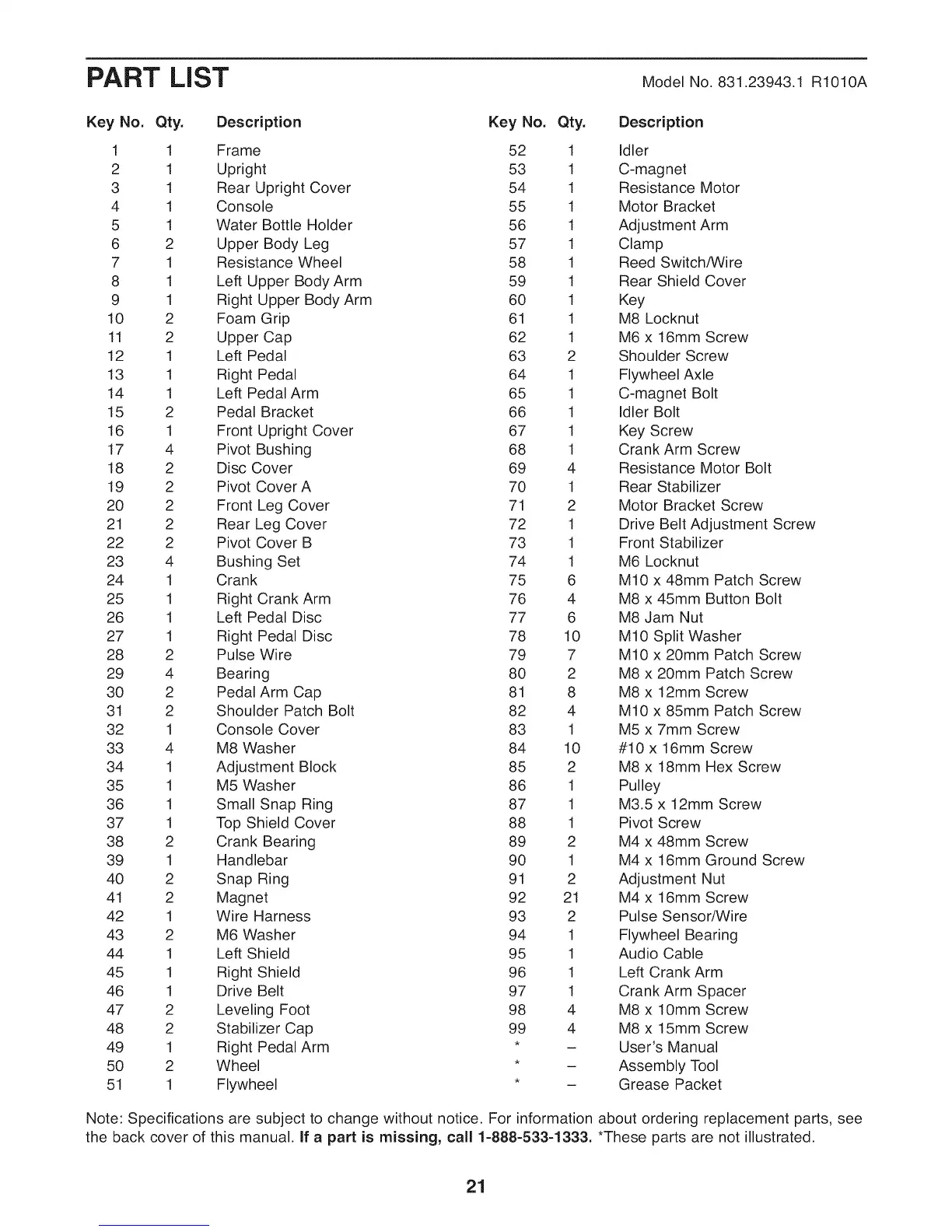

PART LIST Model No. 831.23943.1 R1010A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 52 1 Idler
2 1 Upright 53 1 C-magnet
3 1 Rear Upright Cover 54 1 Resistance Motor
4 1 Console 55 1 Motor Bracket
5 1 Water Bottle Holder 56 1 Adjustment Arm
6 2 Upper Body Leg 57 1 Clamp
7 1 Resistance Wheel 58 1 Reed Switch/Wire
8 1 Left Upper Body Arm 59 1 Rear Shield Cover
9 1 Right Upper Body Arm 60 1 Key
10 2 Foam Grip 61 1 M8 Locknut
11 2 Upper Cap 62 1 M6 x 16mm Screw
12 1 Left Pedal 63 2 Shoulder Screw
13 1 Right Pedal 64 1 Flywheel Axle
14 1 Left Pedal Arm 65 1 C-magnet Bolt
15 2 Pedal Bracket 66 1 Idler Bolt
16 1 Front Upright Cover 67 1 Key Screw
17 4 Pivot Bushing 68 1 Crank Arm Screw
18 2 Disc Cover 69 4 Resistance Motor Bolt
19 2 Pivot Cover A 70 1 Rear Stabilizer
20 2 Front Leg Cover 71 2 Motor Bracket Screw
21 2 Rear Leg Cover 72 1 Drive Belt Adjustment Screw
22 2 Pivot Cover B 73 1 Front Stabilizer
23 4 Bushing Set 74 1 M6 Locknut
24 1 Crank 75 6 M10 x 48mm Patch Screw
25 1 Right Crank Arm 76 4 M8 x 45mm Button Bolt
26 1 Left Pedal Disc 77 6 M8 Jam Nut
27 1 Right Pedal Disc 78 10 M10 Split Washer
28 2 Pulse Wire 79 7 M10 x 20mm Patch Screw
29 4 Bearing 80 2 M8 x 20mm Patch Screw
30 2 Pedal Arm Cap 81 8 M8 x 12mm Screw
31 2 Shoulder Patch Bolt 82 4 M10 x 85mm Patch Screw
32 1 Console Cover 83 1 M5 x 7mm Screw
33 4 M8 Washer 84 10 #10 x 16mm Screw
34 1 Adjustment Block 85 2 M8 x 18mm Hex Screw
35 1 M5 Washer 86 1 Pulley
36 1 Small Snap Ring 87 1 M3.5 x 12mm Screw
37 1 Top Shield Cover 88 1 Pivot Screw
38 2 Crank Bearing 89 2 M4 x 48mm Screw
39 1 Handlebar 90 1 M4 x 16mm Ground Screw
40 2 Snap Ring 91 2 Adjustment Nut
41 2 Magnet 92 21 M4 x 16mm Screw
42 1 Wire Harness 93 2 Pulse Sensor/Wire
43 2 M6 Washer 94 1 Flywheel Bearing
44 1 Left Shield 95 1 Audio Cable
45 1 Right Shield 96 1 Left Crank Arm
46 1 Drive Belt 97 1 Crank Arm Spacer
47 2 Leveling Foot 98 4 M8 x 10mm Screw
48 2 Stabilizer Cap 99 4 M8 x 15mm Screw
49 1 Right Pedal Arm * - User's Manual
50 2 Wheel * - Assembly Tool
51 1 Flywheel * - Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing, call 1-888-533-1333. *These parts are not illustrated.
21
