ProForm 505 CST User Manual

14

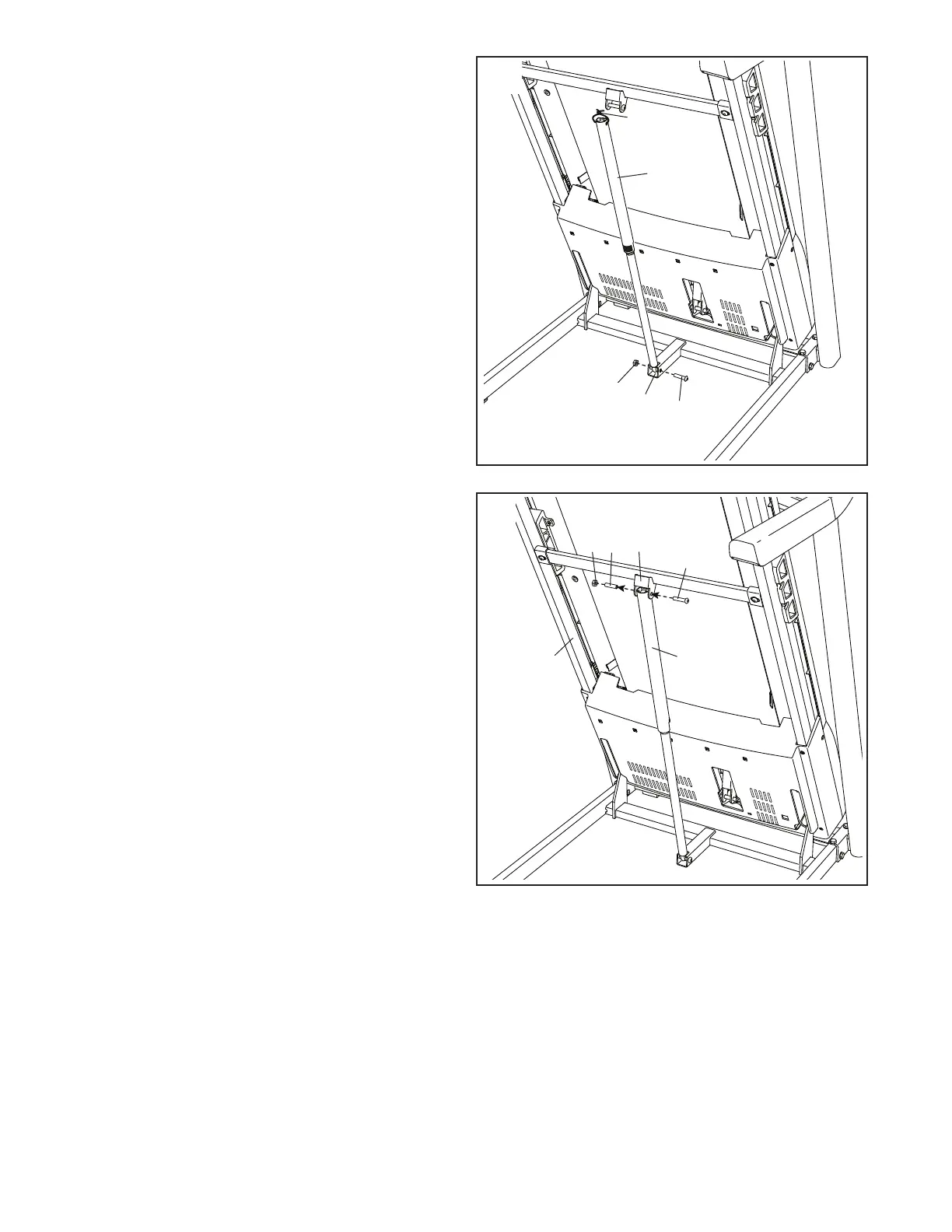

14. Remove the 5/16" Nut (39) and the 5/16" x 1 3/4"
Bolt (28) from the bracket on the Base (97).
Next, orient the Storage Latch (35) as shown.
Attach the lower end of the Storage Latch
(35) to the bracket on the Base (97) with the
5/16" x 1 3/4" Bolt (28) and the 5/16" Nut (39).
Then, raise the Storage Latch (35) to a vertical
position, and remove the tie (K).
97
35
28
39
K
14
15. Remove the 5/16" Nut (39) and the 5/16" x 2 1/4"
Bolt (29) from the bracket on the Latch Crossbar
(31).
Align the upper end of the Storage Latch (35)
with the bracket on the Latch Crossbar (31), and
insert the 5/16" x 2 1/4" Bolt (29) through the
bracket and the Storage Latch. This will push a
spacer (L) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (39) onto the
5/16" x 2 1/4" Bolt (29). Do not overtighten the
Nut; the Storage Latch (35) must be able to
pivot.
Then, lower the Frame (60) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 23).
31
29
60
39
L
35
15
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 25 and 26). Note: Extra hardware
may be included.

ProForm 505 CST Specifications

General

Speed Range	0-10 MPH
Incline Range	0-10%
Cushioning	ProShox Cushioning
Motor	2.5 HP
Tread Belt	20" x 55"
Workout Programs	18
Heart Rate Monitoring	EKG Grip Pulse
Folding Design	SpaceSaver Design
Display	5" Backlit Display
