12. Tighten all eight indicated Screws (1, 2, 3).
1, 2, 3
1, 2, 3
12
13. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.

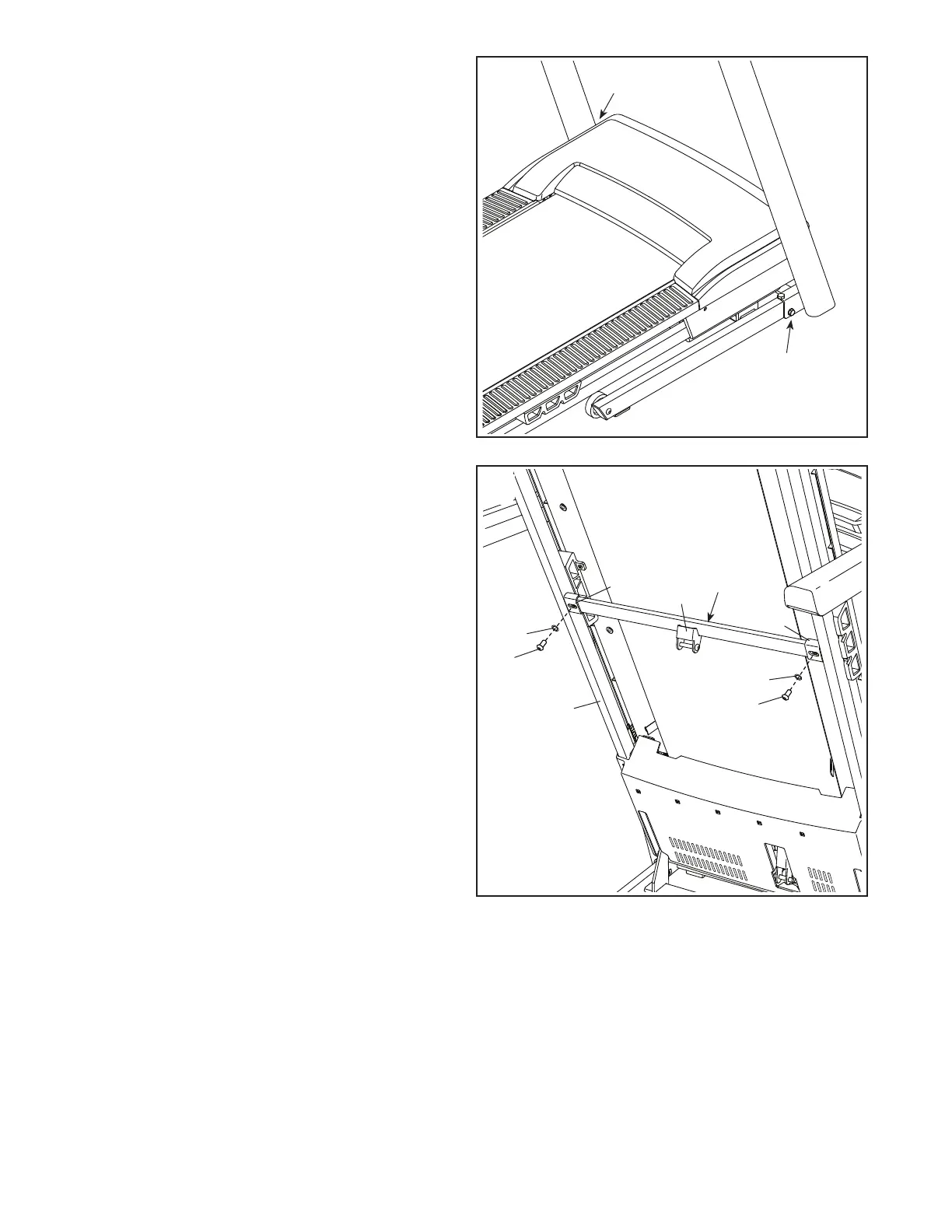

Raise the Frame (60) to the upright position.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 15 is completed.
Next, remove the two 5/16" x 3/4" Screws (24)
from the Latch Crossbar (31).
Orient the Latch Crossbar (31) as shown. Make
sure that the “This side toward belt” sticker
(I) is facing the treadmill. Attach the Latch
Crossbar to the brackets (J) on the Frame (60)
with the two 5/16" x 3/4" Screws (24) and two
5/16" Star Washers (12).
60
31
I
12
12
24
24
13
J
J

ProForm 505 CST Specifications

General

Speed Range	0-10 MPH
Incline Range	0-10%
Cushioning	ProShox Cushioning
Motor	2.5 HP
Tread Belt	20" x 55"
Workout Programs	18
Heart Rate Monitoring	EKG Grip Pulse
Folding Design	SpaceSaver Design
Display	5" Backlit Display
