ProForm 505 CST User Manual

12
6
10
80
80
10

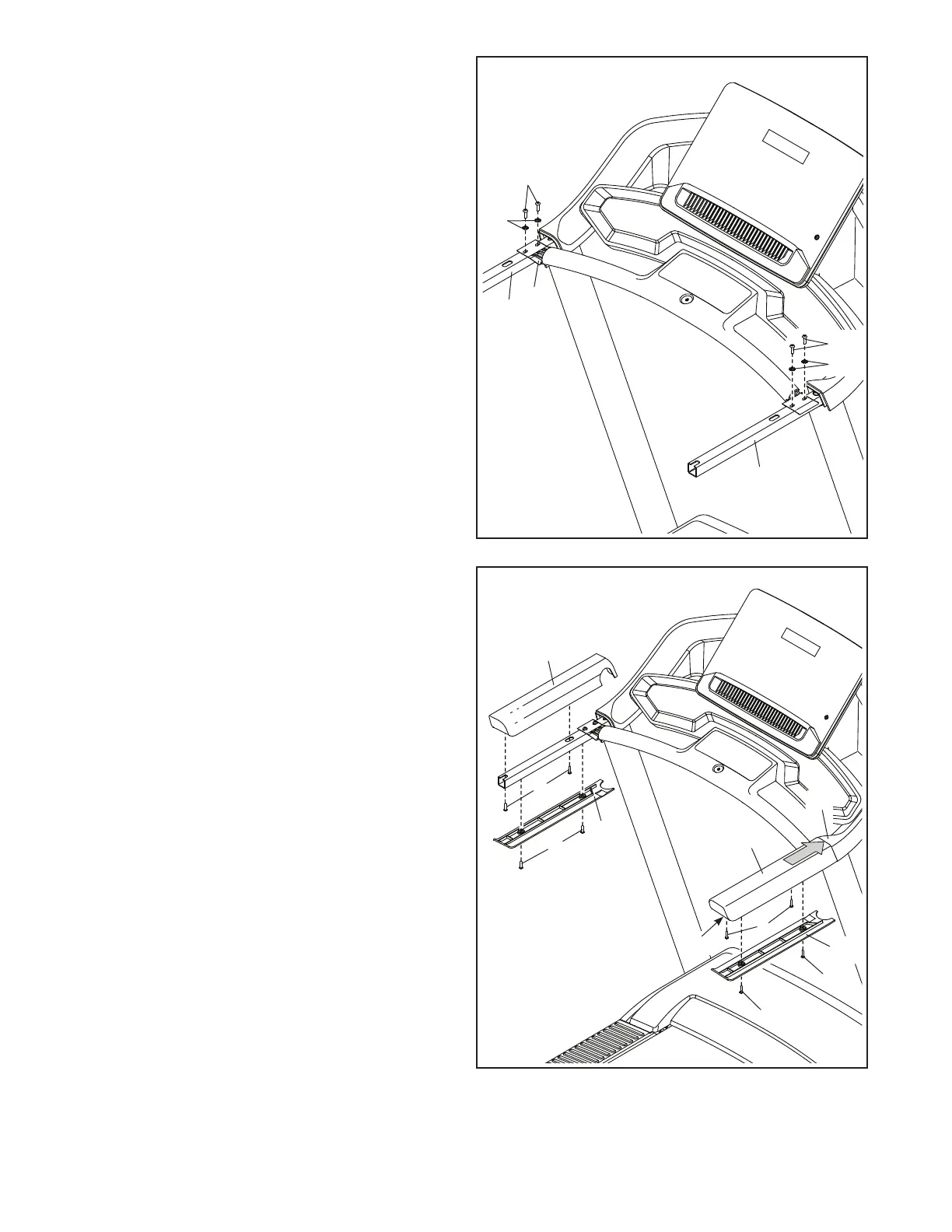

10. IMPORTANT: To avoid damaging the
Crossbar (87), do not use power tools and do
not overtighten the #10 x 3/4" Screws (6).
Attach the Crossbar (87) to the Handrails (80)
with four #10 x 3/4" Screws (6) and four #10 Star
Washers (10); start all four Screws, and then
tighten them.
87
6
10
11
79
80
4
78
82
4
4
11. Identify the Right Handrail Cover (79). Set the
Right Handrail Cover on the right Handrail (80),
and slide the Right Handrail Cover forward
until it rests against the console assembly (G).
Then, attach the Right Handrail Cover with two
#8 x 3/4" Screws (4); start both Screws, and
then tighten them.
Next, hold the Right Bottom Handrail Cover
(83) on the bottom of the right Handrail (80) and
start two #8 x 3/4" Screws (4) into the bottom
of the Right Bottom Handrail Cover; start both
Screws, and then tighten them.
Attach the Left Handrail Cover (78) and the
Left Bottom Handrail Cover (82) in the same
way.
4
4
G
83

ProForm 505 CST Specifications

General

Speed Range	0-10 MPH
Incline Range	0-10%
Cushioning	ProShox Cushioning
Motor	2.5 HP
Tread Belt	20" x 55"
Workout Programs	18
Heart Rate Monitoring	EKG Grip Pulse
Folding Design	SpaceSaver Design
Display	5" Backlit Display
