11
8
G
88
A
86
H

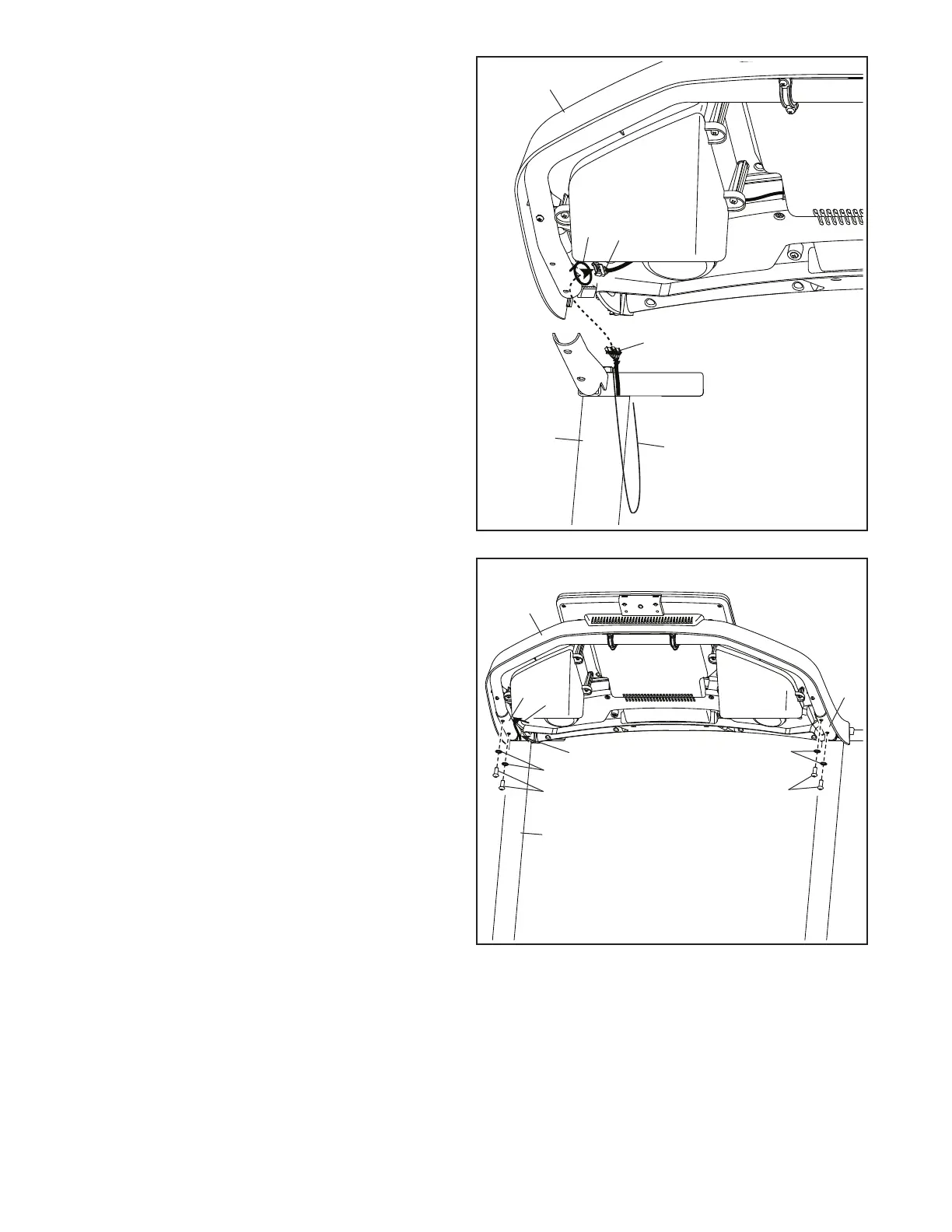

8. With the help of a second person, hold the con-
sole assembly (G) near the Right Upright (86).
Next, insert the Upright Wire (88) through the
indicated looped tie (48) and connect it to the
console wire (H). The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again.
Then, remove the wire tie (A) from the Upright
Wire (88).
9
G
12
24
24
12
9. Set the console assembly (G) on the Handrails
(80); do not pinch any wires.
Attach the console assembly (G) with the four
5/16" x 3/4" Screws (24) that you removed in
step 7 and four 5/16" Star Washers (12); start all
four Screws, and then tighten them.
Insert the excess Upright Wire (88) into the Right
Upright (86). Next, tighten the tie (48) around the
Upright Wire, and cut off the end of the tie.
80
80
88
86
48
48
