ProForm 505 CST User Manual

10
6
88
86
85
80
F
80
7
12
12
7

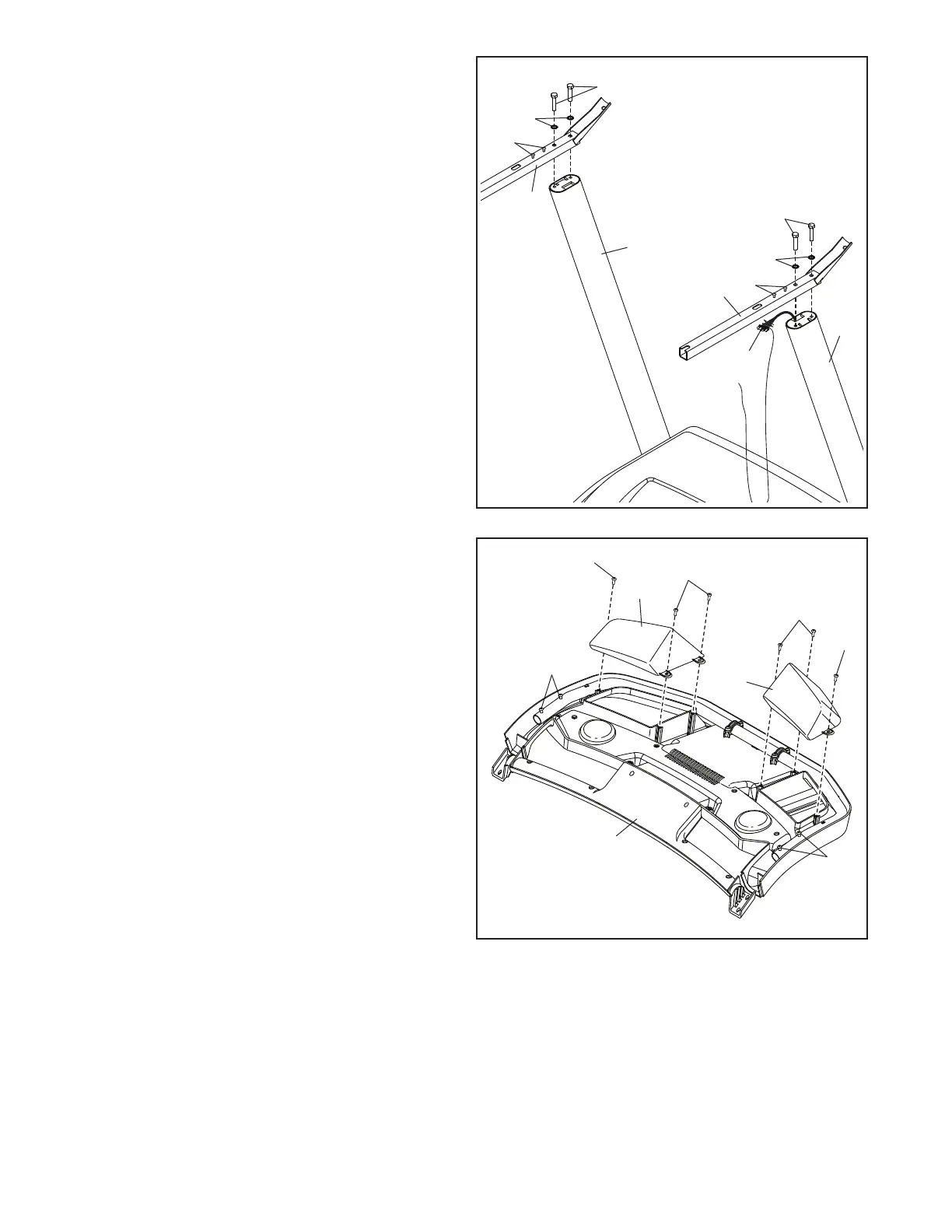

6. Attach a Handrail (80) to the Right Upright (86)
with two 5/16" x 1 1/2" Screws (7) and two 5/16"
Star Washers (12) in the location shown; start
both Screws, and then tighten them. Make
sure not to pinch the Upright Wire (88), and
make sure that the wire is on the indicated
side of the Upright.
Attach the other Handrail (80) to the Left
Upright (85) in the same way. Note: There are
no wires on the left side.
Then, remove and discard the indicated
screws (F).
F
7
7. Set the console assembly (G) face down on
a soft surface to avoid scratching the console
assembly. Attach the Right and Left Trays
(99, 98) with six #8 x 1/2" Screws (5); start all
six Screws, and then tighten them. Do not
overtighten the Screws.
Then, remove and save the four 5/16" x 3/4"
Screws (24).
5
24
24
99
98
G
5
5
5

ProForm 505 CST Specifications

General

Speed Range	0-10 MPH
Incline Range	0-10%
Cushioning	ProShox Cushioning
Motor	2.5 HP
Tread Belt	20" x 55"
Workout Programs	18
Heart Rate Monitoring	EKG Grip Pulse
Folding Design	SpaceSaver Design
Display	5" Backlit Display
