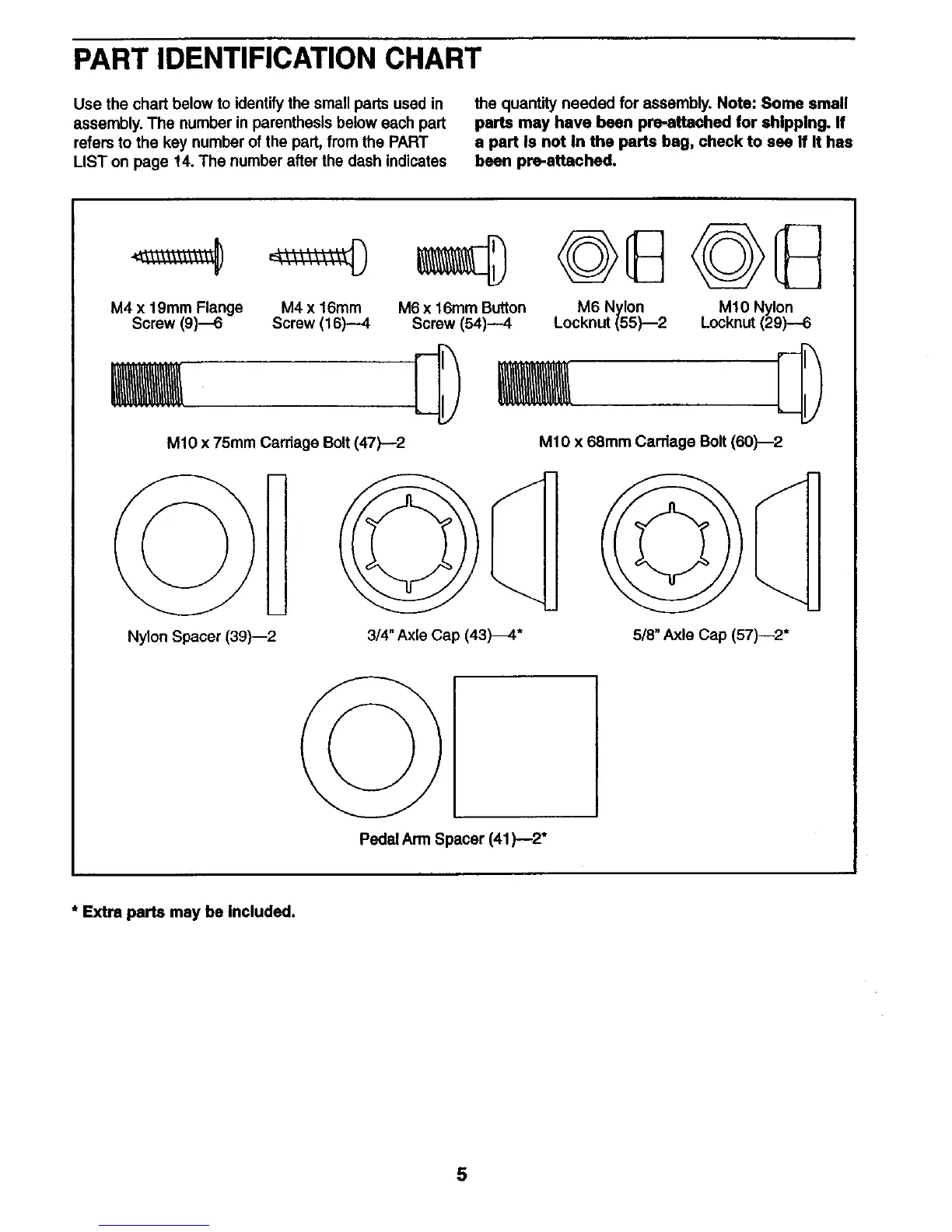

PART IDENTIFICATION CHART
Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART
LIST on page 14. The number after the dash indicates
the quantity needed for assembly. Note: Some small
parts may have been pre-attached for shipping. If
a part Is not In the parts bag, check to see if It has
been pre-ettached.
M4 x 19mm Flange M4 x 16mm
Screw (9)---6 Screw (16).--4
M6 x 16mm Button
Screw (54)--4
M10 x 75mm Carriage Bolt (47)--2
M6 Nylon
Locknut (55)---2
M10 Nylon
Locknut (29)--6
M10 x 68mm Carriage Bolt (60)---2
m
Nylon Spacer (39)---2
3/4" Axle Cap (43)_* 5/8" Axle Cap (57)--2*
Pedal Arm Spacer (41)--2*
* Extra parts may be Included.
5
To Next Page
