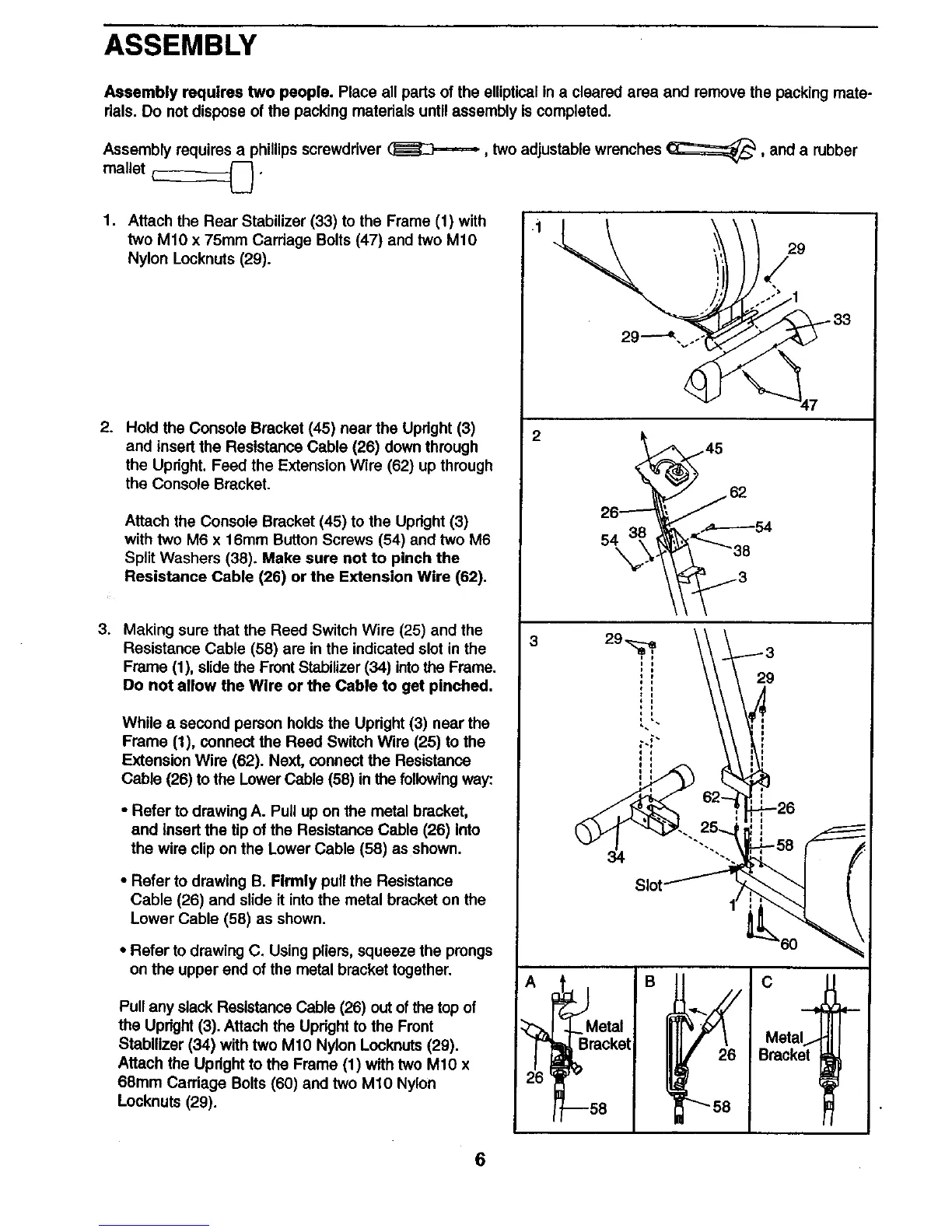

ASSEMBLY
Assembly requires two people. Place all parts of the ellipticalin a cleared area and remove the packing mate-
rials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver (_.=,===-, two adjustable wrenches (_::_, and a rubber
mallet _.
1. Attach the Rear Stabilizer (33) to the Frame (t) with
two M10 x 75mm Carriage Bolts (47) and two MIO
Nylon Locknuts (29).
2. Hold the Console Bracket (45) near the Upright (3)
and insertthe Resistance Cable (26) down through
the Upright. Feed the Extension Wire (62) up through
the Console Bracket.
Attach the Console Bracket (45) to the Upright (3)
with two M6 x 16mm Button Screws (54) and two M6
Split Washers (38). Make sure not to pinch the
Resistance Cable (26) or the Extension Wire (62).
.
Making sure that the Reed Switch Wire (25) and the
Resistance Cable (58) are in the indicated slot in the
Frame (1), slidethe Front Stabilizer(34) intothe Frame.
Do not allow the Wire or the Cable to get pinched.
While a second person holds the Upright (3) near the
Frame (1), connect the Reed Switch Wire (25) to the
Extension Wire (62). Next, connect the Resistance
Cable (26) to the Lower Cable (58) in the following way:
• Refer to drawing A. Pull up on the metal bracket,
and insert the tip of the Resistance Cable (26) Into
the wire clip on the Lower Cable (58) as shown.
• Refer to drawing B. Firmly pull the Resistance
Cable (26) and slide it intothe metal bracket on the
Lower Cable (58) as shown.
• Refer todrawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Pull any slack Resistance Cable (26) outof the top of
the Upright(3). Attach the Upright to the Front
Stabilizer (34) with two M10 Nylon Locknuts (29).
Attach the Upright to the Frame (1) with two M10 x
68mm Carriage Bolts (60) and two MIO Nylon
Locknuts (29).
3
52
26 i .,,,.-------54
54_,.-,88 _38
:i \ 29
\\\A
i i e
I'
. , _266.=. ,
saotf )%'>...\
2_6 "_ Metal
! Bracket
i/_-58
c
""4
Metall
Bracket
6
