ProForm 650 Elliptical User Manual

7
6.

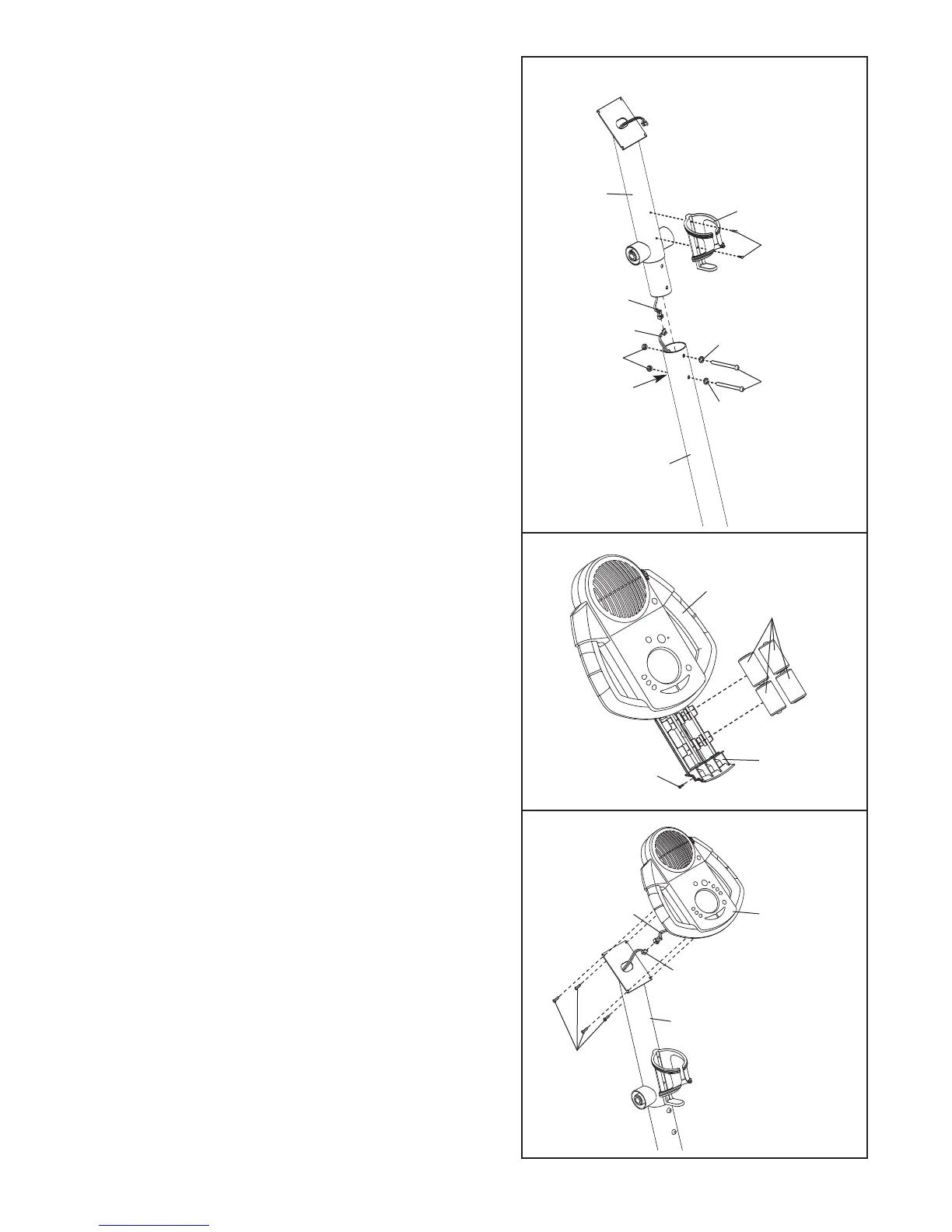

While another person holds the Console (5) near the
Upright (2), connect the wire harness on the Console
to the Upper W
ire Harness (86). Insert the excess
wire harness down into the Upright. Next, attach the
Console to the Upright with four M4 x 16mm Screws
(66). Be careful to avoid pinching the wire har-
nesses.
5
86
66
2
Wire
Harness
6
5. The Console (5) requires four 1.5V “D” batteries; alka-
line batteries are recommended. Loosen the indicated
screw from the battery drawer, and pull the battery
drawer open. Insert four batteries into the battery
drawer;
make sure that the batteries are oriented as
shown by the markings inside of the battery drawer.
Then, close the battery drawer and tighten the screw.
5
5
Batteries
Screw
Battery
Drawer
4
2
46
67
15
83
83
95
86
76
72
Hexagonal
Holes
4. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
t
he Extension Wire Harness (95).
N
ext, insert the Upright (2) into the Mast (15); m
ake
sure that the Upright is oriented as shown
. Attach
the Upright with two M8 x 70mm Button Bolts (67), two
M8 Split Washers (83), and two M8 Nylon Locknuts
(46). Make sure that the Wire Harnesses (86, 95) do
not get pinched and damaged during this step. Do
not tighten the Button Bolts yet.
Attach the Water Bottle Holder (72) to the Upright (2)
with two M4 x 22mm Screws (76).
Make sure that the
wire harnesses do
not get pinched
a
nd damaged
during this step.
Make sure the
wire harnesses do
not get pinched
and damaged
during this step.
