5. 5

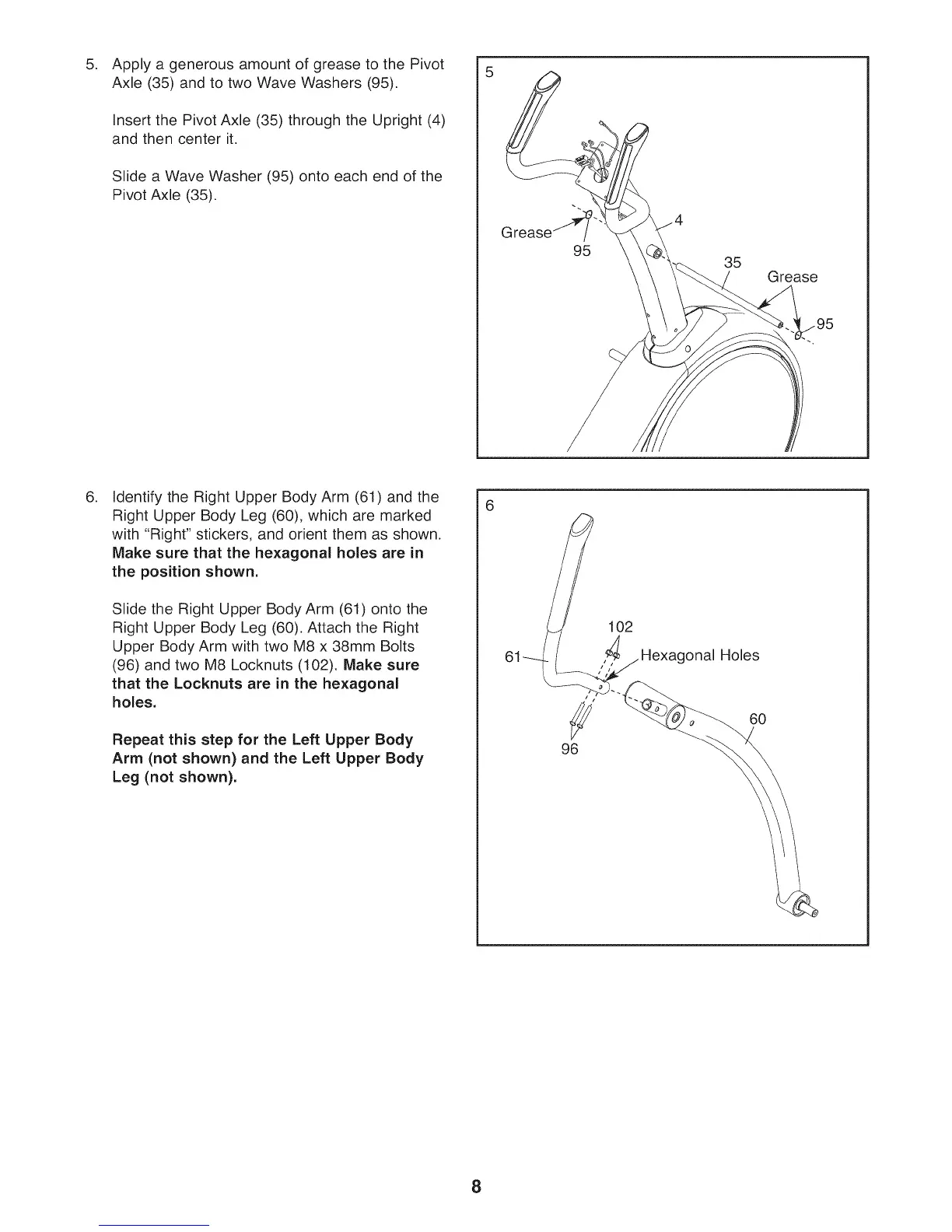

Apply a generous amount of grease to the Pivot
Axle (35) and to two Wave Washers (95).
Insert the Pivot Axle (35) through the Upright (4)
and then center it.
Slide a Wave Washer (95) onto each end of the
Pivot Axle (35).
95
35
Grease
.
Identify the Right Upper Body Arm (61) and the
Right Upper Body Leg (60), which are marked
with "Right" stickers, and orient them as shown.
Make sure that the hexagonal holes are in
the position shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60). Attach the Right
Upper Body Arm with two M8 x 38mm Bolts
(96) and two M8 Locknuts (102). Make sure
that the Locknuts are in the hexagonal
holes.
Repeat this step for the Left Upper Body
Arm (not shown) and the Left Upper Body
Leg (not shown).
96
102
onal Holes
60
