ProForm 790 E - Page 9

.

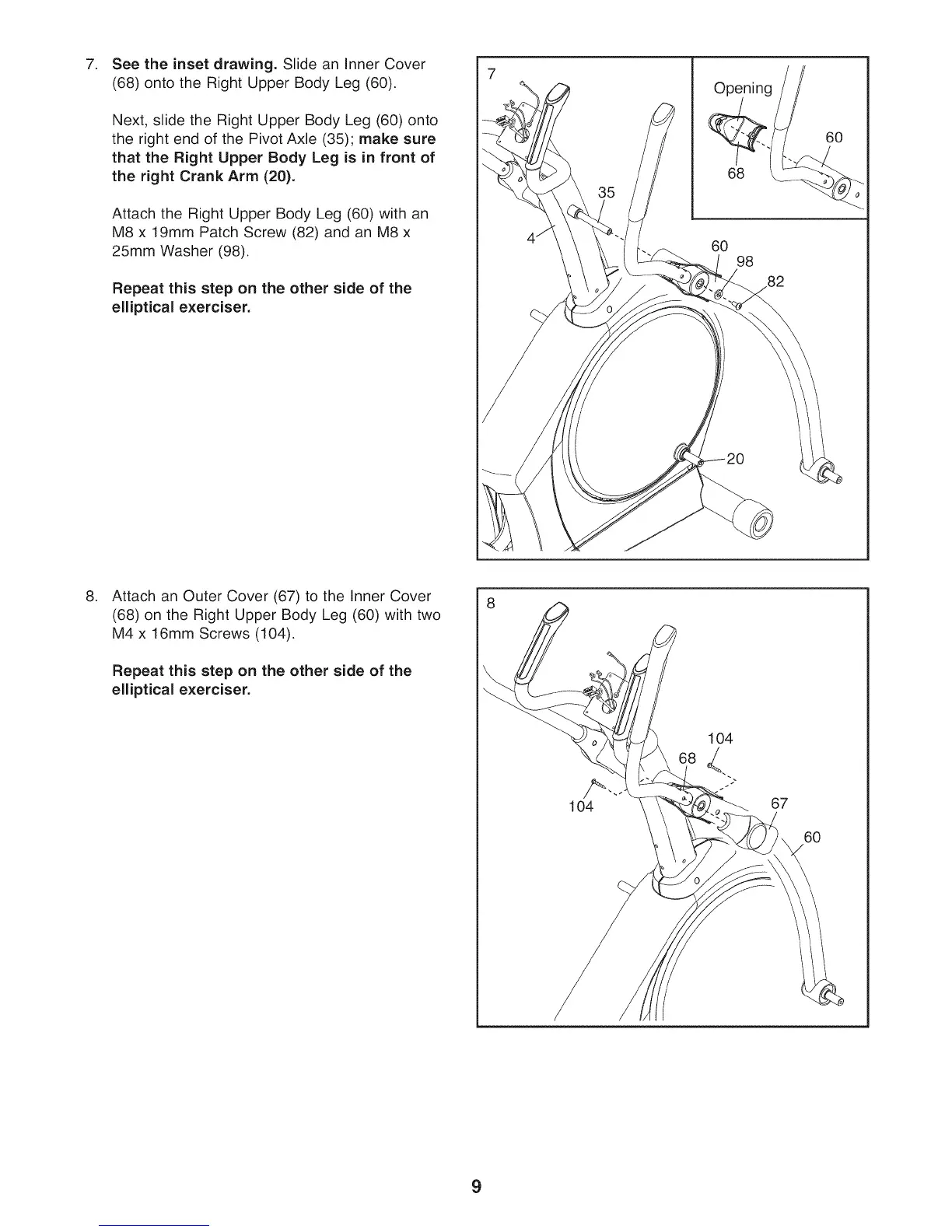

See the inset drawing. Slide an Inner Cover
(68) onto the Right Upper Body Leg (60).
Next, slide the Right Upper Body Leg (60) onto
the right end of the Pivot Axle (35); make sure
that the Right Upper Body Leg is in front of
the right Crank Arm (20).
Attach the Right Upper Body Leg (60) with an
M8 x 19mm Patch Screw (82) and an M8 x
25mm Washer (98).
Repeat this step on the other side of the
elliptical exerciser.
Opening
68
6O
98
.
Attach an Outer Cover (67) to the Inner Cover
(68) on the Right Upper Body Leg (60) with two
M4 x 16mm Screws (104).
Repeat this step on the other side of the
elliptical exerciser.
8
/
\
104
67
60
