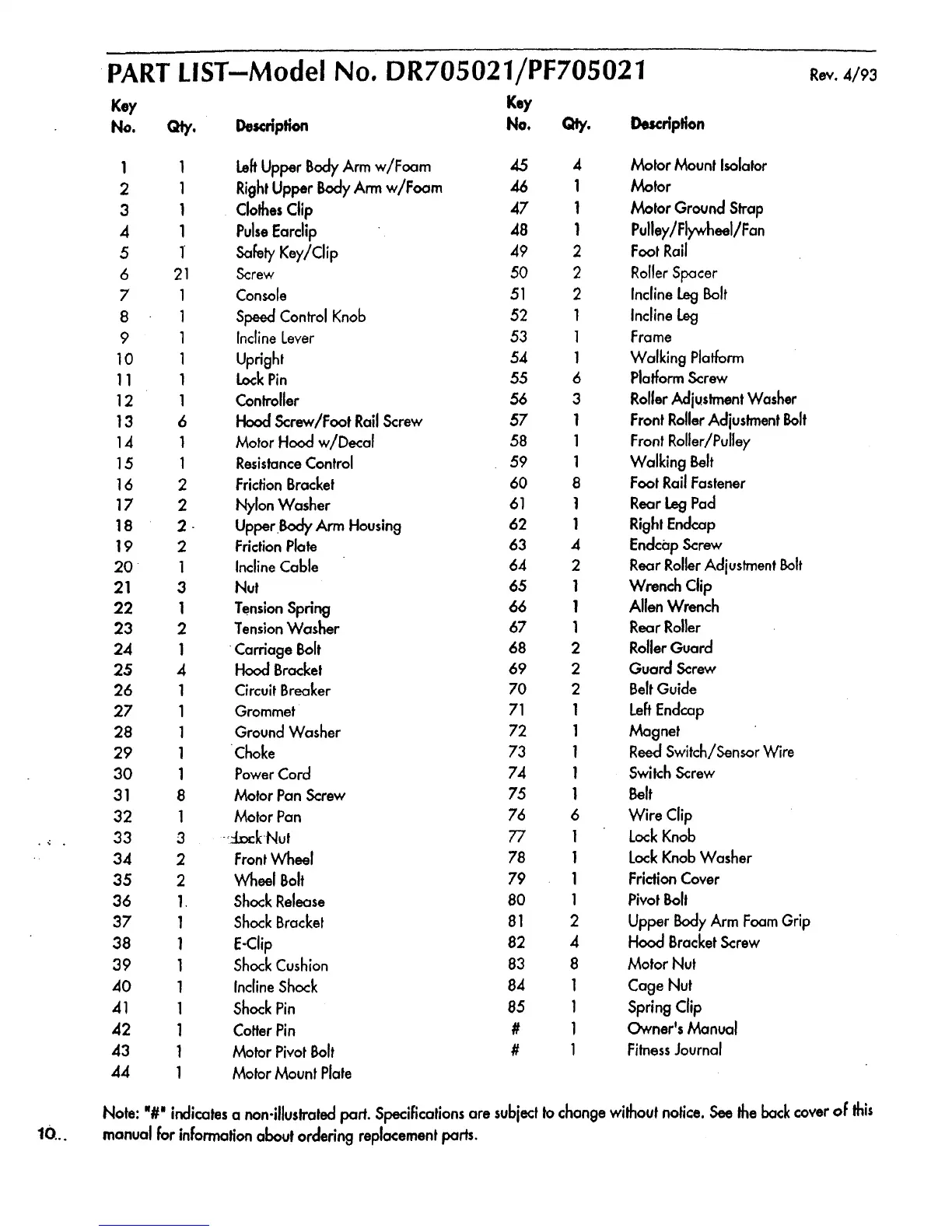

PART LIST-Model No. DR705021/PF705021
Key Key
No. Qty. Description No. Qty. Descrlpfion
Rev. 4/93
• ¢ .
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1 LeftUpper Body Arm w/Foam 45 4 Motor Mount Isolator
1 RightUpper BodyArm w/Foam 46 1 Motor
1 ClothesClip 47 1 Motor Ground Strap
1 PulseEarclip 48 1 Pulley/Flywheel/Fan
1 Safety Key/Clip 49 2 Foot Rail
21 Screw 50 2 Roller Spacer
1 Console 51 2 Incline Leg Bolt
1 Speed Control Knob 52 1 Incline Leg
1 Incline Lever 53 1 Frame
1 Upright 54 1 Walking Platform
1 LockPin 55 6 PlatformScrew
1 Controller 56 3 Roller Adjustment Washer
6 Hood Screw/Foat Rail Screw 57 1 Front RollerAdjustment Bolt
1 Motor Hood w/Decal 58 1 Front Roller/Pulley
1 ResistanceControl 59 1 Walking Belt
2 FrictionBracket 60 8 Foot Rail Fastener
2 Nylon Washer 61 t Rear Leg Pad
2 - Upper.Body Arm Housing 62 1 Right Endcap
2 FrictionPlate 63 4 Endcap Screw
1 Incline Cable 64 2 Rear Roller Adjustment Bolt
3 Nut 65 1 Wrench Clip
1 TensionSpring 66 1 Allen Wrench
2 TensionWasher 67 1 Rear Roller
1 Carriage Bolt 68 2 RollerGuard
4 Hood Bracket 69 2 Guard Screw
1 Circuit Breaker 70 2 Belt Guide
1 Grommet 71 1 LeftEndcap
1 Ground Washer 72 1 Magnet
1 •Choke 73 1 Reed Switch/Sensor Wire
1 PowerCord 74 1 SwitchScrew
8 Motor Pan Screw 75 1 Belt
1 Motor Pan 76 6 Wire Clip
3 -::LookNut 77 1 Lock Knob
2 FrontWheel 78 1 LockKnob Washer
2 Wheel Bolt 79 1 FrictionCover
1 ShockRelease 80 1 Pivot Bolt
1 ShockBracket 81 2 Upper BodyArm FoamGrip
1 E-Clip 82 4 Hood BracketScrew
1 ShockCushion 83 8 Motor Nut
1 InclineShock 84 1 Cage Nut
1 Shock Pin 85 1 Spring Clip
1 CotterPin # ! Owner's Manual
1 Motor PivotBolt # 1 FitnessJournal
1 Motor Mount Plate
10...
Note: "#" indicatesa non-illustratedpart. Specificationsare subjectto change without notice. See the back coverof this
manual for information abou! ordering replacement pads.
