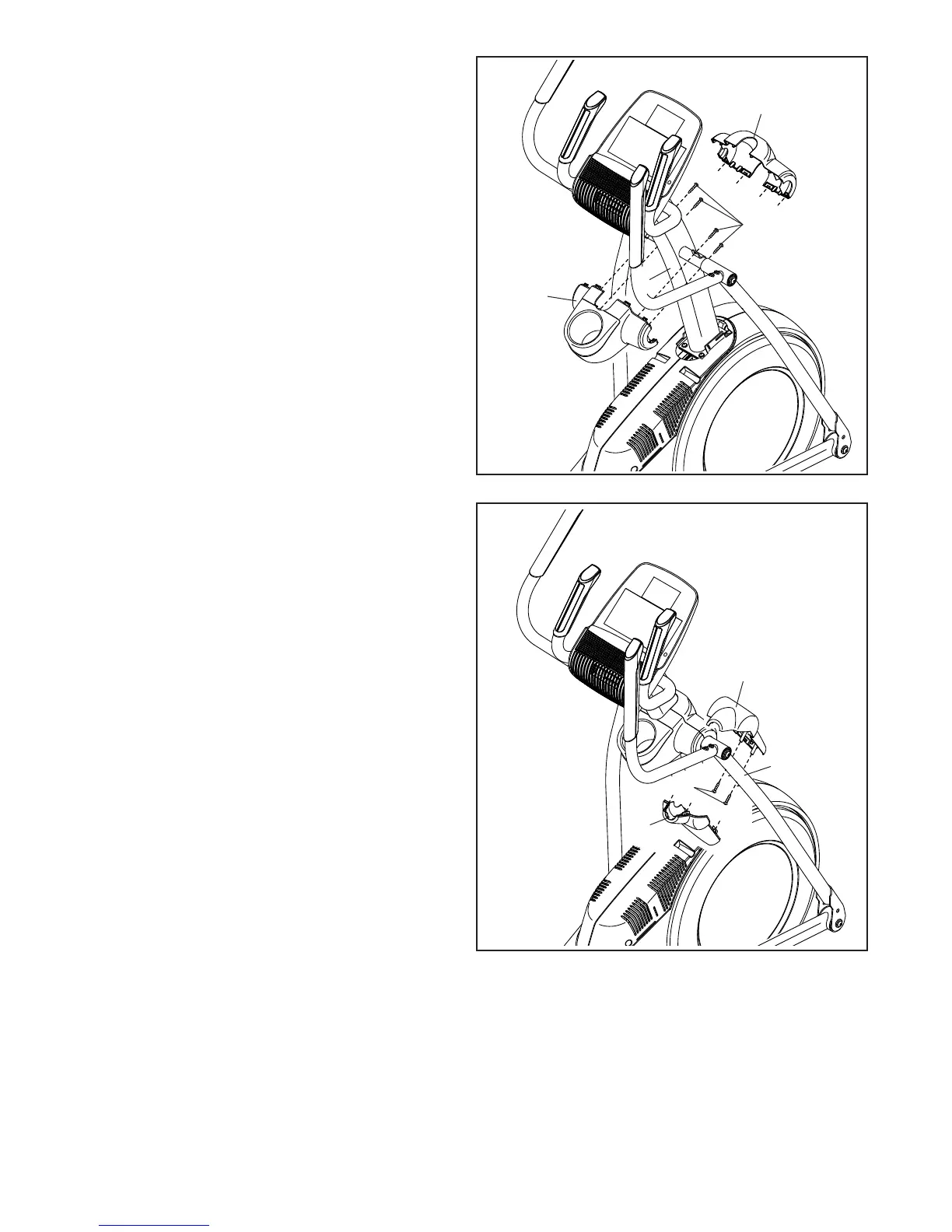

13. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101); start all
the Screws, and then tighten them.
Next, orient the Front Upright Cover (117) as
shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing the hooks on the Rear
Upright Cover (81) onto the tabs on the Front
Upright Cover.
101
81
117
4
14
14. Identify the Right Arm Front Cover (65) and
orient it as shown.
Attach the Right Arm Front Cover (65) to the
Right Upper Body Leg (60) with two M4 x 16mm
Screws (101).
Next, identify the Right Arm Rear Cover (66) and
orient it as shown.
Attach the Right Arm Rear Cover (66) around
the Right Upper Body Leg (60) by pressing the
hooks on the Right Arm Rear Cover onto the
tabs on the Right Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66
