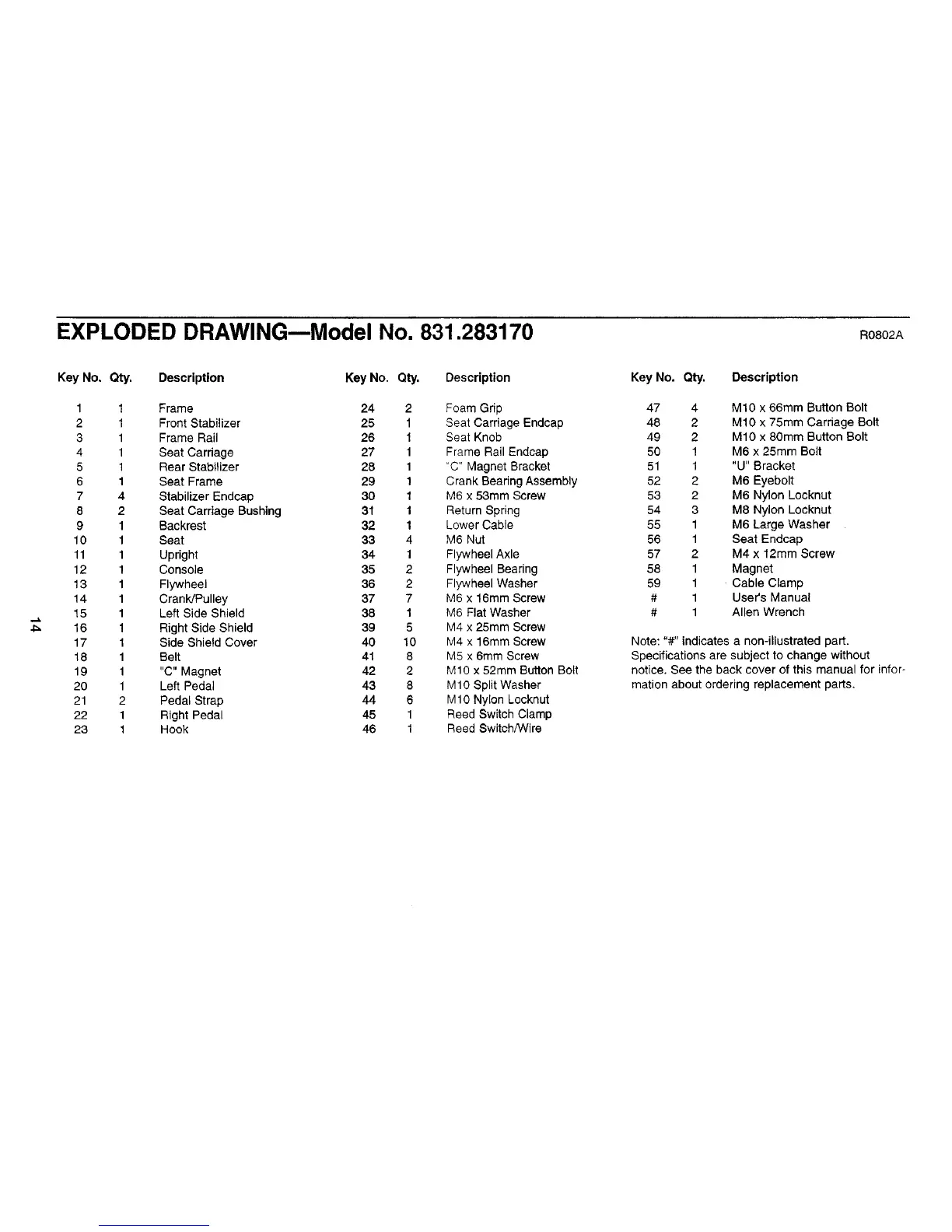

EXPLODED DRAWING--Model No. 831.283170 ROB02A
=.t
Key No, Qty. Description Key No. Qty, Description
1 1 Frame 24 2 Foam Grip
2 1 Front Stabilizer 25 1 Seat Carriage Endcap
3 1 Frame Rail 26 1 Seat Knob
4 1 Seat Cardage 27 1 Frame Rail Endcap
5 1 Rear Stabilizer 28 1 "C" Magnet Bracket
6 1 Seat Frame 29 1 Crank Bearing Assembly
7 4 Stabilizer Endcap 30 1 M6 x 53mm Screw
8 2 Seat Carriage Bushing 31 1 Return Spring
9 1 Backrest 32 1 Lower Cable
10 1 Seat 33 4 M6 Nut
11 1 Upright 34 1 Flywheel Axle
12 1 Console 35 2 Flywheel Bearing
13 1 Flywheel 36 2 Flywheel Washer
14 1 Crank/Pulley 37 7 M6 x 16mm Screw
15 1 Left Side Shield 38 1 M6 Flat Washer
16 1 Right Side Shield 39 5 M4 x 25mm Screw
17 1 Side Shield Cover 40 10 M4 x 16mm Screw
18 1 Belt 41 8 M5 x 6ram Screw
19 1 "C" Magnet 42 2 M10 x 52mm Button Bolt
20 1 Left Pedal 43 8 M10 Split Washer
21 2 Pedal Strap 44 6 M 10 Nylon Locknut
22 1 Right Pedal 45 1 Reed Switch Clamp
23 1 Hook 46 1 Reed Switch/Wire
Key No. Qty. Description
47 4 M10 x 66ram Button Bolt
48 2 M10 x 75mm Carriage Bolt
49 2 M10 x 80ram Button Bolt
50 1 M6 x 25mm Bolt
51 1 "U" Bracket
52 2 M6 Eyebolt
53 2 M6 Nylon Locknut
54 3 M8 Nylon Locknut
55 1 M6 Large Washer
56 1 Seat Endcap
57 2 M4 x 12mm Screw
58 1 Magnet
59 1 Cable Clamp
# 1 User's Manual
# 1 Allen Wrench
Note: "#" indicates a non-illustrated part.
Specifications are subject to change without
notice. See the back cover of this manual for infor-
mation about ordering replacement parts.
