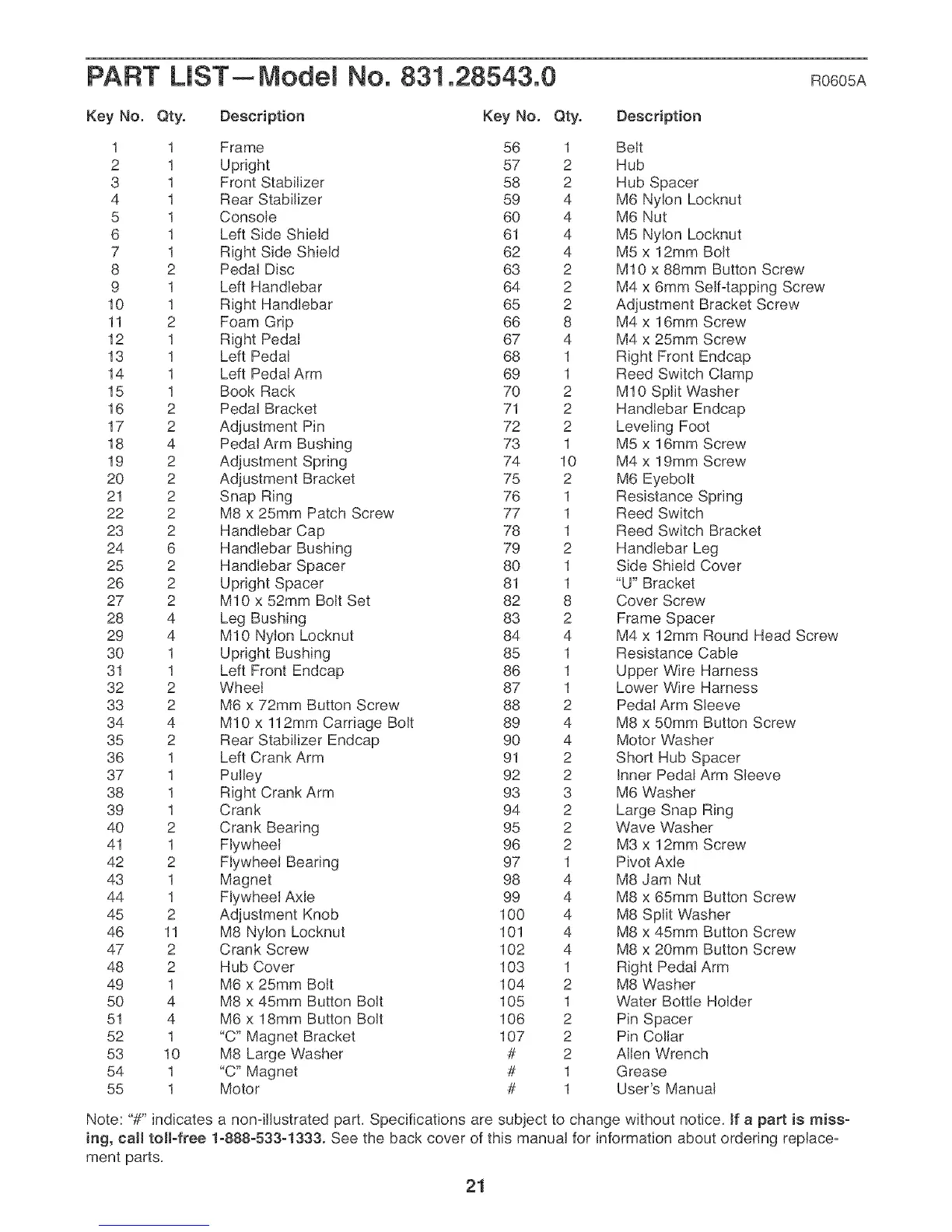

PART LiST--Model No. 831.28543.0 Ro6osA
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 56 1 Belt
2 1 Upright 57 2 Hub
3 1 Front Stabilizer 58 2 Hub Spacer
4 1 Rear Stabilizer 59 4 M6 Nylon Locknut
5 1 Console 60 4 M6 Nut
6 1 Left Side Shield 61 4 M5 Nylon Locknut
7 1 Right Side Shield 62 4 M5 x 12mm Bolt
8 2 Pedal Disc 63 2 M10 x 88mm Button Screw
9 1 Left Handlebar 64 2 M4 x 6mm Self-tapping Screw
10 1 Right Handlebar 65 2 Adjustment Bracket Screw
11 2 Foam Grip 66 8 M4 x 16mm Screw
12 1 Right Pedal 67 4 M4 x 25mm Screw
13 1 Left Pedal 68 1 Right Front Endcap
14 1 Left Pedal Arm 69 1 Reed Switch Clamp
15 1 Book Rack 70 2 M10 Split Washer
16 2 Pedal Bracket 71 2 Handlebar Endcap
17 2 Adjustment Pin 72 2 Leveling Foot
18 4 Pedal Arm Bushing 73 1 M5 x 16mm Screw
19 2 Adjustment Spring 74 10 M4 x 19mm Screw
20 2 Adjustment Bracket 75 2 M6 Eyebolt
21 2 Snap Ring 76 1 Resistance Spring
22 2 M8 x 25mm Patch Screw 77 1 Reed Switch
23 2 Handlebar Cap 78 1 Reed Switch Bracket
24 6 Handlebar Bushing 79 2 Handlebar Leg
25 2 Handlebar Spacer 80 1 Side Shield Cover
26 2 Upright Spacer 81 1 "U" Bracket
27 2 M10 x 52mm Bolt Set 82 8 Cover Screw
28 4 Leg Bushing 83 2 Frame Spacer
29 4 M10 Nylon Locknut 84 4 M4 x 12mm Round Head Screw
30 1 Upright Bushing 85 1 Resistance Cable
31 1 Left Front Endcap 86 1 Upper Wire Harness
32 2 Wheel 87 1 Lower Wire Harness
33 2 M6 x 72mm Button Screw 88 2 Pedal Arm Sleeve
34 4 M10 x 112mm Carriage Bolt 89 4 M8 x 50mm Button Screw
35 2 Rear Stabilizer Endcap 90 4 Motor Washer
36 1 Left Crank Arm 91 2 Short Hub Spacer
37 1 Pulley 92 2 Inner Pedal Arm Sleeve
38 1 Right Crank Arm 93 3 M6 Washer
39 1 Crank 94 2 Large Snap Ring
40 2 Crank Bearing 95 2 Wave Washer
41 1 Flywheel 96 2 M3 x 12mm Screw
42 2 Flywheel Bearing 97 1 Pivot Axle
43 1 Magnet 98 4 M8 Jam Nut
44 1 Flywheel Axle 99 4 M8 x 65mm Button Screw
45 2 Adjustment Knob 100 4 M8 Split Washer
46 11 M8 Nylon Locknut 101 4 M8 x 45mm Button Screw
47 2 Crank Screw 102 4 M8 x 20mm Button Screw
48 2 Hub Cover 103 1 Right Pedal Arm
49 1 M6 x 25mm Bolt 104 2 M8 Washer
50 4 M8 x 45mm Button Bolt 105 1 Water Bottle Holder
51 4 M6 x 18mm Button Bolt 106 2 Pin Spacer
52 1 "C" Magnet Bracket 107 2 Pin Collar
53 10 M8 Large Washer # 2 Allen Wrench
54 1 "C" Magnet # 1 Grease
55 1 Motor # 1 User's Manual
Note: "tP' indicates a nondJJustrated part. Specifications are subject to change without notice, ff a part is miss°
ing, call toll-free 1-888-533o1333. See the back cover of this manual for information about ordering replace-
ment parts.
