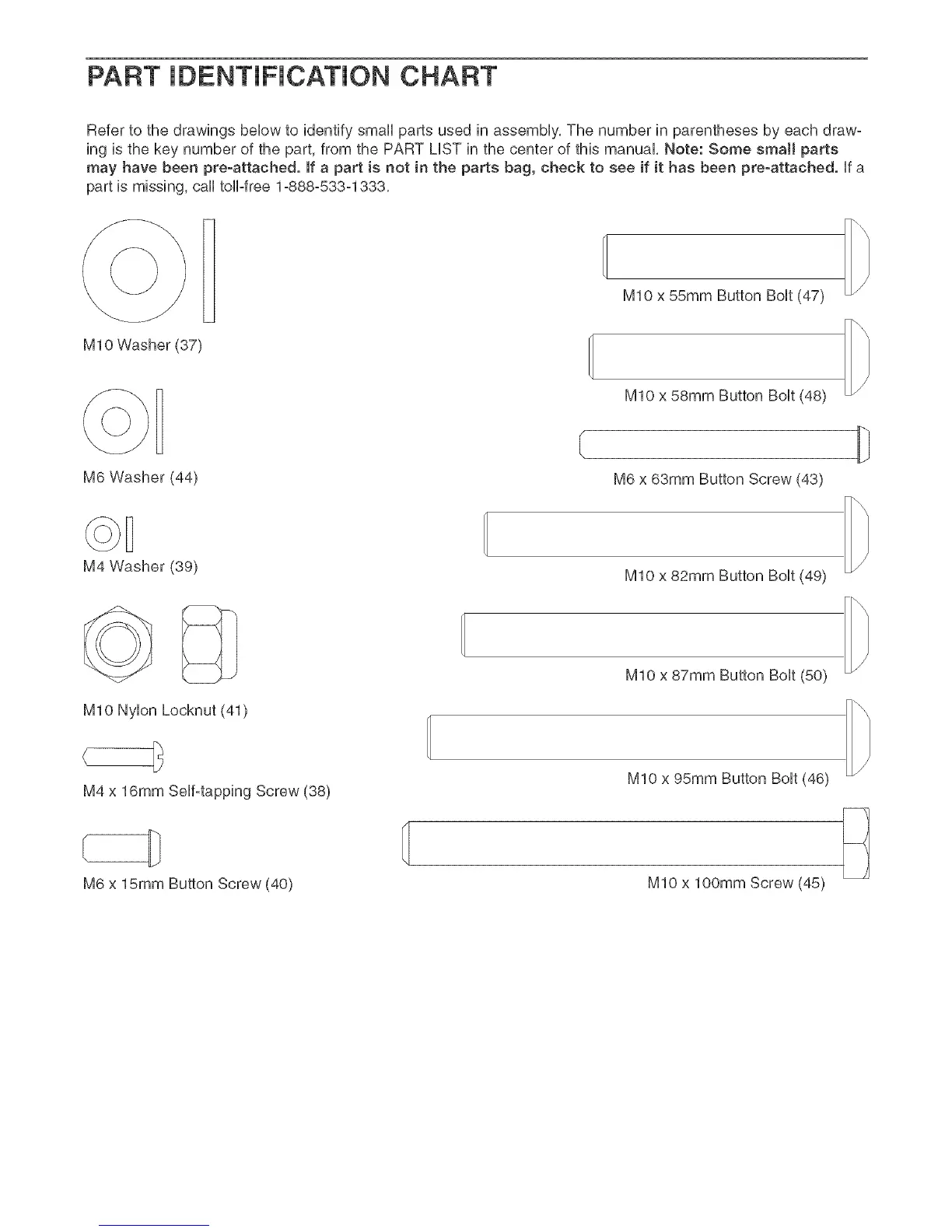

PART iDENTiFiCATiON CHART
Refer to the drawings beUowto identify small parts used in assemMy, The number in parentheses by each draw-
ing is the key number of the part, from the PART LUSTin the center of this manual Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. Ufa
part is missing, call toll-free 1o888o533ol 333,
MIO x 55mm Button BoUt(47)
MIO x 58mm Button BoUt(48)
M10 Washer (37)
H
M6 Washer (44)
M6 x 63mm Button Screw (43)
M4 Washer (39)
MIO Nylon Locknut (41)
M4 x 16mm Serf°tapping Screw (38)
M6 x 15mm Button Screw (4O)
MIO x 82mm Button Bolt (49)
MIO x 87mm Button Bolt (50)
MIO x 95mm Button Bolt (46)
MIO x lOOmm Screw (45)
