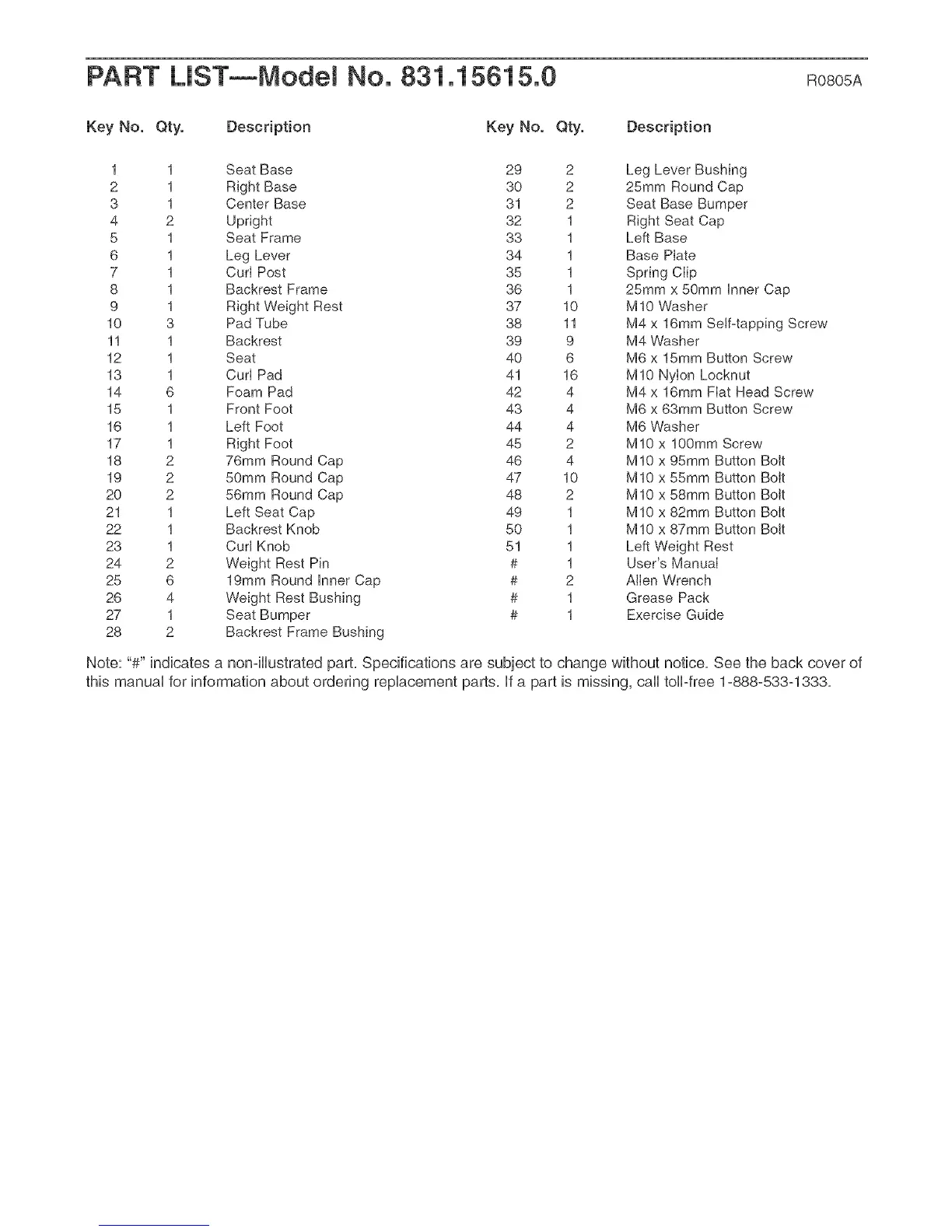

PART LiST--Model No, 831.15615.0 n080 A
Key No. Qty. Description Key No. Qty. Description
1 1 Seat Base 29 2 Leg Lever Bushing
2 1 Right Base 30 2 25mm Round Cap
3 1 Center Base 31 2 Seat Base Bumper
4 2 Upright 32 1 Right Seat Cap
5 1 Seat Frame 33 1 Left Base
6 1 Leg Lever 34 1 Base Plate
7 1 CurI Post 35 1 Spring Clip
8 1 Backrest Frame 36 1 25mm x 50mm Inner Cap
9 1 Right Weight Rest 37 10 MIO VVasher
10 3 Pad Tube 38 11 M4 x 16mm Self-tapping Screw
11 1 Backrest 39 9 M4 Washer
12 1 Seat 40 6 M6 x 15mm Button Screw
13 1 CurI Pad 41 16 MIO Nylon Locknut
14 6 Foam Pad 42 4 M4 x 16mm Fiat Head Screw
15 1 Front Foot 43 4 M6 x 63mm Button Screw
16 1 Left Foot 44 4 M6 VVasher
17 1 Right Foot 45 2 MIO x lOOmm Screw
18 2 76mm Round Cap 46 4 MIO x 95mm Button Bolt
19 2 50mm Round Cap 47 10 MIO x 55mm Button Bolt
20 2 56mm Round Cap 48 2 MIO x 58mm Button Bolt
21 1 Left Seat Cap 49 1 MIO x 82mm Button Bolt
22 1 Backrest Knob 50 1 MIO x 87mm Button Bolt
23 1 Curl Knob 51 1 Left Weight Rest
24 2 Weight Rest Pin # 1 User's ManuaI
25 6 19mm Round Inner Cap # 2 Allen Wrench
26 4 Weight Rest Bushing # 1 Grease Pack
27 1 Seat Bumper # 1 Exercise Guide
28 2 Backrest Frame Bushing
Note: "#" indicates a non-HUustratedpart, Specifications are subject to change without notice, See the back cover of
this manuaUfor information about ordering repUacement parts, Ufa part is missing, call toll-free 1o888o533o1333,
