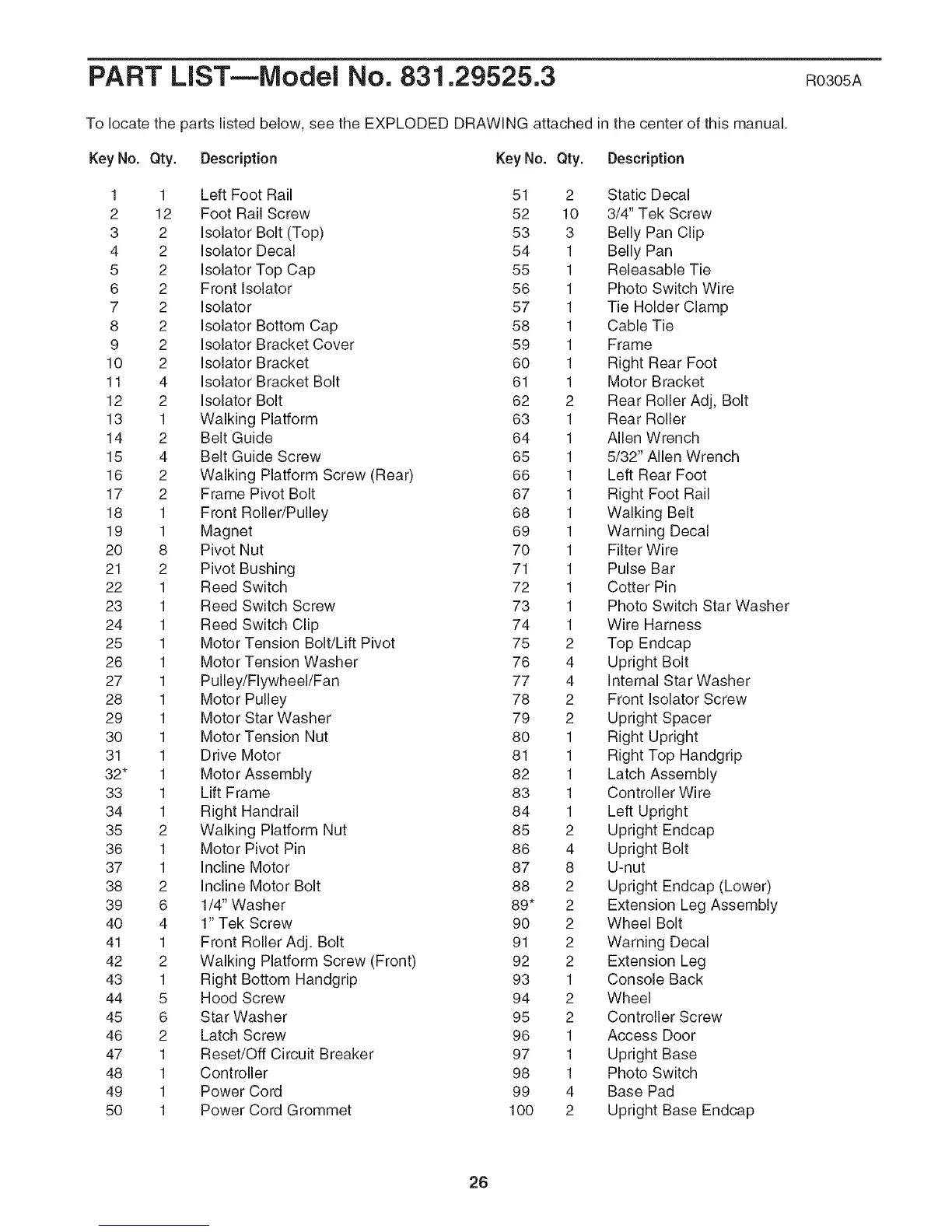

PART LiST--Model No. 831.29525.3 RO305A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 1 Left Foot Rail 51 2 Static Decal
2 12 Foot Rail Screw 52 10 3/4" Tek Screw
3 2 Isolator Bolt (Top) 53 3 Belly Pan Clip
4 2 Isolator Decal 54 1 Belly Pan
5 2 Isolator Top Cap 55 1 Releasable Tie
6 2 Front Isolator 56 1 Photo Switch Wire
7 2 Isolator 57 1 Tie Holder Clamp
8 2 Isolator Bottom Cap 58 1 Cable Tie
9 2 Isolator Bracket Cover 59 1 Frame
10 2 Isolator Bracket 60 1 Right Rear Foot
11 4 Isolator Bracket Bolt 61 1 Motor Bracket
12 2 Isolator Bolt 62 2 Rear Roller Adj, Bolt
13 1 Walking Platform 63 1 Rear Roller
14 2 Belt Guide 64 1 Allen Wrench
15 4 Belt Guide Screw 65 1 5/32" Allen Wrench
16 2 Walking Platform Screw (Rear) 66 1 Left Rear Foot
17 2 Frame Pivot Bolt 67 1 Right Foot Rail
18 1 Front Roller/Pulley 68 1 Walking Belt
19 1 Magnet 69 1 Warning Decal
20 8 Pivot Nut 70 1 Filter Wire
21 2 Pivot Bushing 71 1 Pulse Bar
22 1 Reed Switch 72 1 Cotter Pin
23 1 Reed Switch Screw 73 1 Photo Switch Star Washer
24 1 Reed Switch Clip 74 1 Wire Harness
25 1 Motor Tension Bolt/Lift Pivot 75 2 Top Endcap
26 1 Motor Tension Washer 76 4 Upright Bolt
27 1 Pulley/Flywheel/Fan 77 4 Internal Star Washer
28 1 Motor Pulley 78 2 Front Isolator Screw
29 1 Motor Star Washer 79 2 Upright Spacer
30 1 Motor Tension Nut 80 1 Right Upright
31 1 Drive Motor 81 1 Right Top Handgrip
32* 1 Motor Assembly 82 1 Latch Assembly
33 1 Lift Frame 83 1 Controller Wire
34 1 Right Handrail 84 1 Left Upright
35 2 Walking Platform Nut 85 2 Upright Endcap
36 1 Motor Pivot Pin 86 4 Upright Bolt
37 1 Incline Motor 87 8 U-nut
38 2 Incline Motor Bolt 88 2 Upright Endcap (Lower)
39 6 1/4" Washer 89* 2 Extension Leg Assembly
40 4 1" Tek Screw 90 2 Wheel Bolt
41 1 Front Roller Adj. Bolt 91 2 Warning Decal
42 2 Walking Platform Screw (Front) 92 2 Extension Leg
43 1 Right Bottom Handgrip 93 1 Console Back
44 5 Hood Screw 94 2 Wheel
45 6 Star Washer 95 2 Controller Screw
46 2 Latch Screw 96 1 Access Door
47 1 Reset/Off Circuit Breaker 97 1 Upright Base
48 1 Controller 98 1 Photo Switch
49 1 Power Cord 99 4 Base Pad
50 1 Power Cord Grommet 100 2 Upright Base Endcap
26
