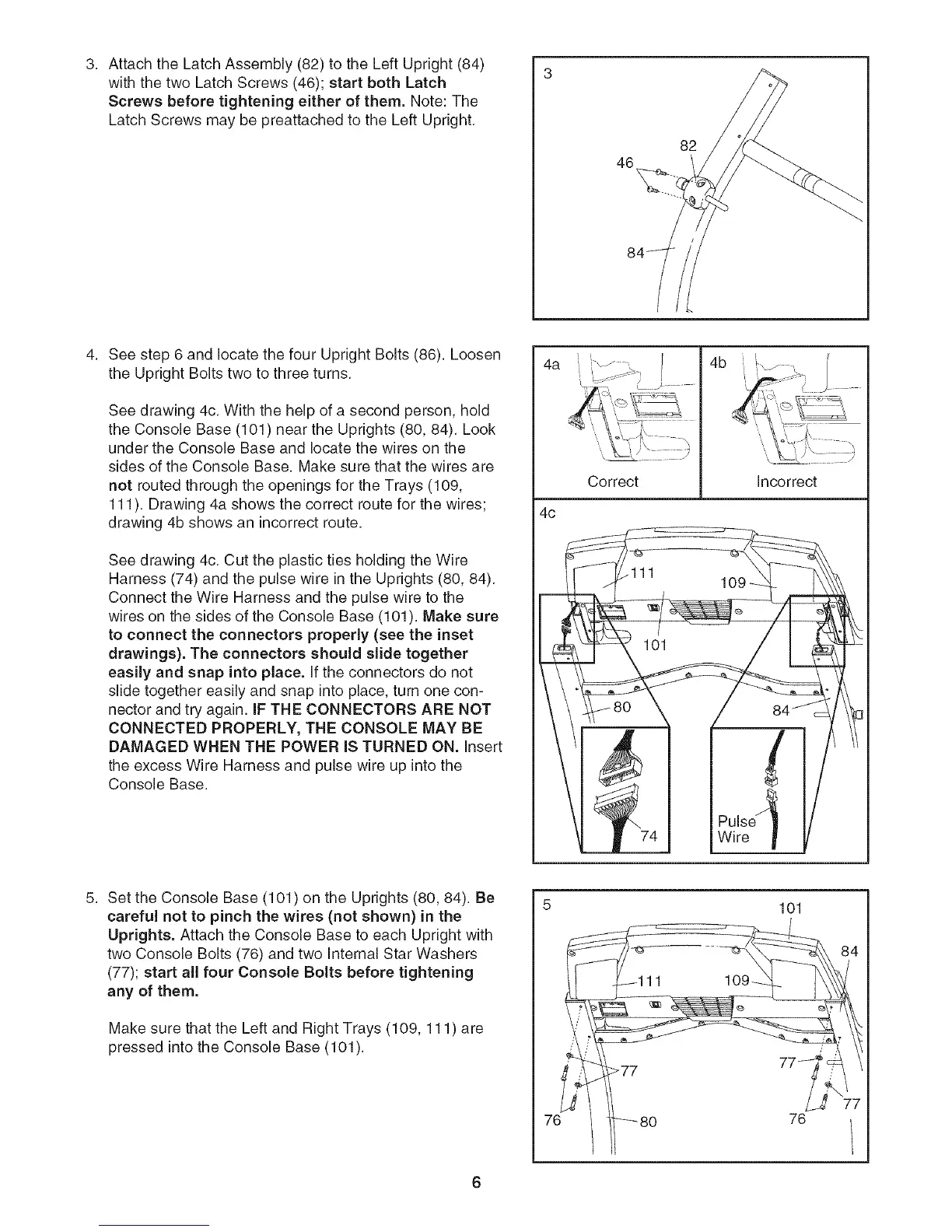

3. 3
AttachtheLatchAssembly(82)totheLeftUpright(84)
withthetwoLatchScrews(46);startbothLatch
Screwsbeforetighteningeither of them. Note: The
Latch Screws may be preattached to the Left Upright.
46
82
See step 6 and locate the four Upright Bolts (86). Loosen
the Upright Bolts two to three turns.
See drawing 4c. With the help of a second person, hold
the Console Base (101) near the Uprights (80, 84). Look
under the Console Base and locate the wires on the
sides of the Console Base. Make sure that the wires are
not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires;
drawing 4b shows an incorrect route.
See drawing 4c. Cut the plastic ties holding the Wire
Harness (74) and the pulse wire in the Uprights (80, 84).
Connect the Wire Harness and the pulse wire to the
wires on the sides of the Console Base (101). Make sure
to connect the connectors properly (see the inset
drawings). The connectors should slide together
easily and snap into place. If the connectors do not
slide together easily and snap into place, turn one con-
nector and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN THE POWER IS TURNED ON. insert
the excess Wire Harness and pulse wire up into the
Console Base.
4a
4c
h _ ......
\
Correct
4b !
\
Incorrect
Set the Console Base (101) on the Uprights (80, 84). Be
careful not to pinch the wires (not shown) in the
Uprights. Attach the Console Base to each Upright with
two Console Bolts (76) and two internal Star Washers
(77); start all four Console Bolts before tightening
any of them.
Make sure that the Left and Right Trays (109, 111) are
pressed into the Console Base (101).
76
101
76
To Next Page
