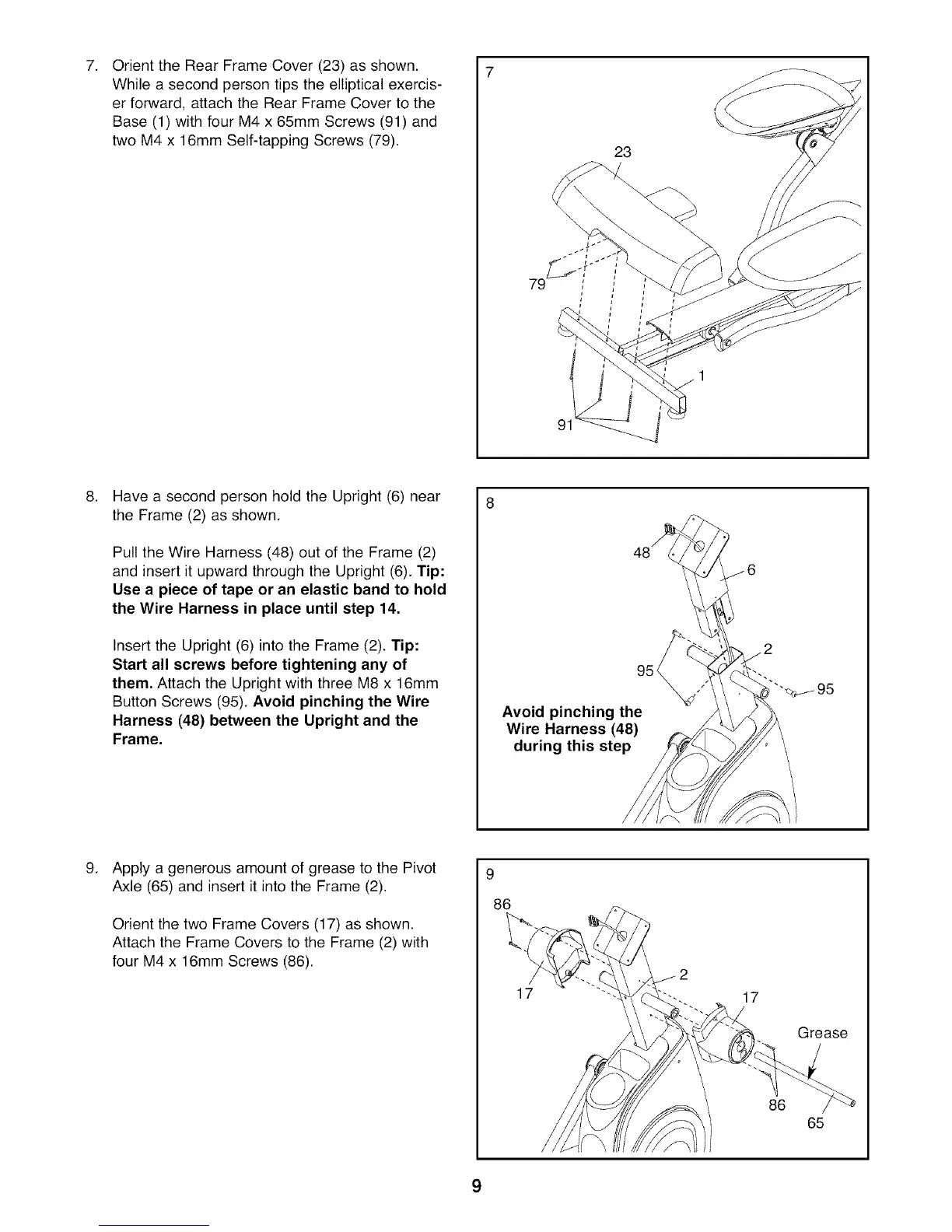

7. 7
OrienttheRearFrameCover(23)asshown.
Whilea secondpersontipstheellipticalexercis-
erforward,attachtheRearFrameCovertothe
Base(1)withfourM4x65mmScrews(91)and
twoM4x16mmSelf-tappingScrews(79).
23
79
HaveasecondpersonholdtheUpright(6)near
theFrame(2)asshown.
PulltheWireHarness(48)outoftheFrame(2)
andinsertit upwardthroughtheUpright(6).Tip:
Usea pieceof tapeor anelasticbandto hold
theWireHarnessin placeuntil step14.
InserttheUpright(6)intotheFrame(2).Tip:
Startallscrewsbeforetighteninganyof
them.AttachtheUprightwiththreeM8x16mm
ButtonScrews(95).AvoidpinchingtheWire
Harness(48)betweentheUprightandthe
Frame.
Avoid pinching the
Wire Harness (48)
during this step
.
Apply a generous amount of grease to the Pivot
Axle (65) and insert it into the Frame (2).
Orient the two Frame Covers (17) as shown.
Attach the Frame Covers to the Frame (2) with
four M4 x 16mm Screws (86).
9
86
17
17
86
Grease
65
9
