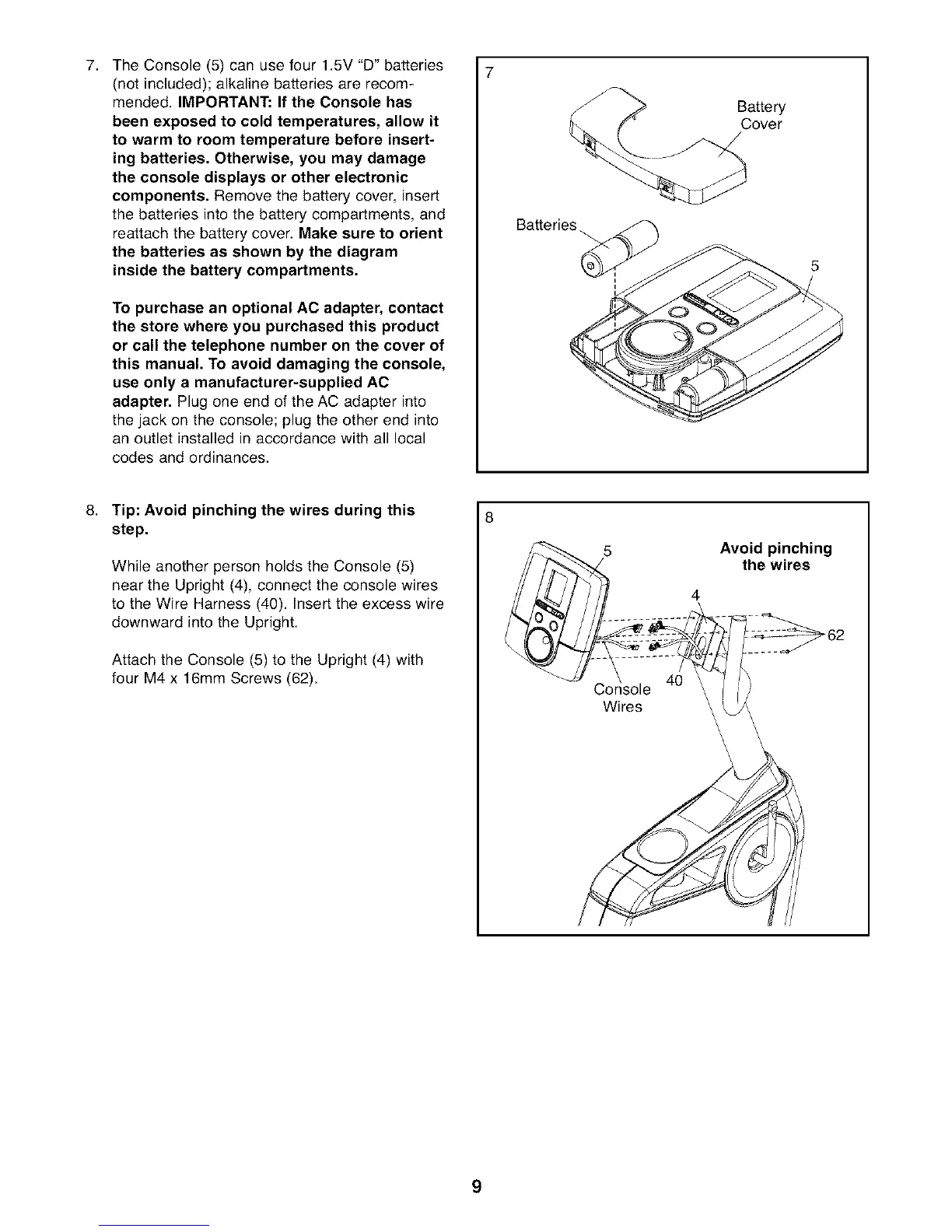

The Console (5) can use four 1.5V "D" batteries
(not included); alkaline batteries are recom-
mended. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the battery cover, insert
the batteries into the battery compartments, and
reattach the battery cover. Make sure to orient
the batteries as shown by the diagram
inside the battery compartments.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
Batteries.
Battery
Cover
5
8. Tip: Avoid pinching the wires during this
step.
While another person holds the Console (5)
near the Upright (4), connect the console wires
to the Wire Harness (40). Insert the excess wire
downward into the Upright.
Attach the Console (5) to the Upright (4) with
four M4 x 16mm Screws (62).
5
Wires
Avoid pinching
the wires
9
To Next Page
