Manual Profound VIBRA-series, version 2.00
24
==.= Hz
The frequency of 1 of the 3 channels shown can also be ==.=. In that case no frequency is available
in that specific time interval. Frequencies above 0.5 Hz are taken into account.
The displacement option / u / is only available with the VIBRA
+
:

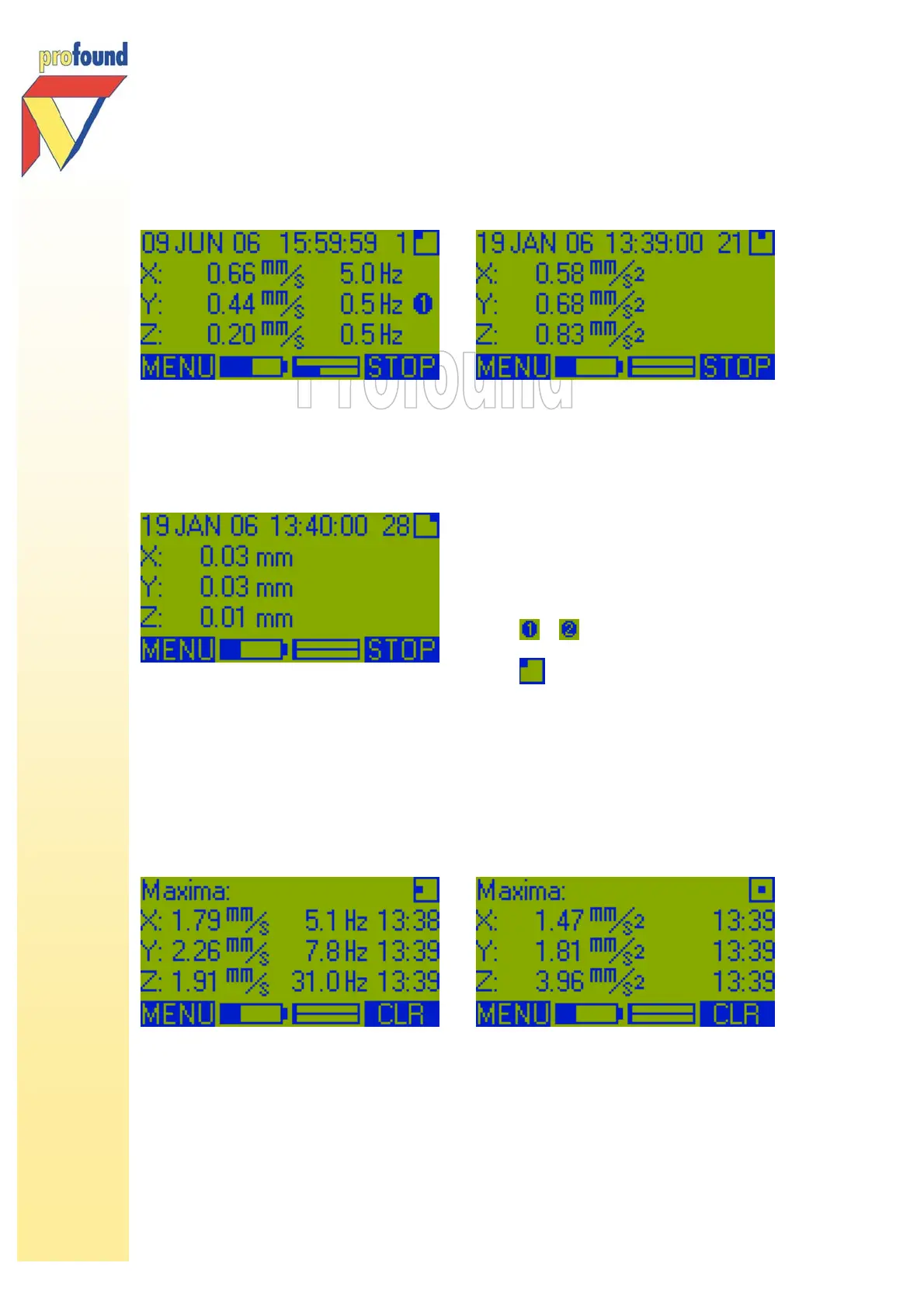

5.2.1.2 Maxima
Press to view the maximum levels. These are the highest measured values since the measurement
has been started or since resetting the maximum value(s). These values include the frequency in the
x-, y- or z-direction with date and time. By pressing 2 CLR , values shown are reset to zero (without
loss of data).
Explanation:
maximum / v / = peak velocity in mm/s
frequency = frequency in Hz
maximum / a / = peak acceleration in mm/s
2
maximum / u / = peak displacement in mm
or = displayed dominant
frequency
= menu locator, use the arrow
keys to view all information
provided
