Document # MAN0001 Issue 4.29 Page 29 of 34
Installation
Mounting
The optimum location for the controller
depends on the application. As a general
Guide:
• Avoid mounting two RFID readers
opposite each other on the same wall.
Stagger them by one reader width.
• Mount at a convenient height for all users.
Think about short and tall users and
potentially those in wheelchairs.

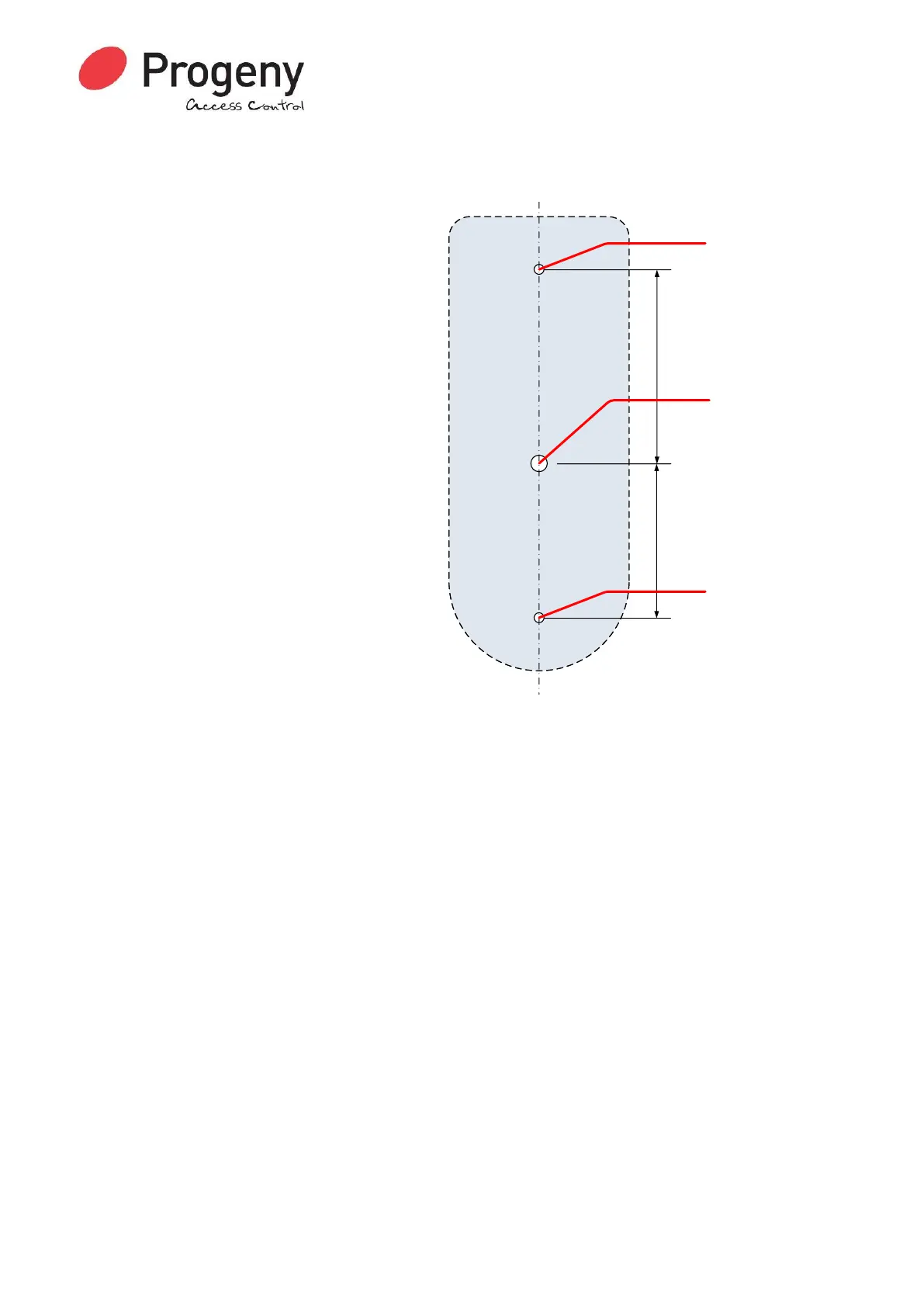

1. Drill a cable entry hole as shown in
this diagram
2. Draw a line vertically up 58.7mm and
down 46.7mm. These are the centres
for the two mounting screws.
3. Pass the cable through the light pipe
back plate & make all connections to
C4.
4. Screw the C4 Controller Into place
over the light pipe.
5. Test operation of the system before
applying the membrane label.
N.B. The drawing here is not to scale. Do not
use it as a template.
