Document # MAN0001 Issue 4.29 Page 33 of 34

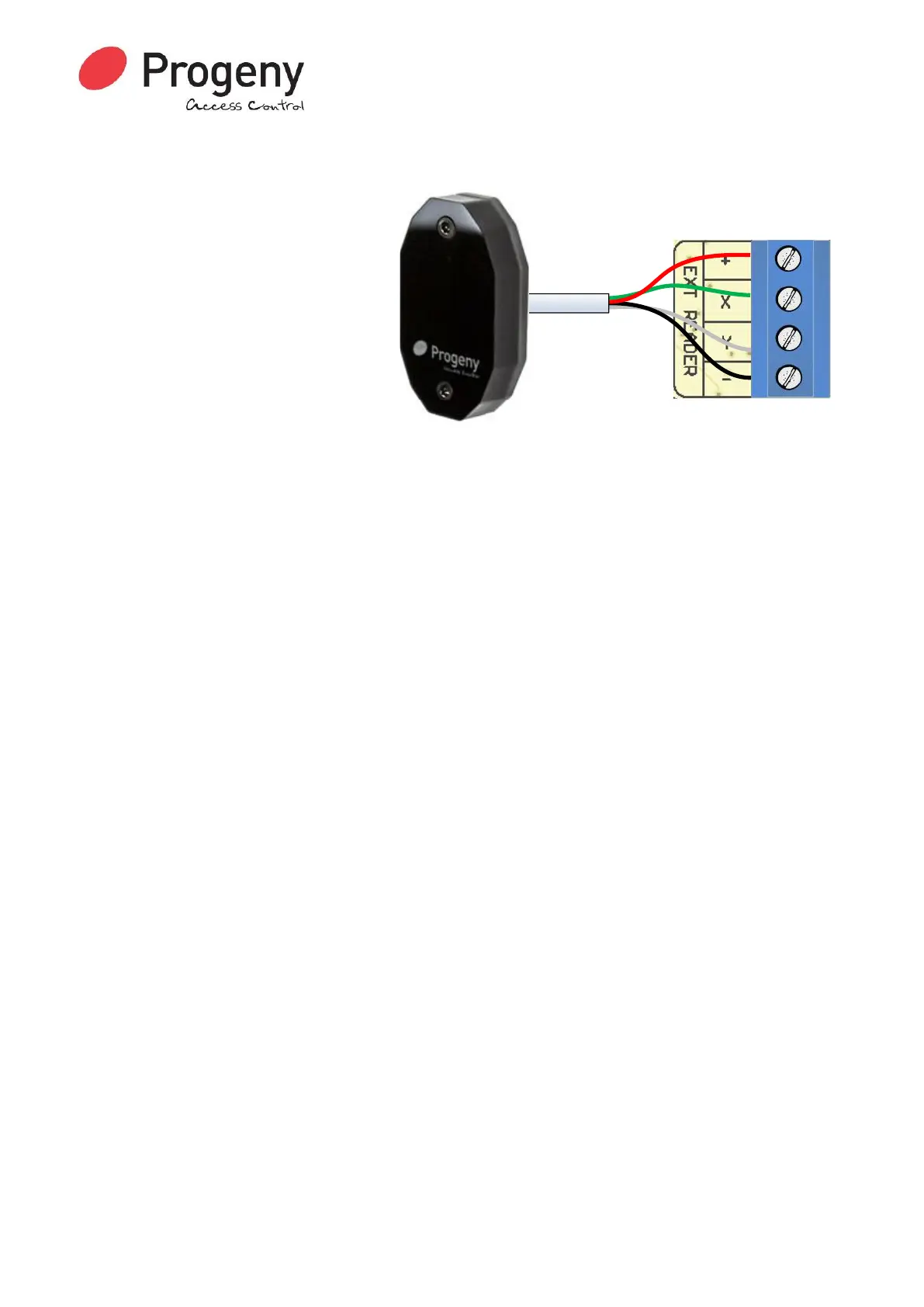

External Reader / Keypad
Only one reader may be connected to the external reader input.
Cable & Connections:
Always use screened, none twisted
cable. Don’t exceed the 100m cable
limitation.
Door Alarm
The door failed to close alarm is
indicated on the Controller Keypad
and (if connected) the External
Reader. The Strobe light is flashed
and the sounder an alarm tone is
played from the speaker.
This alarm cancels when the door is
closed.
No additional connections are required to the external reader for this. However, the alarm does
depend on the door sensor connection to be fitted.
Specification
Controller Memory
RFID Credentials 200
Reader Technologies Crystal Proximity RFID, Crystal RFID with Keypad
Reader supplies 12V @ 1.0 A current limited
Access code 1 to 8 digits
Controller
Dimensions: 55mm, 137mm, 25mm
Locking Device Control
Lock Output 12V DC Applied Or Removed
Lock Timer 1 to 99 seconds
0 = Toggle mode
Anti-Tailgate Feature As standard
Inputs
Request to exit input Normally Open Contact
Door sensor input Closed Contact when Door Closed
Program Key switch Normally Open Contact
Status
LED Readers, Keypad
Power Supply
Supply 12V DC
