Document # MAN0001 Issue 4.29 Page 32 of 34
Inputs

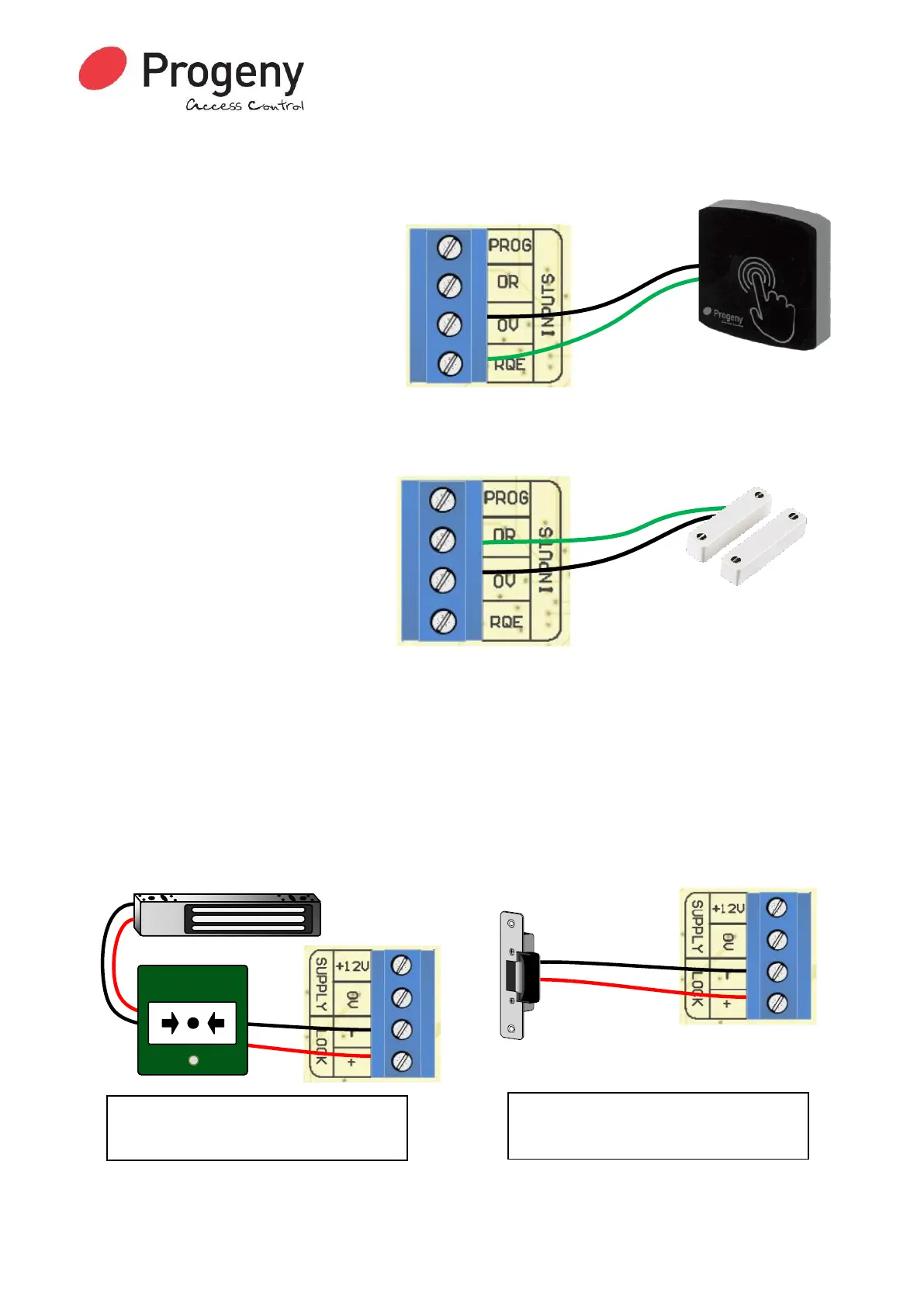

Request to Exit (RQE)
The RQE “Request to Exit” input is used
to trigger the lock release timer. The
input accepts a normally open voltage
free contact.
Generally, this input is used to provide
egress where the locking device does
not provide a mechanical override. Door
Magnets and Turnstiles are a couple of
examples.
This input may also be used to provide a remote opening; from a reception desk or a video or
intercom door entry system.
Door Sense (DR)
The Door Sense input is used to detect
when the door is fully closed. The
voltage free contact should be closed
when the door is closed.
The example shown here is a separate
sensor & magnet. Some locking
devices including Door Magnets have
a Door Closed Sensor built in.
The use of door monitoring is optional
but there are many features that make use of this input including:
• Auto Relock
• Door Alarm (Failed to Close Alarm), (PDO)
If the door is not being monitored, a wire link can be fitted between the “DR” input and the “0V”
terminals or simply set the “Door Alarm Time” (Engineers Function 03) to 0.
Lock Output
The Lock output drive mode can be set using engineers function 14.
