3.2 Monitor

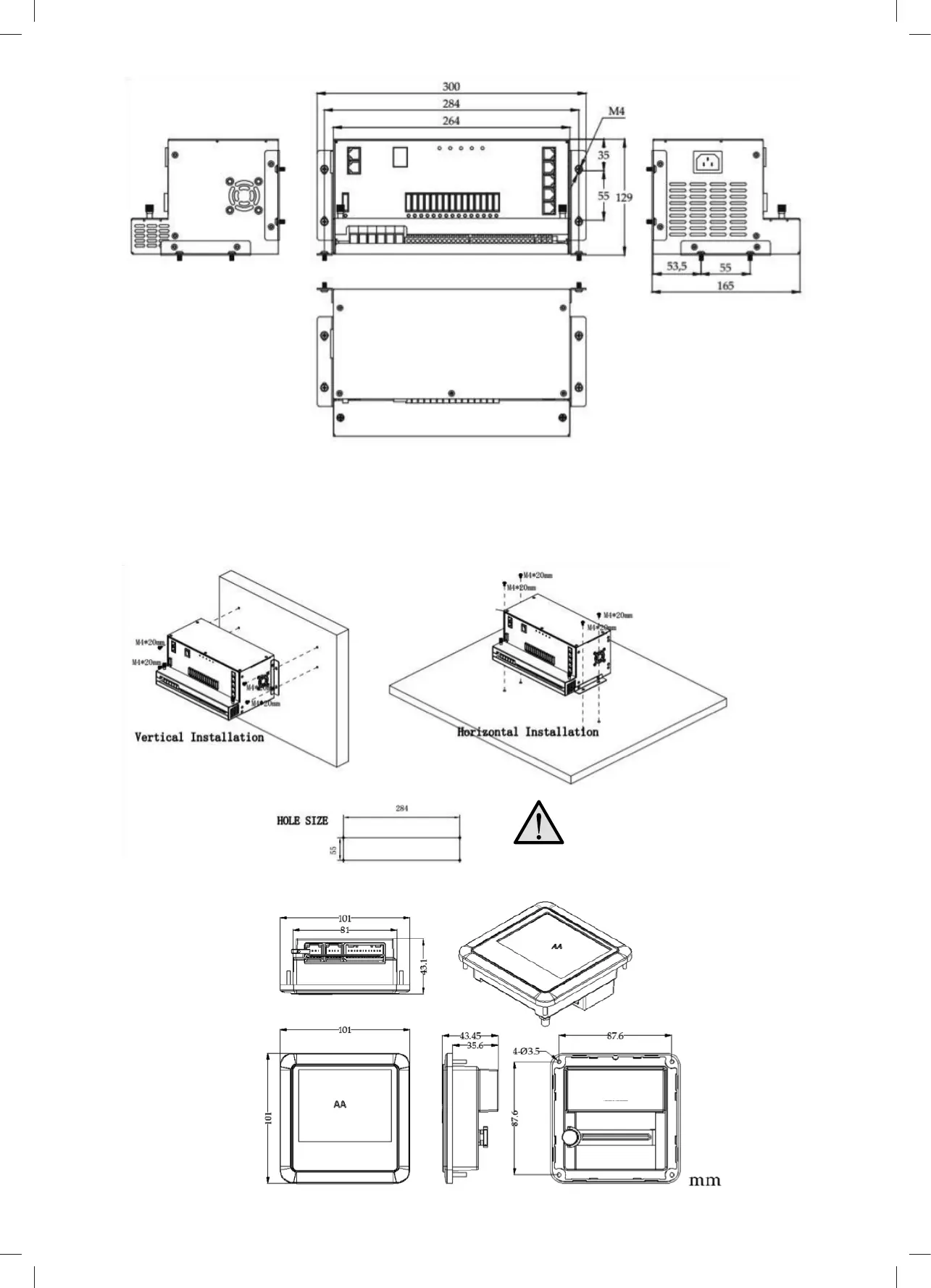

Figure 11 Dimension of Monitor PMLCD-BT (Unit:mm)
Installation:
PM335 can be installed on a horizontal surface or vertically on a wall. Please see following instructions:
Figure 10 Installation of PM335 (Unit: mm)
Ensure clearance on both sides of PM335 unit
upon installation. A recommended clearance of
5cm on each side.
Figure 9 Dimension of PM335 (Unit: mm)
