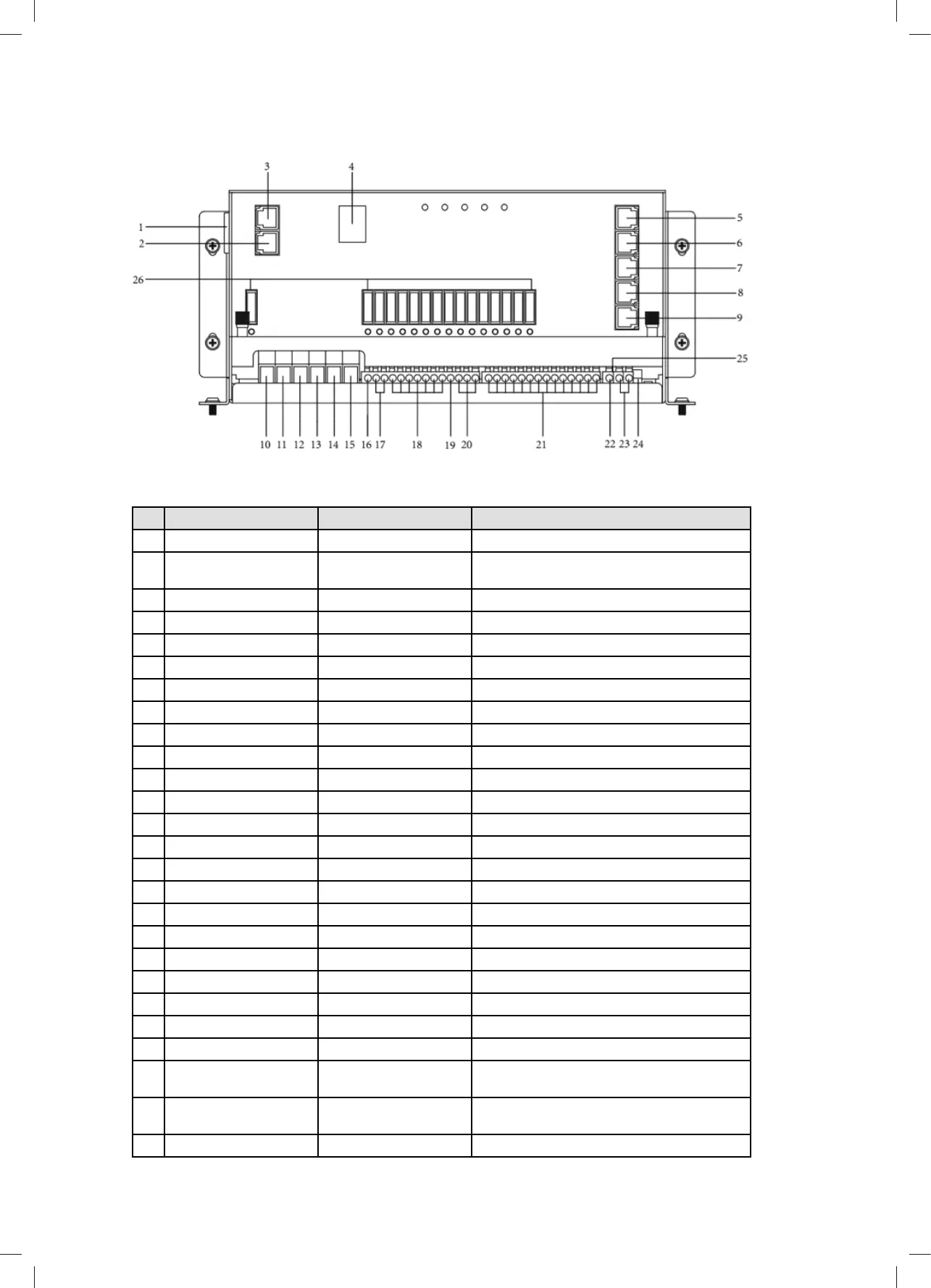

Figure 8 Front panel of PM335
Table 3 Categorised outputs
N
O
LABEL DEFINITION DESCRIPTION
1 AC Mains AC input port
2 Switch panel Comm port Connect to switch panel (Switch panel is not
available on PM300-BT)
3 LCD Display Comm port Connect to Monitor
4 Battery switch Service battery switch Manual battery switch
5 Fresh water tank 1 Connect to fresh water tank 1
6 Fresh water tank 2 Connect to fresh water tank 2
7 Tap water tank 3 Connect to tap water tank
8 Waste water tank 4 Connect to waste water tank
9 Battery sensor For temp compensation Connect to service battery+
10 PV+ Solar input Connect to solar panel + terminal
11 PV- Solar input Connect to solar panel - terminal
12 Starter Bat+ Starter battery+ Connect to starter battery+ (<20Vdc)
13 Service Bat+ Service battery+ Connect to service battery+ (<20Vdc)
14 Starter Bat- Starter battery- Connect to starter battery-
15 Service Bat- Service battery- Connect to service battery-
16 L1+ Step Connect to load of class D
17 L2+ ~ L3+ Connect to load of class C
18 L4+ ~ L10+ Connect to load of class B
19 L11+ Water pump Connect to Water pump+
20 L12+ ~ L14+ Connect to load of class B
21 L1- ~ L14- Connect to DC load -
22 D+ Point D+ input Connect to D+
23 Remote Switch Terminal block Connect to remote switch
24 Select Switch Dip switch Select local switch or remote switch
(NOTE: open the upper cover board to operate)
25 Setting Dip switch Set the battery type and capacity
(NOTE: open the upper cover board to operate)
26 Fuse Fuses and fuse failure indication
