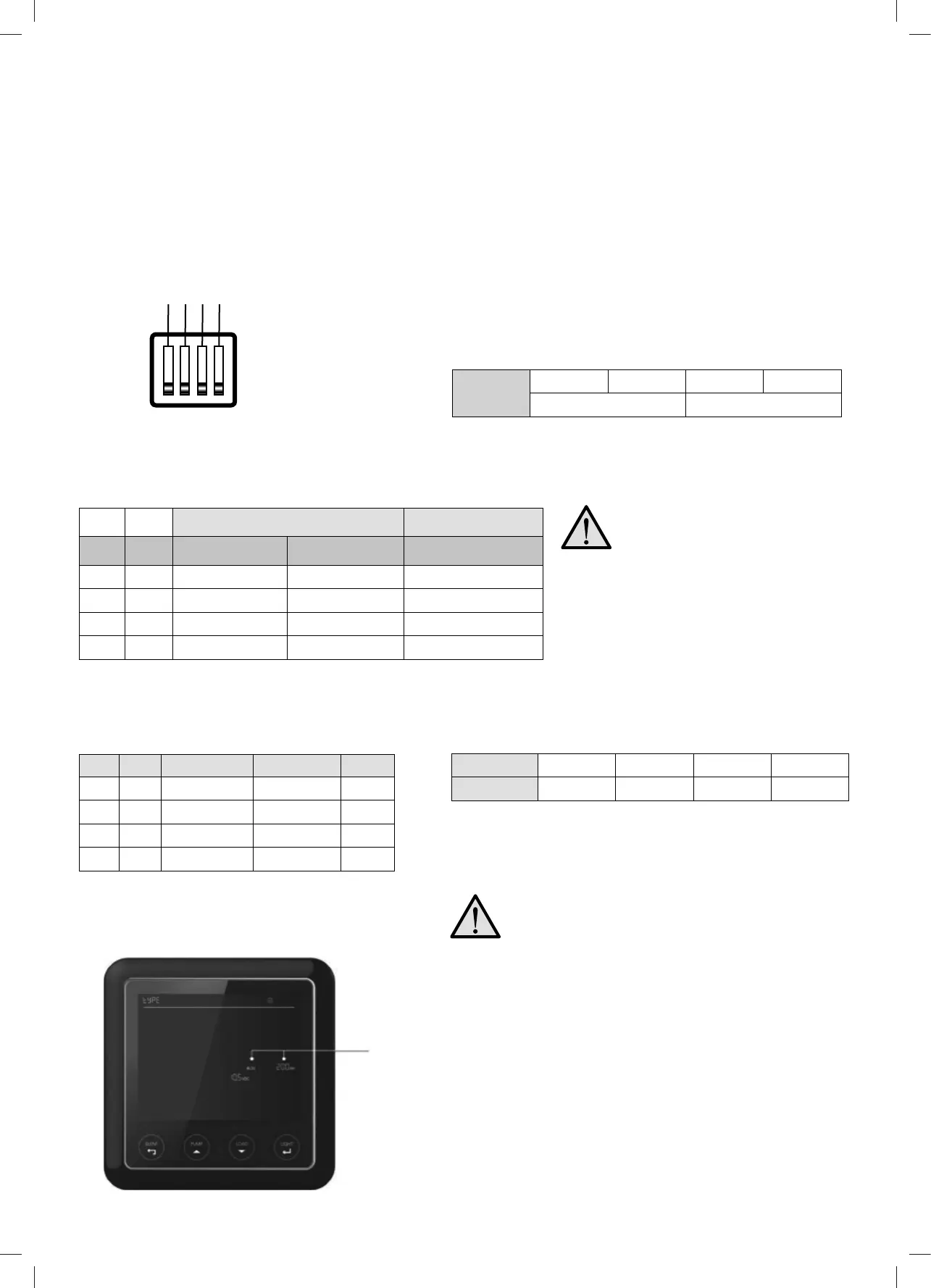

18
Table 12 Battery capacity setting by dip switch
Table 13 Battery type setting by dip switch
Table 14 Factory default setting
DIP SWITCH
1 2 3 4
STATUS
OFF OFF OFF OFF
Factory default setting:
Congure the Max Charging Current of PM335:
Congure the Battery Type Installed:
When choosing max charging current,
please take into consideration
the consumption of the DC load
connected with the system.
Settings of ‘Battery Type’ and ‘Battery Capacity’ need to be
the same at both the PM335 dip switch and the monitor.
DS3 DS4 BATTERY TYPE ABSORPTION FLOAT
OFF OFF AGM 14.4V 13.5V
OFF ON GEL 14.1V 13.5V
ON OFF LFP (LiFePO
4
) 14.4V 13.5V
ON ON WET 14.7V 13.7V
Figure 26 Reminder when conflict setting between PM335 and monitor
When the battery type and capacity setting on he monitor is not
the same as PM335 dip switch, the icons will be flashing.
Figure 25 Dip Switch of PM335
Table 11 Dip Switch definition
6. OPERATION
If there is conict between the conguration on PM300-BT and the monitor, the monitor will ash as a reminder.
6.1 Conguration on PM335
Conguration of the battery type and capacity can be done through the App, Monitor or PM335 master power unit.
6.1.1 Charging Current and Battery Type
DIP
SWITCH
1 2 3 4
Charging Current Battery Type
Dip switch denitions:
1 2 3 4
ON
OFF
LEAD ACID LITHIUM
DS1 DS2 AC CHARGE SOLAR CHARGE AC / SOLAR CHARGE
ON ON 10A 20A 30A
ON OFF 15A 30A 30A
OFF ON 20A 30A 30A
OFF OFF 30A 30A 30A
