5
1.1 Features
• Smart battery charger 12V 35A (30A for charging current)
• Multi stage adaptive charging algorithm
• Active Power Factor Correction (PFC) charging
• Temperature compensation charging
• Voltage compensation charging
• Float Charge for starter battery
• Solar charge controller (MPPT), 30A
• 14 built in fused outputs
• Charging from Alternator at 12V 60A - 60A continuously, 100A 30mins
• Low battery voltage protection
• Built-in battery switch to isolate the battery when in storage
• Built-in shunt for precise battery measurement
• 1 water pump control with up to 4 connections for water sensors
• Thermal control fan
• Spring terminal and screw terminal
• T-bus compatible

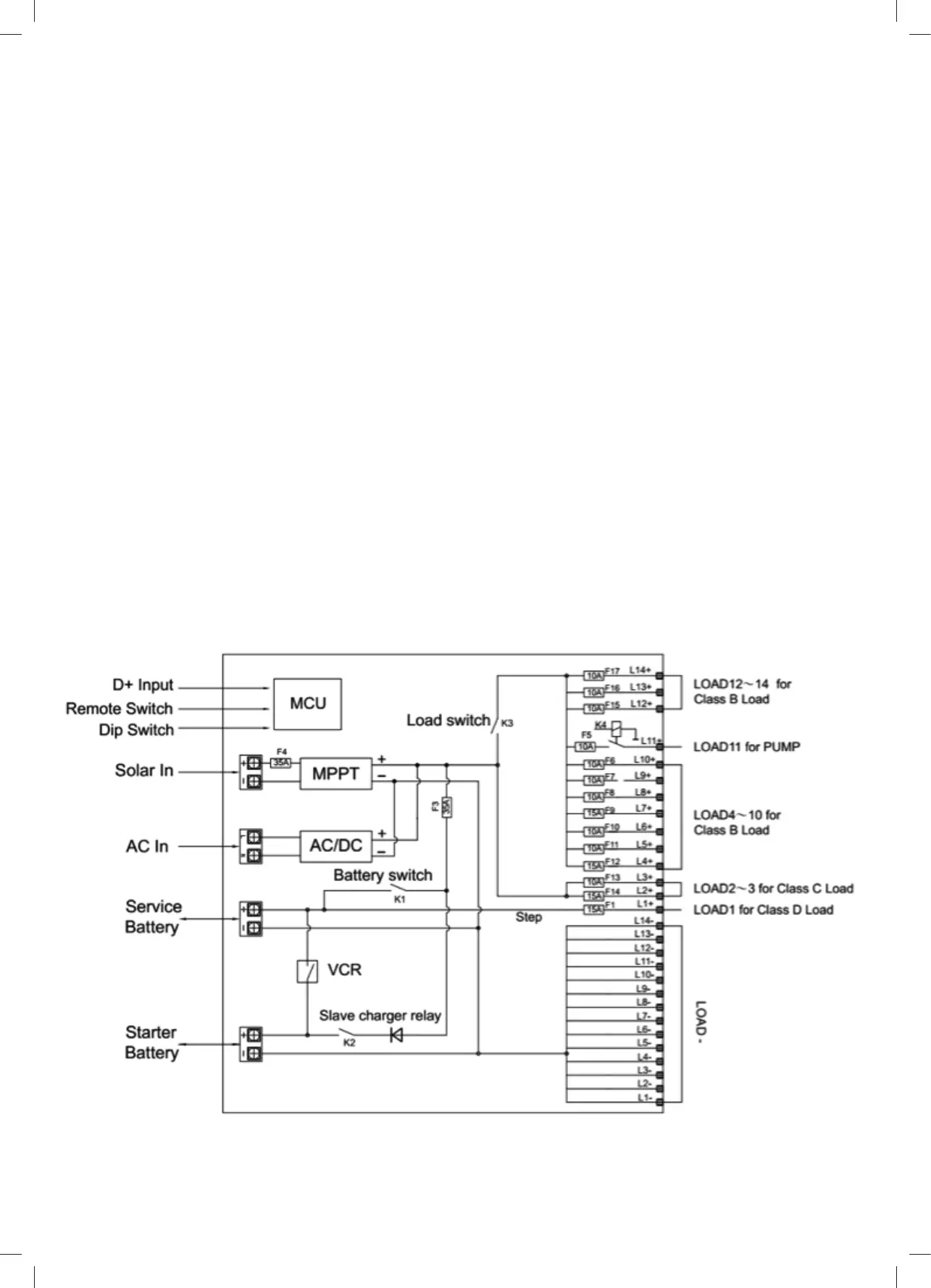

Figure 2 System Schematic
