3. Light ON+ timer
Working time 1 (T1) Load working period after light control turns
ON load
Working time 2 (T2) Load working period before light control
turns off load
Night time Total night time controller get from
calculation (≥3h)
4. Time control
Working time 1 (T1) Control on/off time of load through
real-time clock mode.
Working time 2 (T2) Realize the dual timer function of the
load control through real-time clock mode.

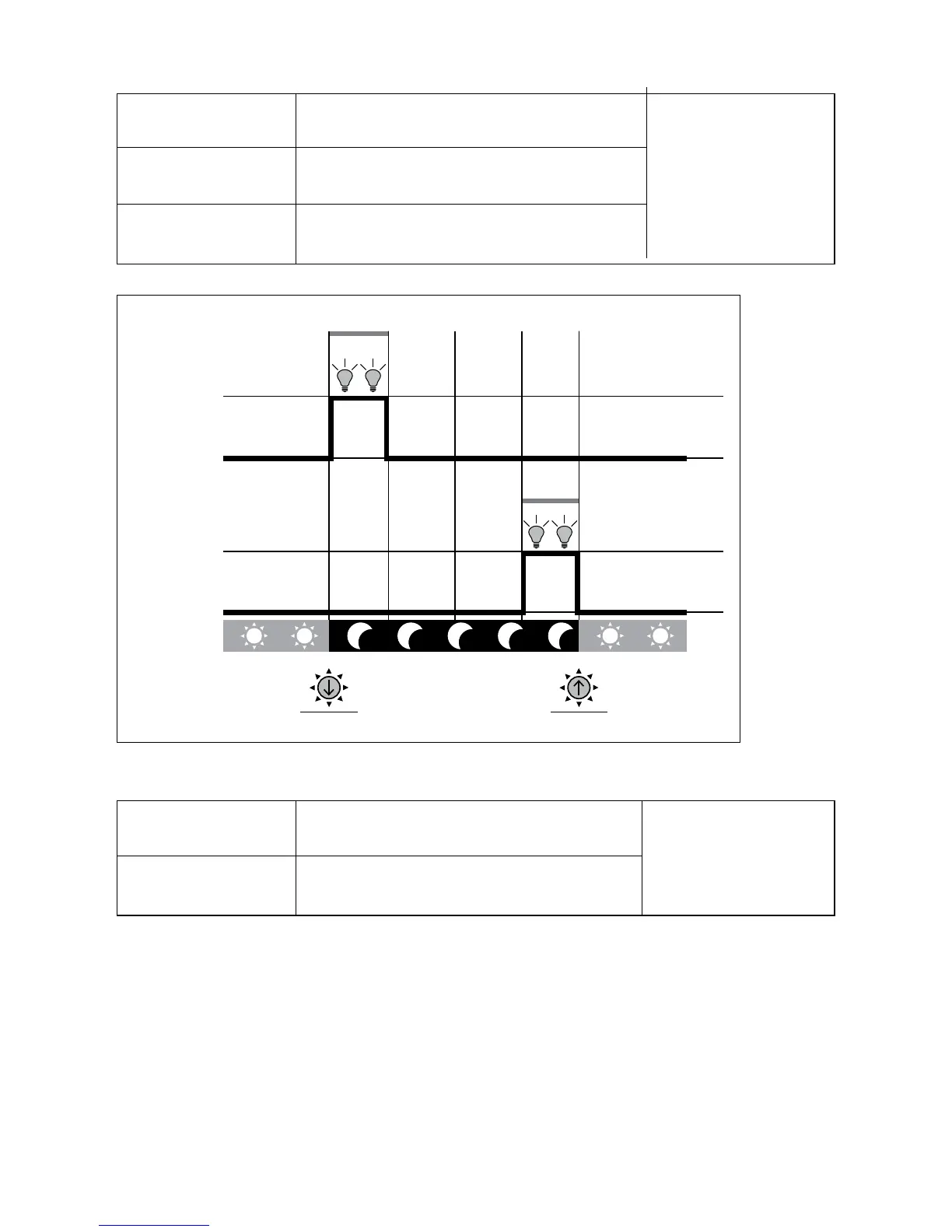

Light ON
Working Time 1
Working Time 2
Night Time
Dusk Dawn
Light OFF
Light ON
Light OFF
Working time 1 is the
compulsory load working
time interval. Working
time 2 is an optional.
The real working time
of T2 depends on the
Night time, and the
length of T1, T2.
