Projecta SC300D User Manual

3

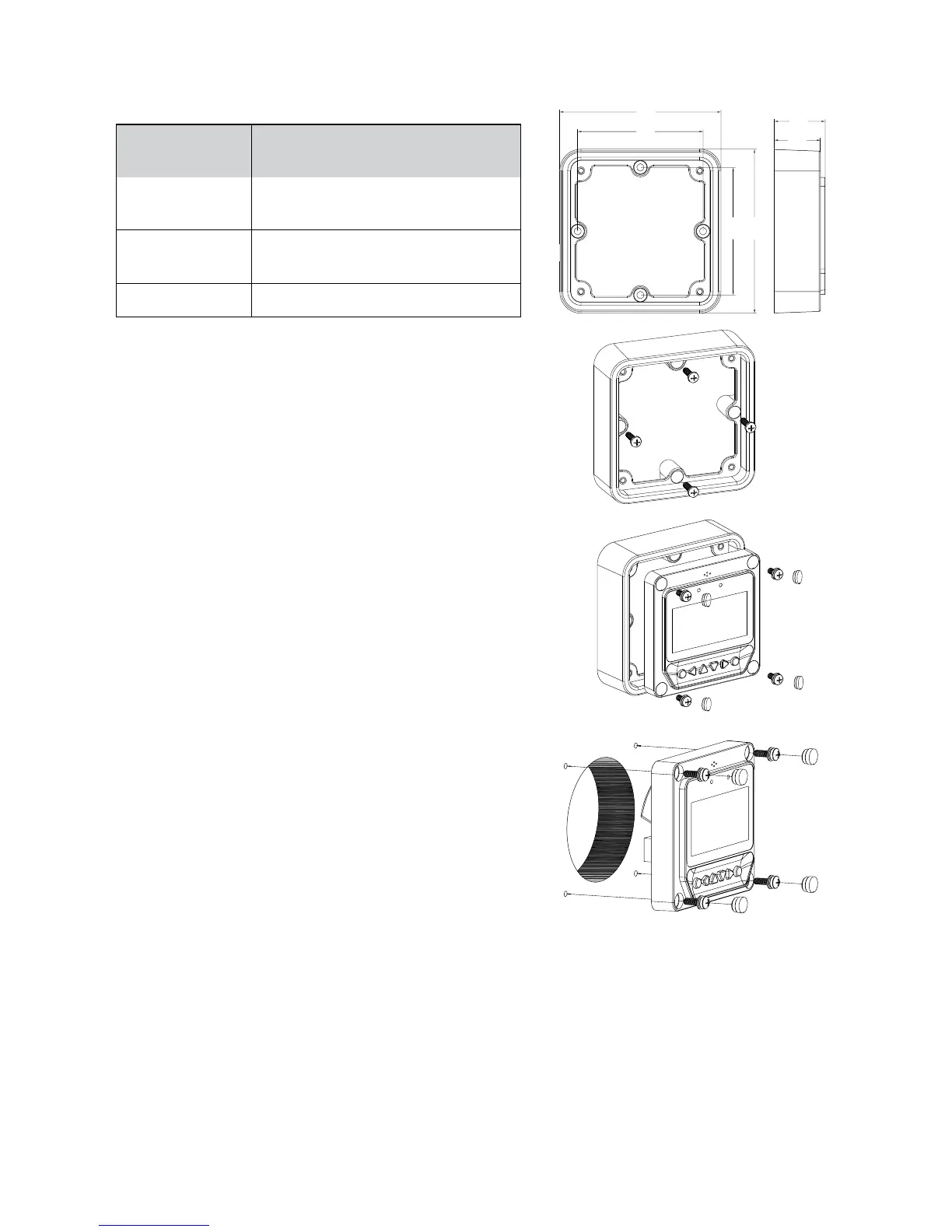

INSTALLATION
Frame Mount Dimensions
Surface Mount Installation
Step1: Locate and drill screw holes based
on the frame mounting dimension
of the base, and erect the plastic
expansion bolts.
Step 2: Use four ST4.2×32 self-tapping screws
to fix the Frame.
Step 3: Use four M4×8 pan head screws to
mount the frame to the surface.
Step 4: Mount the four associated screw plugs
into the screw holes.
Flush Mount Installation
Step 1: Locate and drill screw holes based on
the installation size of the surface.
Step 2: Use four M4×8 cross recessed pan
head screws with M4 nuts to mount
the remote control unit to the
chosen surface.
Step 3: Mount the four associated white
screw plugs into the screw holes.
Note: Take full consideration of the plugging/
unplugging space of the communication cable
and the length of the cable during installation
to see if they are appropriate.
114
(4.49)
36.1
(1.42)
114
(4.49)
88.6
(3.49)
32.7
(1.29)
Mechanical Parameter
parameter
Overall 114 x 114 x 32.7mm
dimension 4.49 x 4.49 x 1.29 inches
Mounting 88.6x 88.6mm
dimension 3.49 x 3.49 inches
Terminal 4.3
