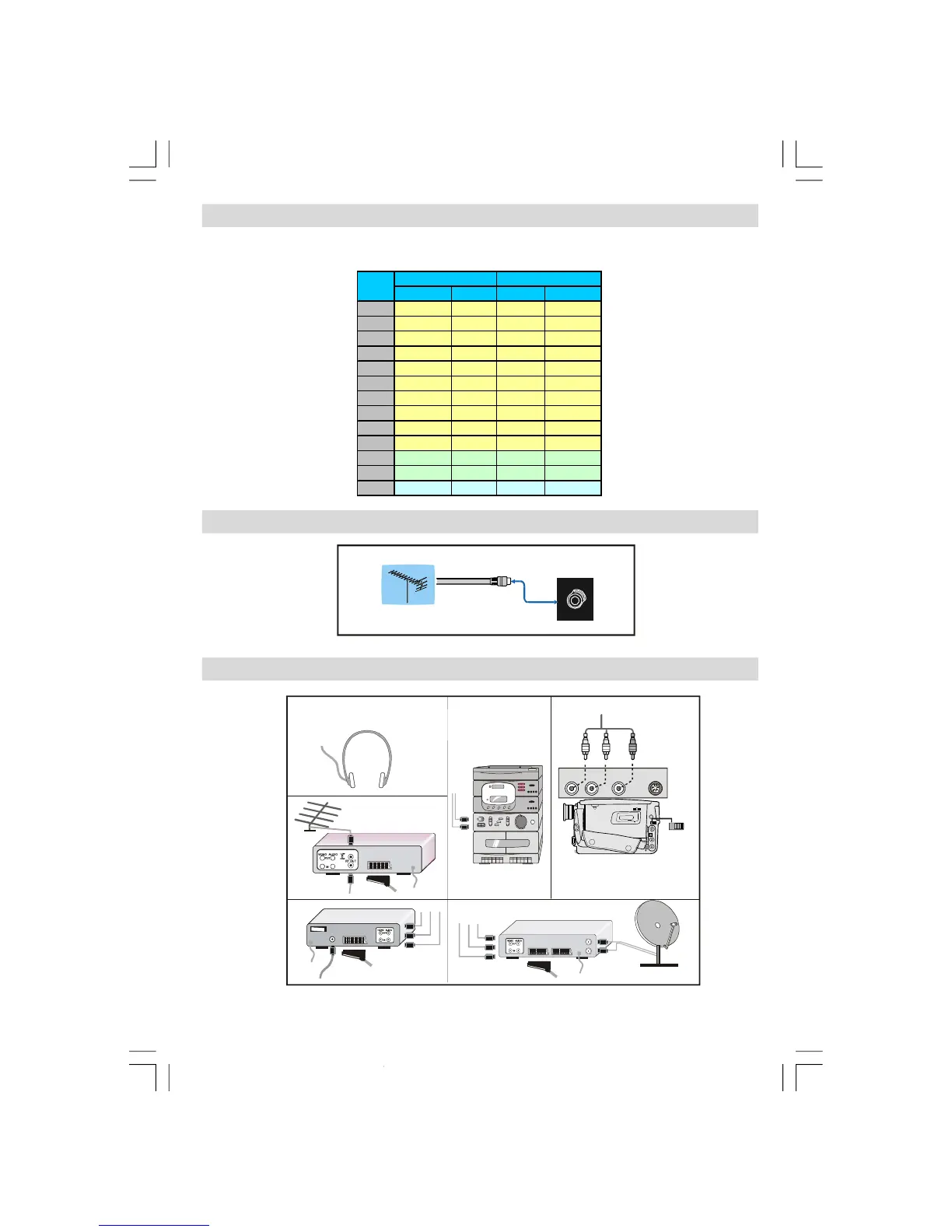

Appendix C: Connect Peripheral Equipment
ANT.IN
AUDIO IN
(R)(L)
VIDEO IN
IN
OUT
IN
OUT
HEADPHONE
AUDIO
VIDEO
SATELLITE RECEIVER
ANTENNA
CAMCORDER
VHF/UHF
75 
Round 75 ohm coaxial cable
Rear of TV
Outdoor Aerial Connection
Appendix B: Aerial Connection
Appendix A: PC Input Typical Display Modes
The display has a maximum resolution of 1360 x 768, frequency range of 56-75 Hz.
The following table is an illustration of some of the typical video display modes.
Mode
Horizontal Vertical
Hor.(kHz)
Ver.(Hz)
1
640 480 31,5 60
2
640 480 37,9 72
3
640 480 37,5 75
4
800 600 35,2 56
5
800 600 37,9 60
6
800 600 48,1 72
7
800 600 46,9 75
8
1024 768 48,4 60
9
1024 768 56,5 70
10
1024 768 60 75
11
1280 1024 64 60
12
1280 768 47,8 60
13
1360 768 47,7 60
Resolution
Frequency
